Atlas Copco LE7

Instruction book
9820 2332 04
52792D
9820 2332 02
52794D
(1)
(2)

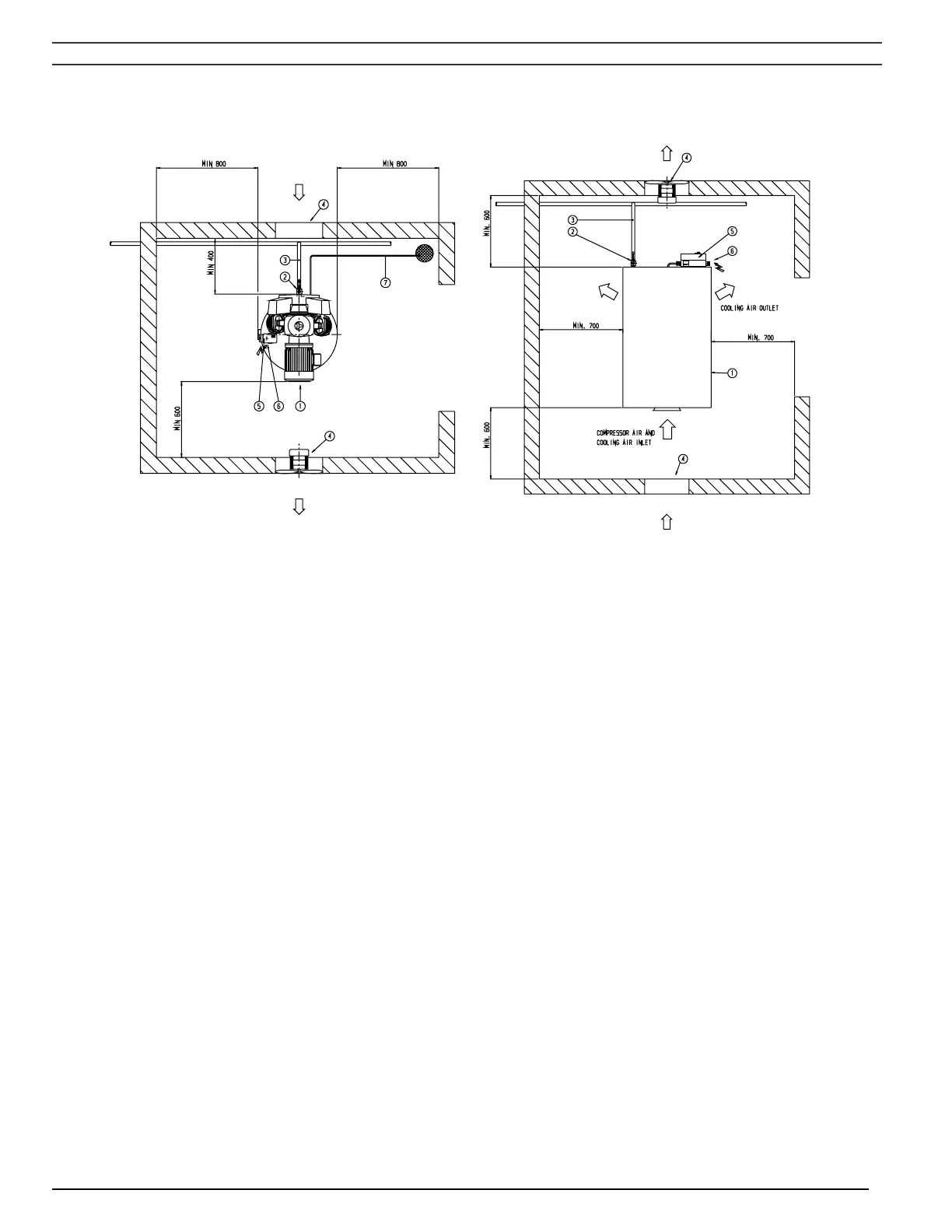

Fig. 2.23 Installation proposal for Tank-mounted
unit (vertical 250 l receiver)
Fig. 2.24 Installation proposal for Tank-mounted
unit with optional silencing hood
(1) Cooling air outlet
(2) Compressor air and cooling air inlet
2920 1585 00 - 37 -
