Atlas Copco LUM12 HRX

Operation EN LUM12 HRX/HRX-RE
8
© Atlas Copco Industrial Technique AB - 9836 9388 01

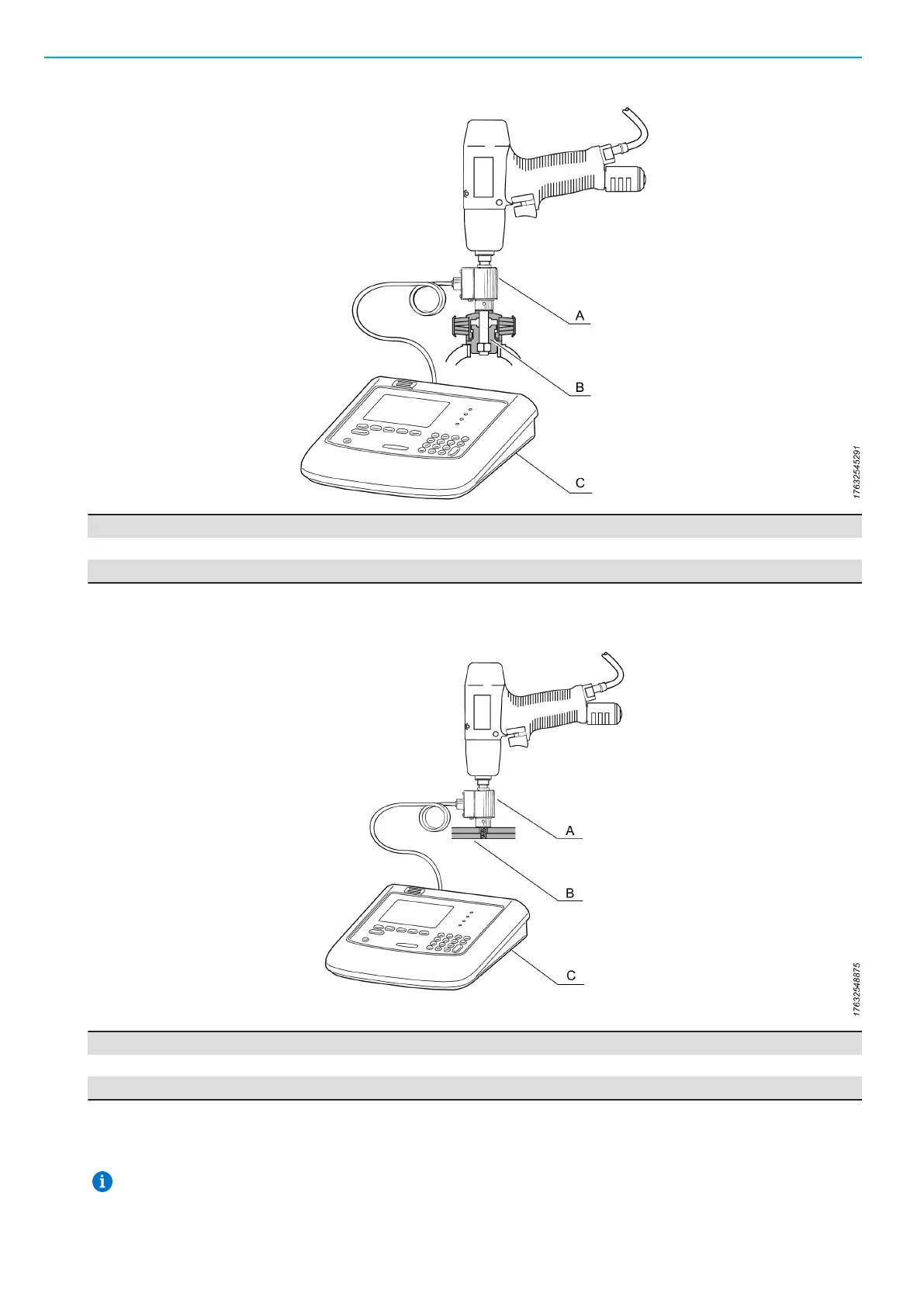

A Torque transducer
B Test joint
C Torque and angle testing instrument
■
At the assembly line
A Torque transducer
B Actual joint
C Torque and angle testing instrument
For further information, please refer to Atlas Copco main catalogue or separate leaflet.
Torque Range of the Clutch Springs
Each clutch spring gives a certain torque range. Do not adjust the torque over the maximum recom-
mendation as that might result in improper function and faster wear of the clutch.
