4
PAGE

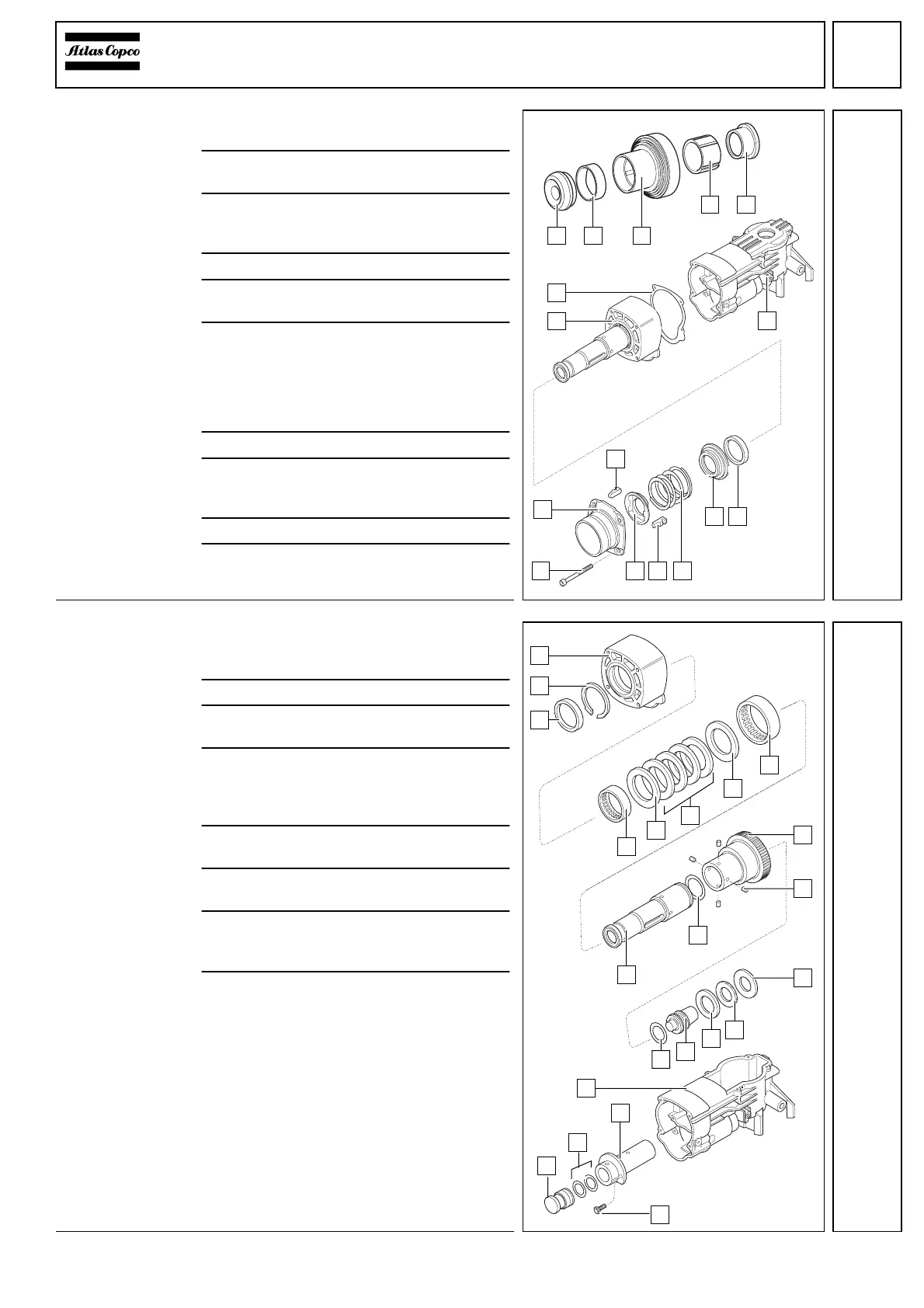

Repair Instructions No.189.03/01
PHE 45 S
Detaching the
bearing end plate
1
Lever off the cap (3) with aid of a screw-
driver.
2
Remove the distance sleeve (4) and the
sleeve (5) from the machine.
3
Remove the four screws (F). The screws
are very tight, since they were secured
with locking agent.
4
Remove the flange (E).
5
Remove the distance sleeve (6) and the
sleeve (7).
6
Remove both locking levers (C) by de-
pressing the retaining plate (D) against
resilience. Remove the retaining
plate (D).
7
Remove the pressure spring (B).
8
Remove the bearing end plate (1) com-
pletely with the spindle sleeve from the
crankcase (8).
9
Remove the gasket (2).
10
Remove the backing flange (A) and the
felt washer (9).
Dismantling
the spindle
1
Press the spindle sleeve (7) with the
spindle gear (G) from the bearing end
plate (A).
2
Lever off the seal ring (8).
3
Remove the locking ring (9) with aid of
special pliers.
4
Remove the needle bearing (B), the
disks (C and E), the cup springs (D) as
well as the needle bearing (F) from the
bearing end plate (A).
5
Remove the four pins (H) with aid of a
magnet.
6
Remove the spindle sleeve (7) with the
O-ring (6) from the spindle gear (G).
7
Remove the O-ring (N), the snap die (M),
the disk (L), the O-ring (K) and the disk (J)
from the spindle gear (G).
8
Loosen two screws (1) and remove the
cylinder (4) with the percussion body (2)
as well as the seal ring and the O-ring (3)
from the crankcase (5).
1
6
543
2
7
8
9A
B
CDF
E
C
8
D
1
6
5
4
3
2
7
8
9
A
B
C
E
G
H
F
J
K
L
M
N
9
