Repair Instructions No.189.03/01
PHE 45 S

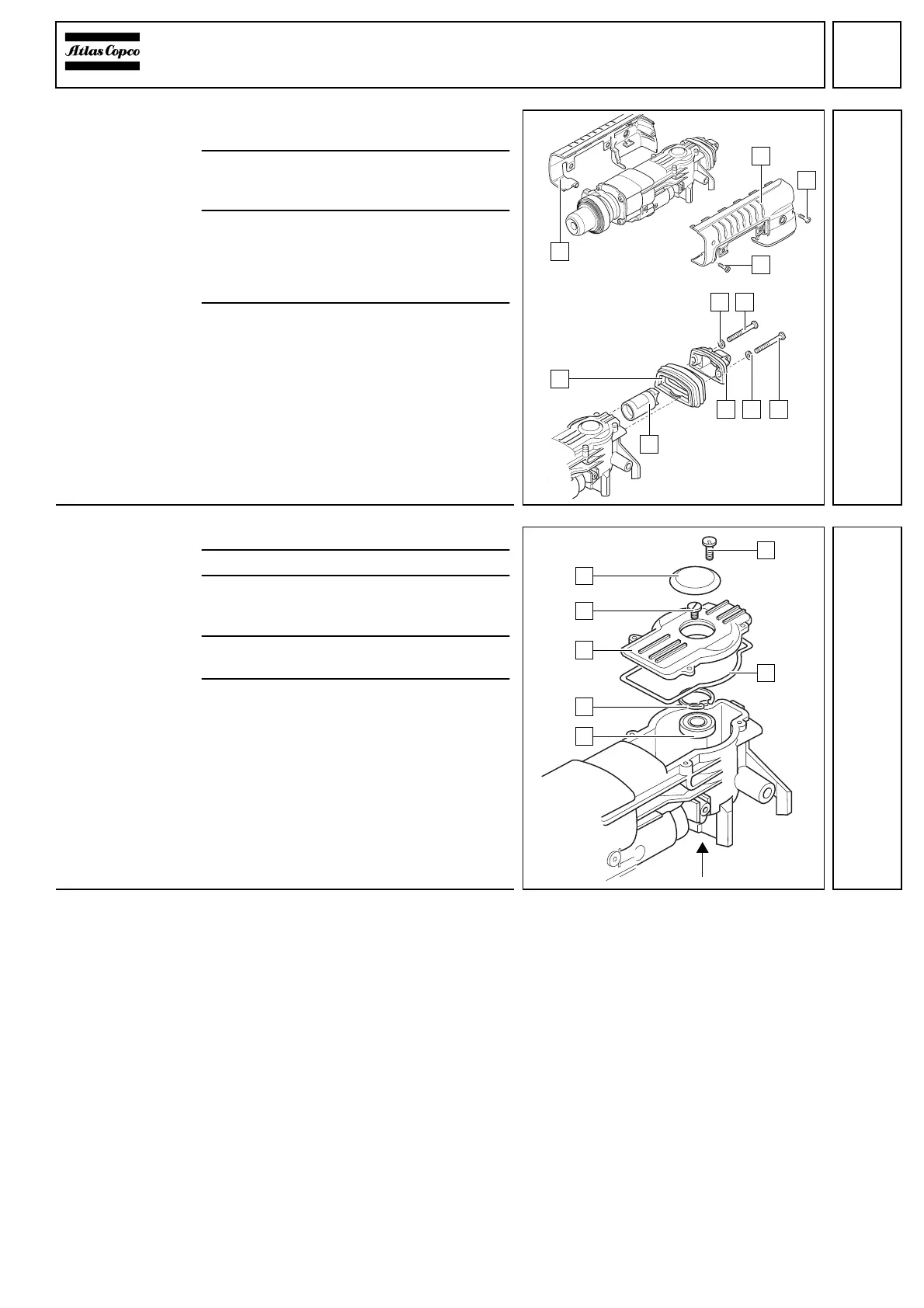

Detaching the
damping element
1
Loosen the two screws (4) and remove the
gear box insulation (2) and (3).
2
Undo both screws (5) of the handgrip
holder (7) and remove them together with
the discs (6).
3
Remove the handgrip holder (7) and the
damping element (8).
☞
Attention: Do not dismantle the damp-
ing element (8)!
4
Remove the rubber collar (1).
Removing the
crankcase top
cover
1
Lever off the cap (5).
2
Remove the four screws (6).
3
Loosen the screw (4) steadying the crank
gear from below with aid of a screwdriver
(see arrow).
4
Remove the crankcase top cover (3) and
the gasket (7).
5 Remove the locking ring (2) with aid of
special pliers and push out the ball bear-
ing (1).
1
6 5
4
3
2
7
8
4
56
6
1
6
5
4
3
2
7
7
