Function
The Main screen is the screen that is shown automatically when the voltage is switched on and
one of the keys is pushed. It is switched off automatically after a few minutes when no keys are
pushed.
Typically, 6 different main screen views can be chosen:
1.
Two value lines
2. Four value lines
3. Chart (High resolution)
4. Chart (Medium resolution)
5. Chart (Low resolution)
6. Scroll animation
Two and four value lines screens
This type of Main screen shows the value of 2 or 4 parameters (see section Inputs menu).

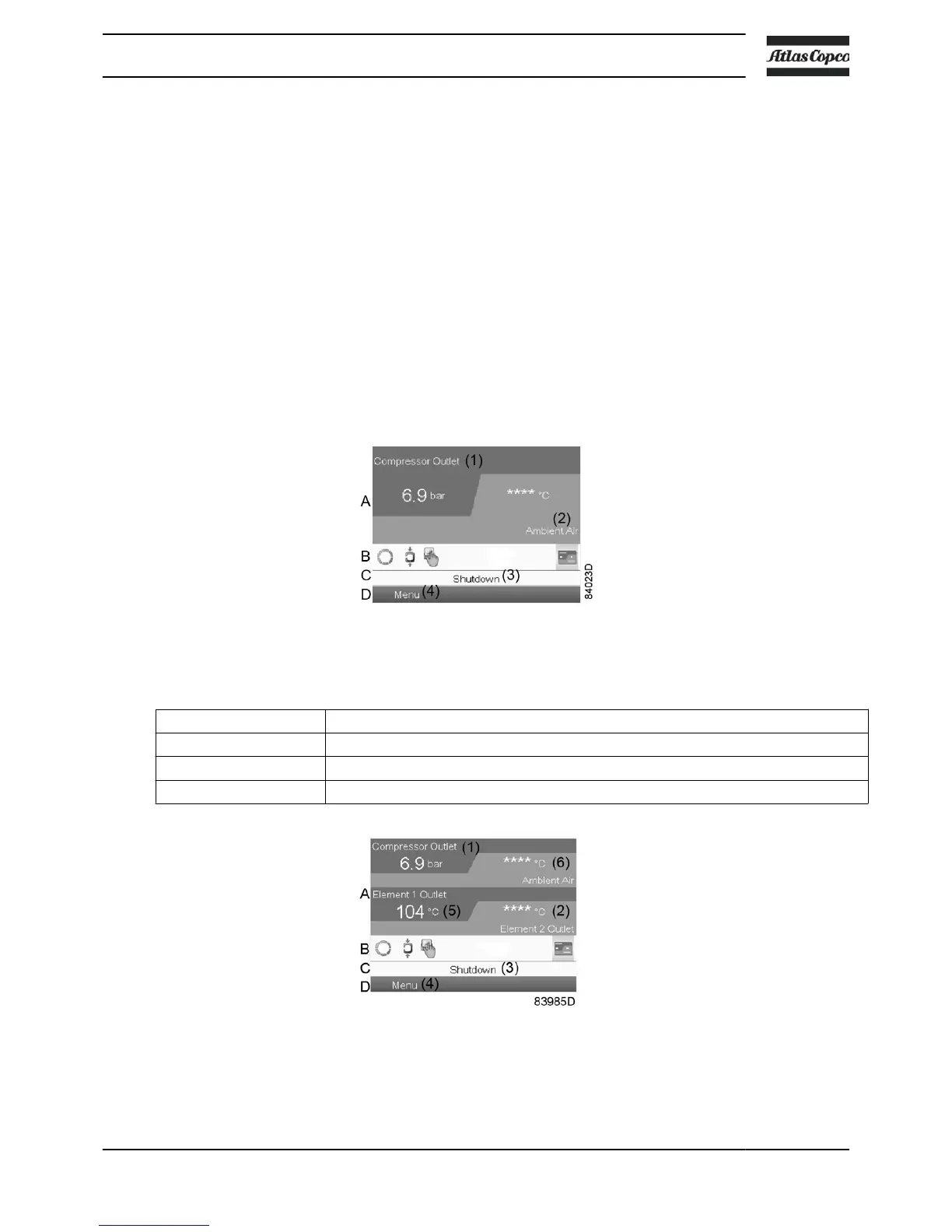

Typical Main screen (2 value lines)
Text on image
(1) Compressor Outlet
(2) Ambient Air
(3) Load, Shutdown, ... (text varies upon the compressors actual condition)
(4) Menu
Typical Main screen (4 value lines), fixed speed compressors
