Procedure
Starting from the Main screen,
•

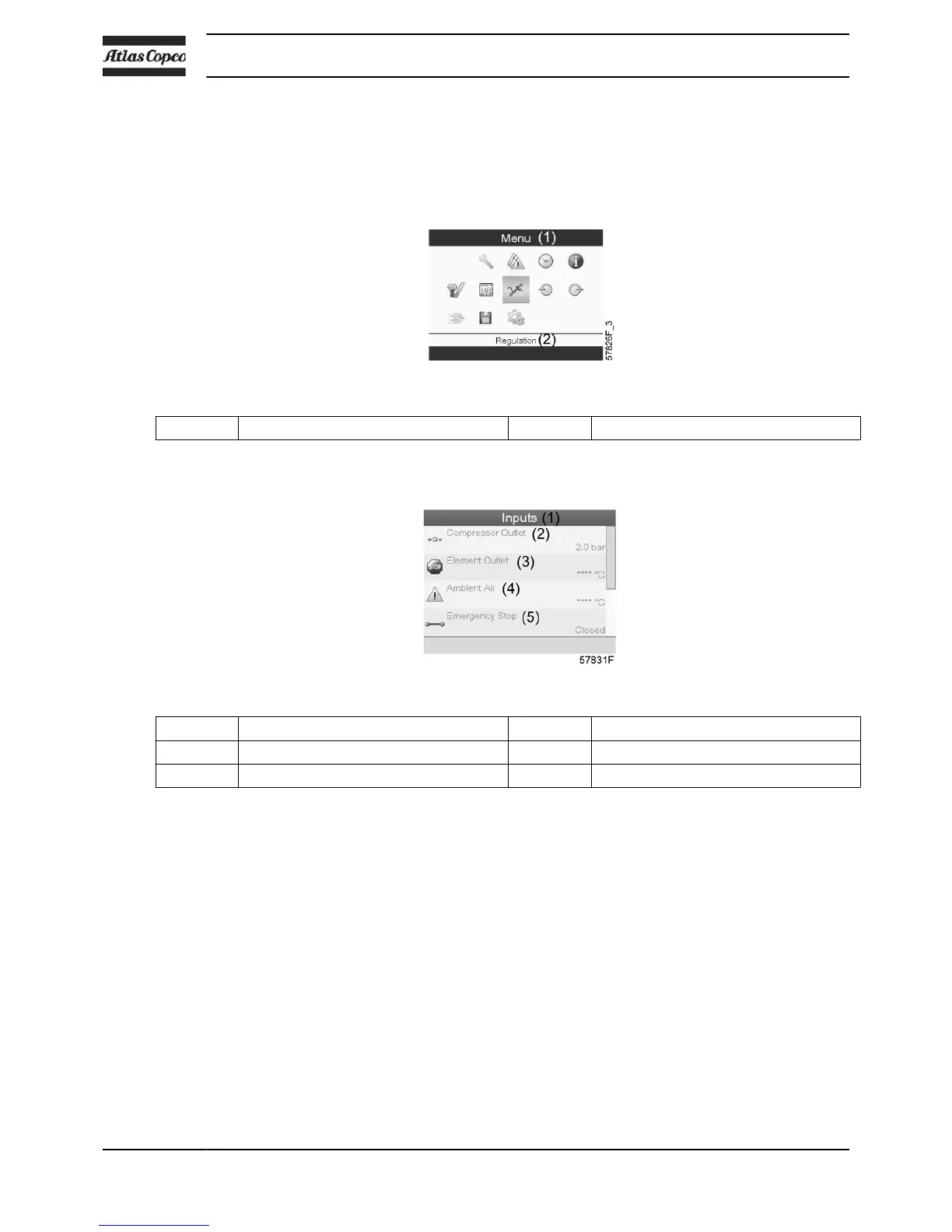

Move the cursor to the action button Menu and press the Enter key. Following screen
appears:
Text on image
(1) Menu (2) Regulation
• Using the Scroll keys, move the cursor to the Inputs icon (see above, section Menu icon).
•
Press the Enter key. A screen similar to the one below appears:
Text on image
(1) Inputs (4) Ambient air
(2) Compressor outlet (5) Emergency stop(Closed)
(3) Element outlet
• The screen shows a list of all inputs with their corresponding icons and readings.
•
If an input is in warning or shutdown, the original icon is replaced by the warning or
shutdown icon respectively (the Stop icon and the Warning icon in the screen shown above).
A small chart icon, shown below an item in the list means this input signal is shown on the chart
at the main screen. Any analog input can be selected.
Selecting another input signal as main chart signal
With the Modify button active (light grey background in above screen), press the Enter button on
the controller. A screen similar to the one below appears:
Instruction book
40 2920 7140 52
