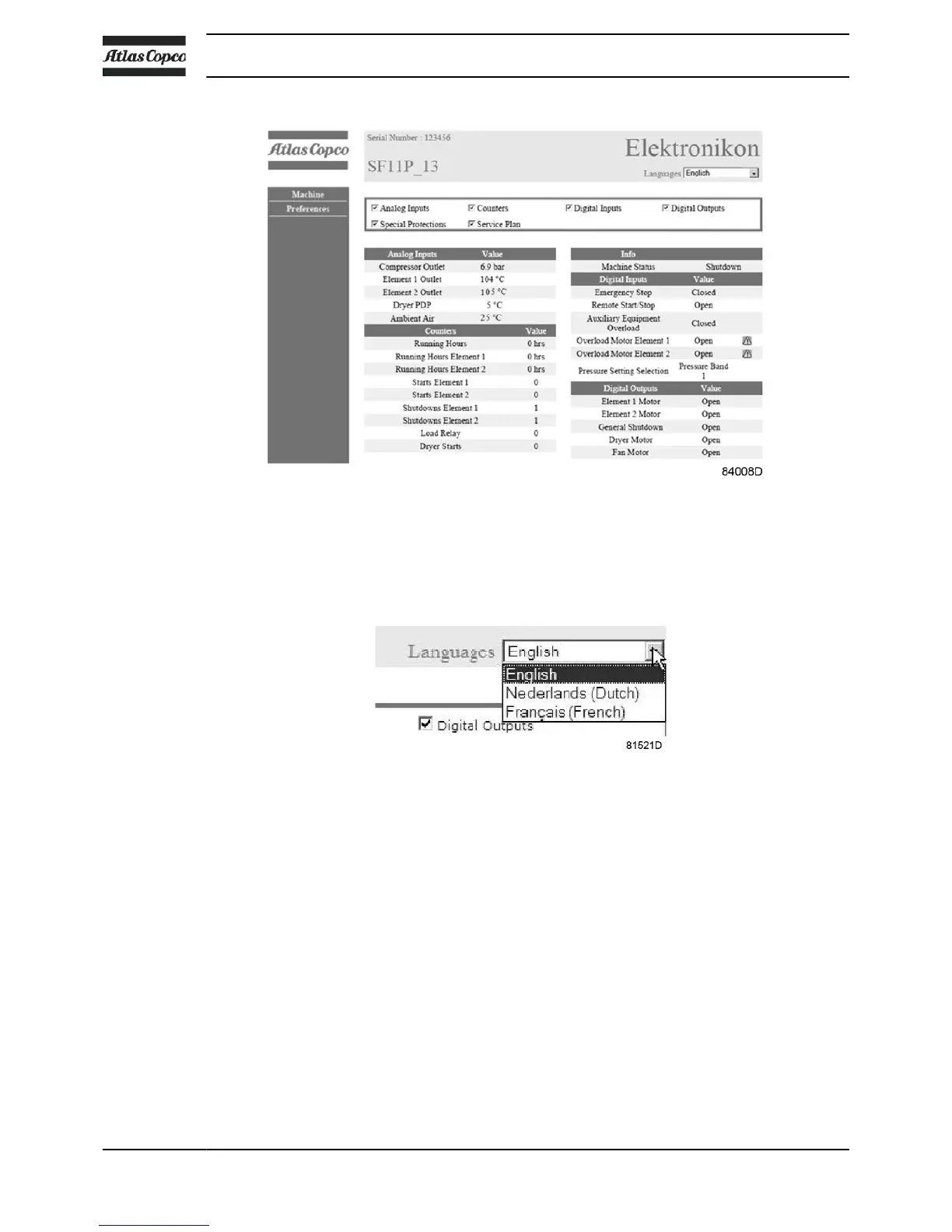

Screen shot (typical)
Navigation and options
•
The banner shows the compressor type and the language selector. In this example, three
languages are available on the controller.
Compressor settings
All compressor settings can be displayed or hidden. Put a check mark in front of each point of
interest and it will be displayed. Only the machine status is fixed and can not be removed from
the main screen.
Analog inputs
Lists all current analog input values. The measurement units can be changed in the preference
button from the navigation menu.
Instruction book
70 2920 7140 52
