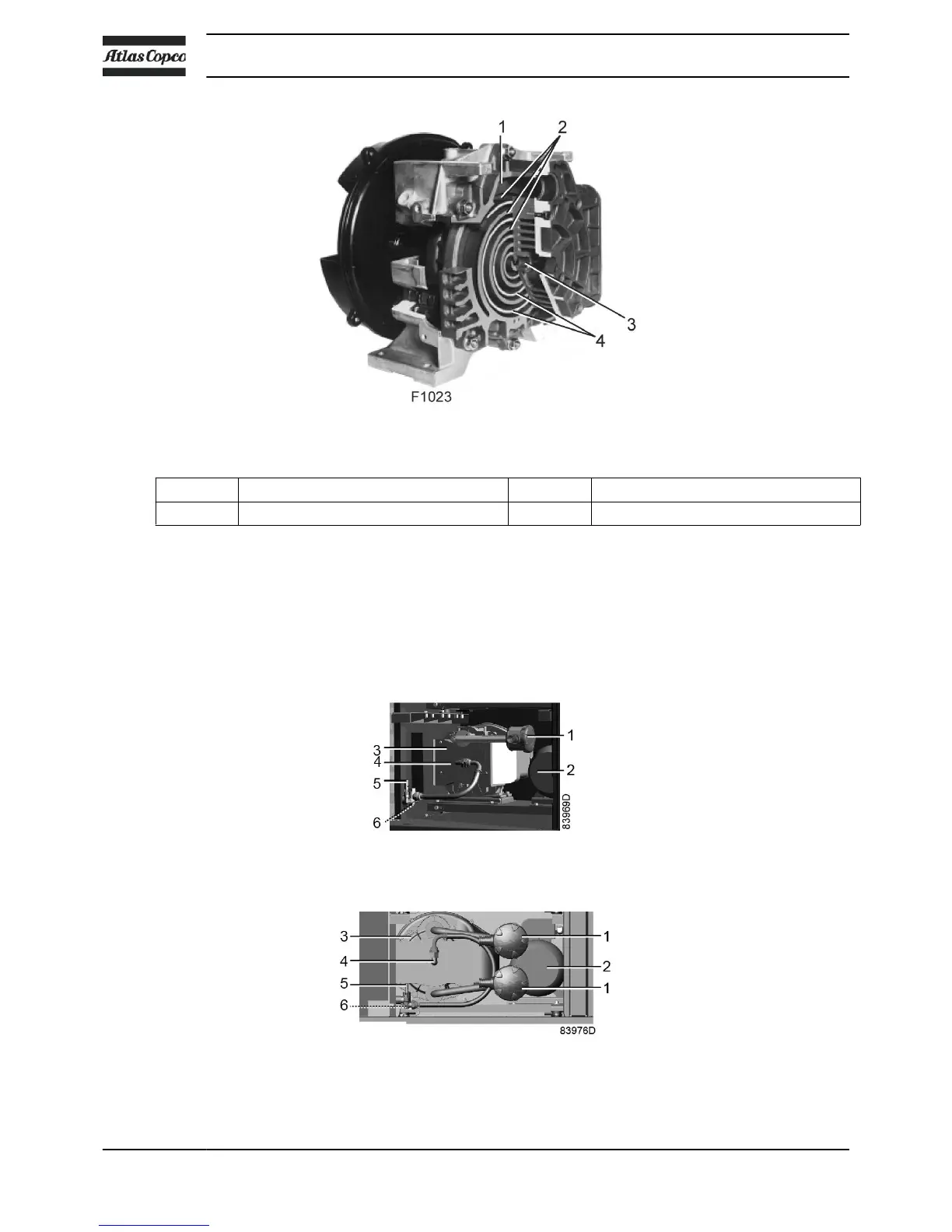

Compressor element, typical
1 Air inlet 3 Air outlet
2 Fixed scroll 4 Orbiting scroll
Compressor module
The SF 15
+
has four 3.7 kW modules, while the SF 17
+
and the SF 22
+
respectively have three or
four 5.5 kW modules.
The SFD 15
+
has four 3.7 kW modules, while the SFD 11
+
and the SFD 22
+
respectively have
two or four 5.5 kW modules.
3.7 kW compressor module
5.5 kW compressor module
