5.4 Stopping
Procedure

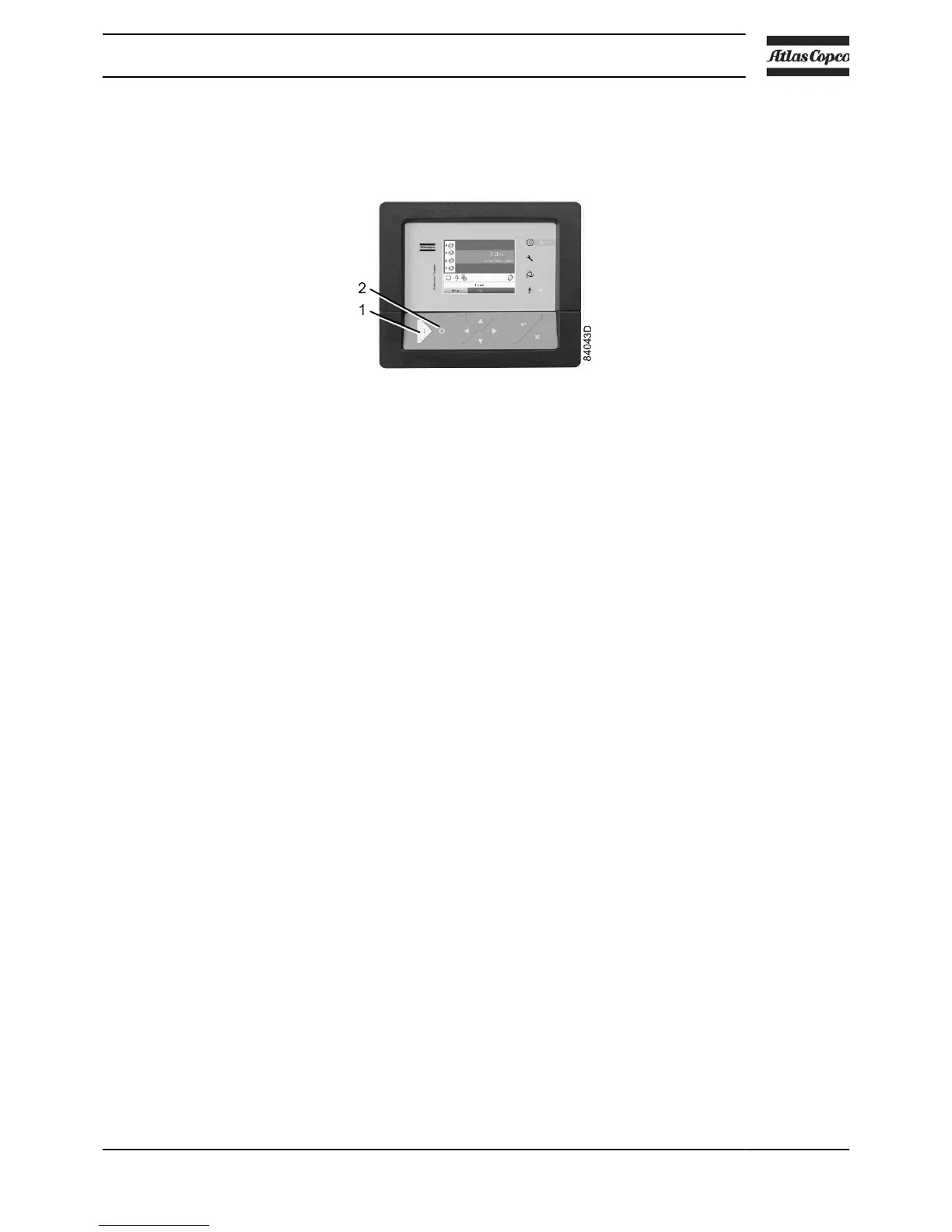

1. Press the stop button (2).
2.
Close the air outlet valve. See section Introduction.
3. Switch off the voltage.
4. Open the manual condensate drain valve.
5.5 Taking out of operation
Procedure
1. Stop the compressor and close the air outlet valve.
2. Switch off the voltage and disconnect the compressor from the mains.
3. Depressurize the compressor. Open the condensate drain valve.
4. Shut off and depressurize the part of the air net which connected to the outlet valve.
Disconnect the compressor from the air net.
5. Disconnect the condensate piping from the local condensate drain system.
Instruction book
2920 7140 52 83
