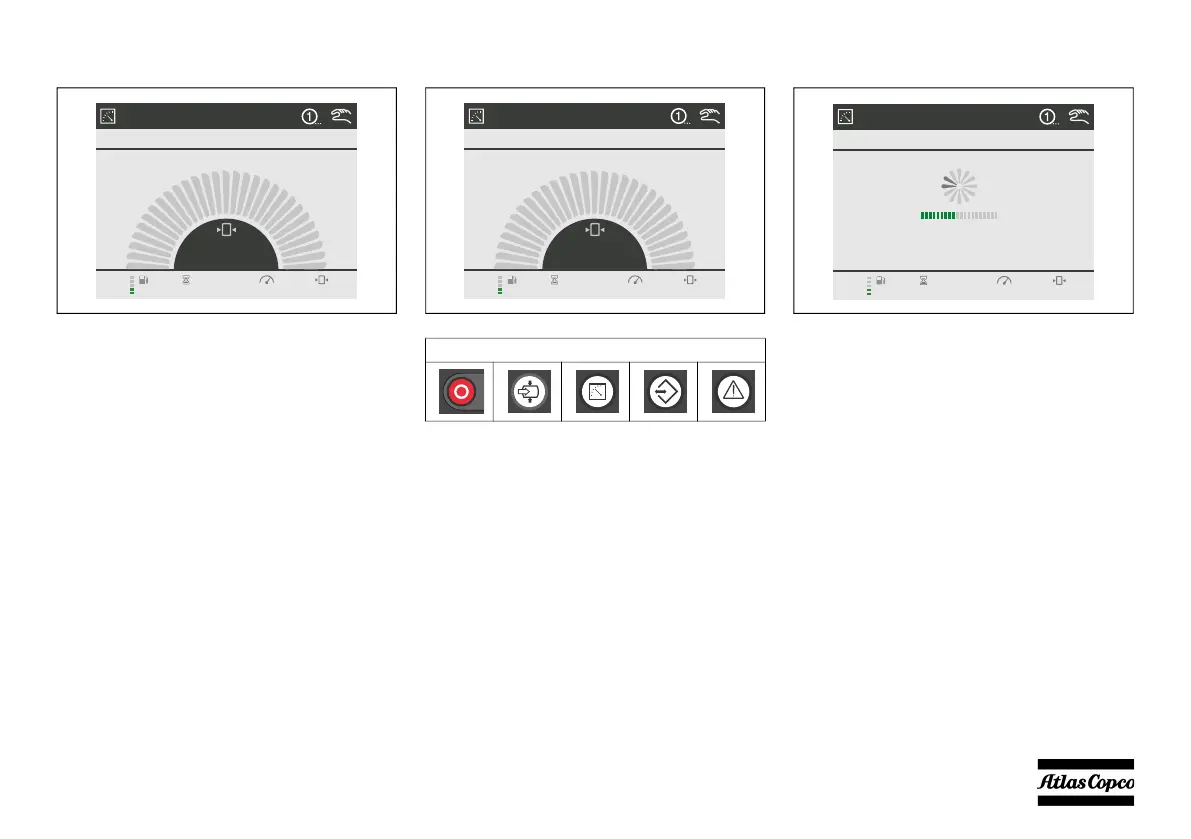

The display will change to
The engine electronics (ECU) will be powered up.
As soon as communication between compressor
controller and engine controller is established, the
machine will preheat according to the parameters of
the engine controller.
The display will change to The engine starts crancking, the display shows
The engine cranks until 800 rpm is reached.
If 800 rpm is not reached within 30 seconds, the
starting procedure is cancelled and the engine will
rest for some time. (Resting time depends on cranking
time).
MAIN VIEW
READING ENGINE DATA
0.0
--RPM 0.0bar1286h
40%
Active Buttons
MAIN VIEW
ENGINE PREHEATING
0.0
--RPM 0.0bar1286h
40%
800RPM
324RPM
0RPM
MAIN VIEW
ENGINE CRANKING
324RPM 0.0bar1286h
40%
