8
PennEngineering • www.pemnet.com

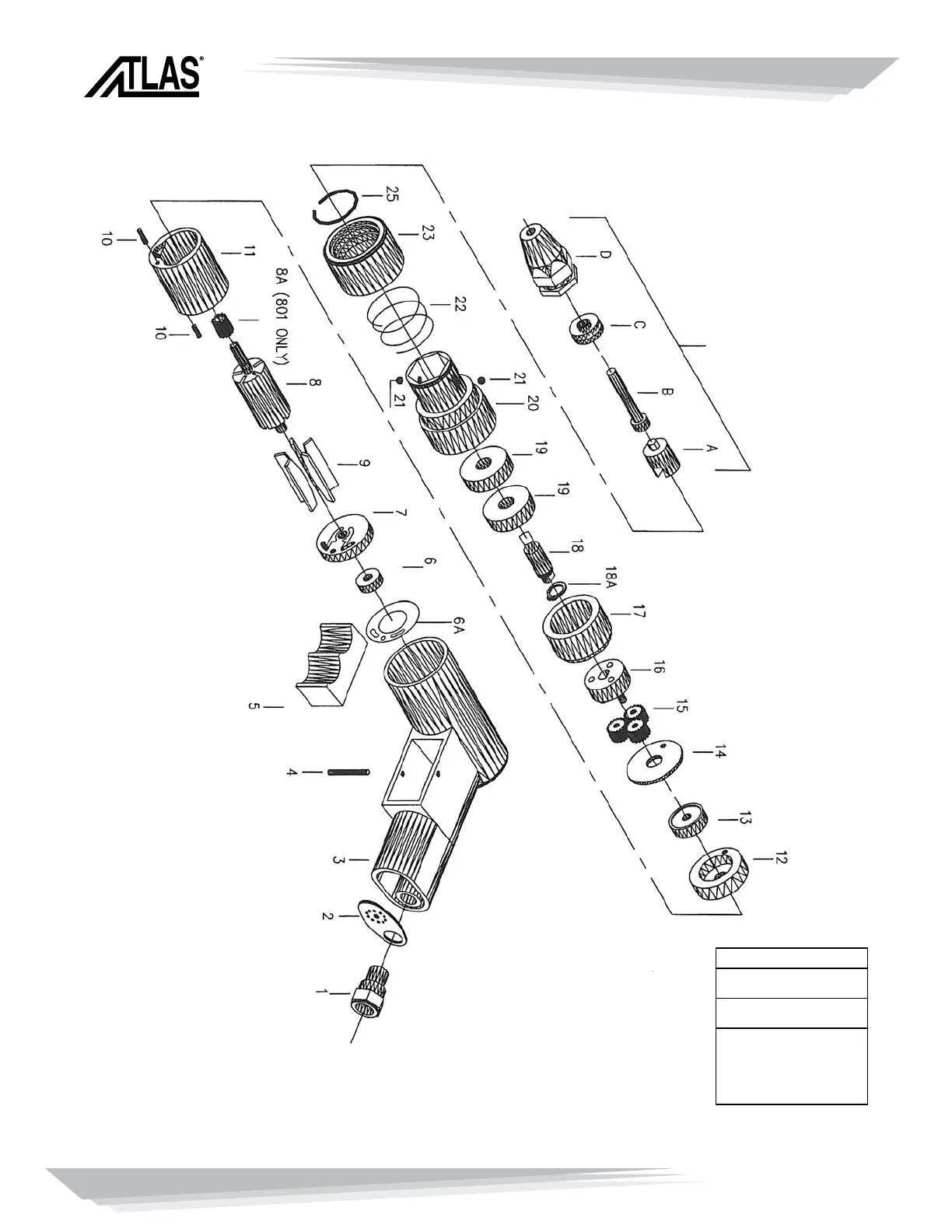

MODEL 801 / 802
NOSE PIECE CONFIGURATIONS
SEE CHART
SPECIFICATIONS
FREE SPEED: 3000 (RPM)
801 ONLY
FREE SPEED: 1500 (RPM)
802 ONLY
AIR PRESSURE: 90 PSI
AIR INLET: 1/4” (NPT)
AIR CONSUMPTION: 5CFM
THREAD SIZE: M3, M4
HOSE SIZE: 3/8” (9.5 MM)
801: 4-40, 6-32, 8-32
3MM, 4MM
802: #1024, 1032, 5MM
