INSTALLATION INSTRUCTIONS
AH SERIES LOUDSPEAKERS
8", 12", AND 15"
6
Assure that the AH speaker can be mounted in a manner that the sound pattern will be directed in the
desired direction without any physical interference. Note that the AH speaker mounting bracket allows the

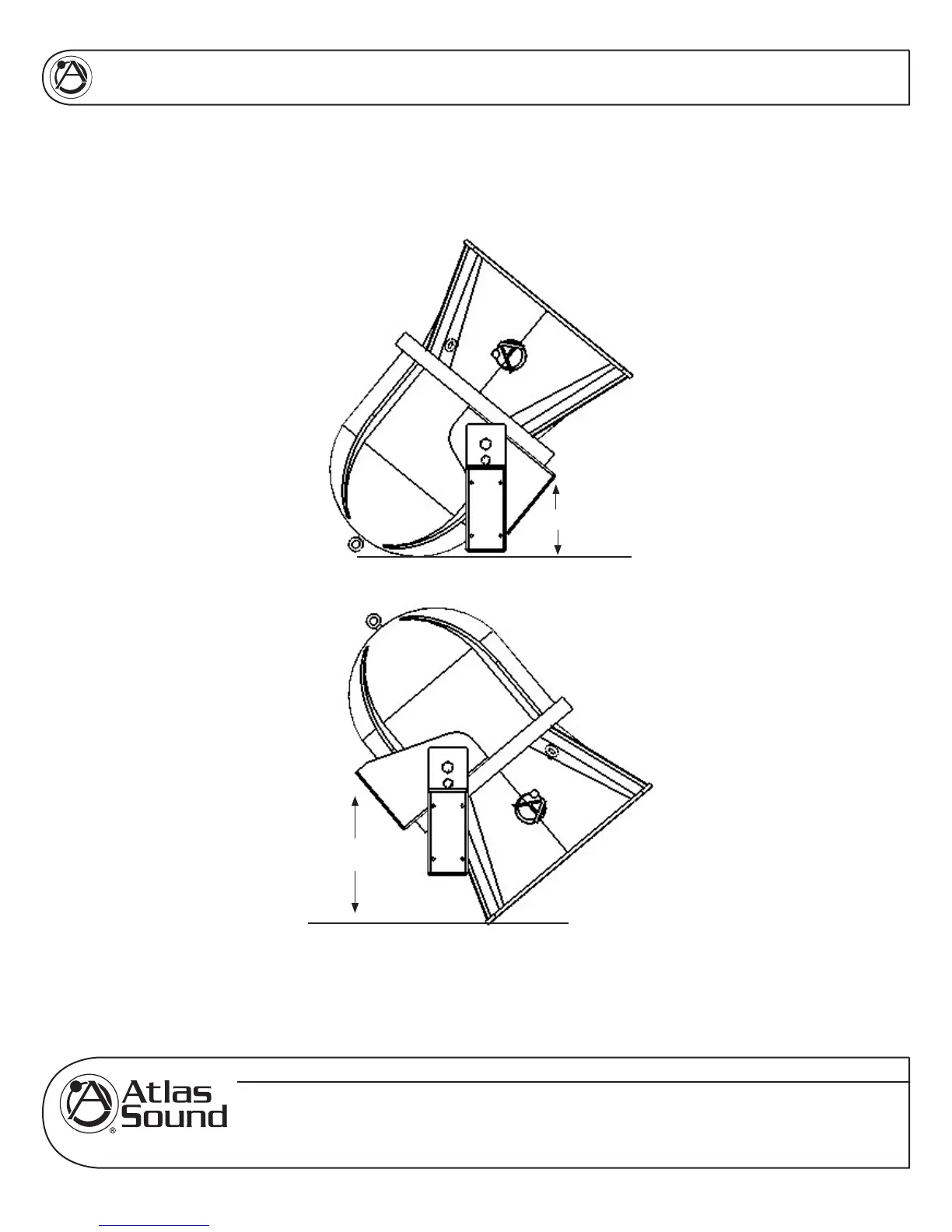

speaker to be tilted in excess of 50 degrees in either direction. See illustration below.
Weep-holes (for drainage) (AH5040S, AH9040S, and AH6565S 15" models only) are located on the same
side as the input connectors. If the speaker is tilted above parallel to the ground, the speaker should be
installed with the weep holes down for water drainage.
50˚
50˚
