Quick Start Steps 13
Cyclops

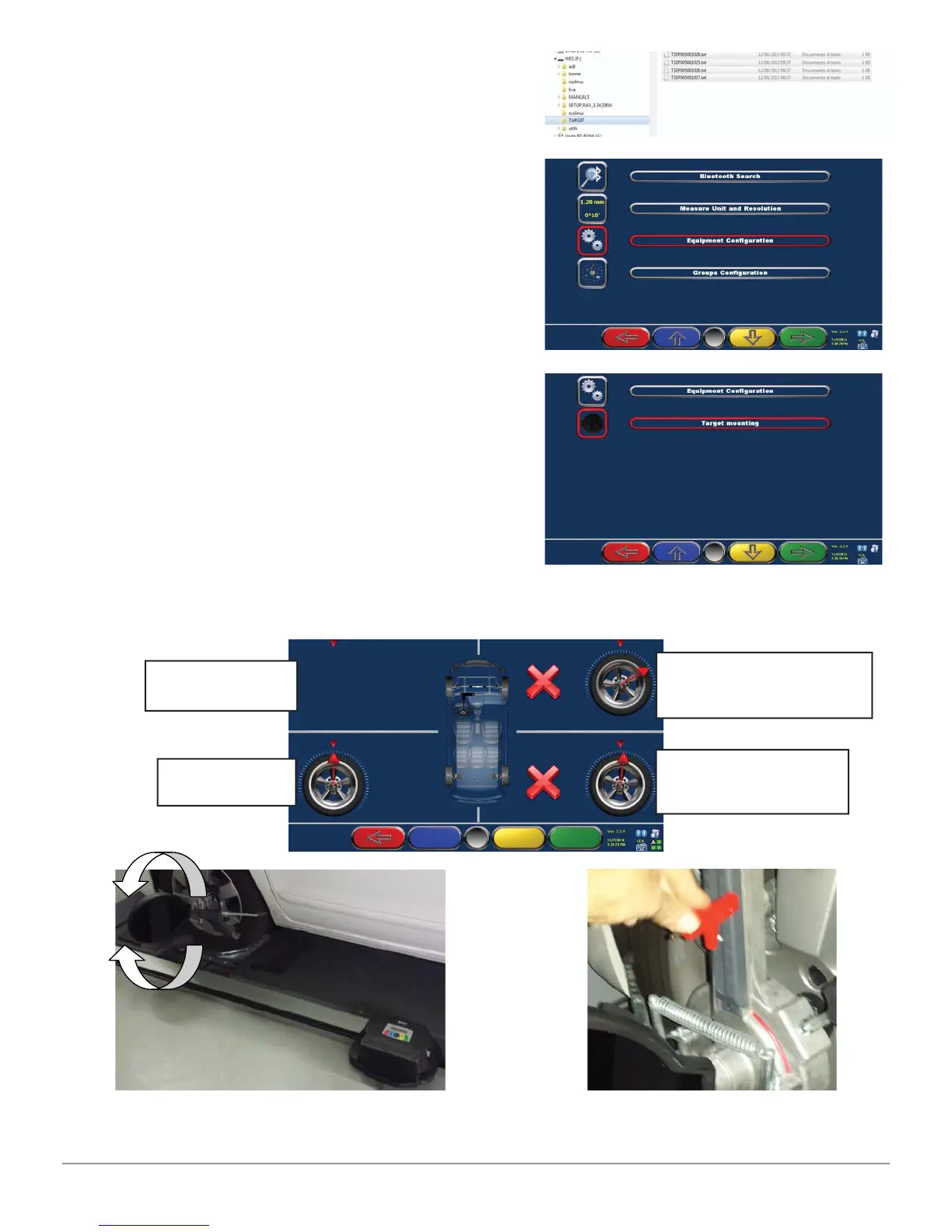

This is an example of a “Recovery” key that
came with the wheel alignment containing
the TARGET folder with fi les.
After pressing “F1” from the target code
page, the program goes back to show the
page here displayed; move the cursor to
“Equipment Confi guration” and press “F4”.
Press “F2” or “F3” (blue or yellow) to move
the cursor to “Target Mounting”.
Press “F4” to continue.
We are ready to record and lock the targets in
the clamps in their normal operating position.
Make sure that measuring heads are
turned on.
Check the Targets are fully inserted in
clamps.
With the pin slightly braked, turn the target
until you fi nd the correct position.
THE TARGET WHEN REACHED THE
RIGHT POSITION MUST BE LOCKED
Target close to the
correct position, rotate
slowly and lock
Target far from the right
position, please continue
to rotate the target
Target in right
position – lock
Target out of
position or absent
