Instruction Manual - RIV938
RIV938 AND RIV938S

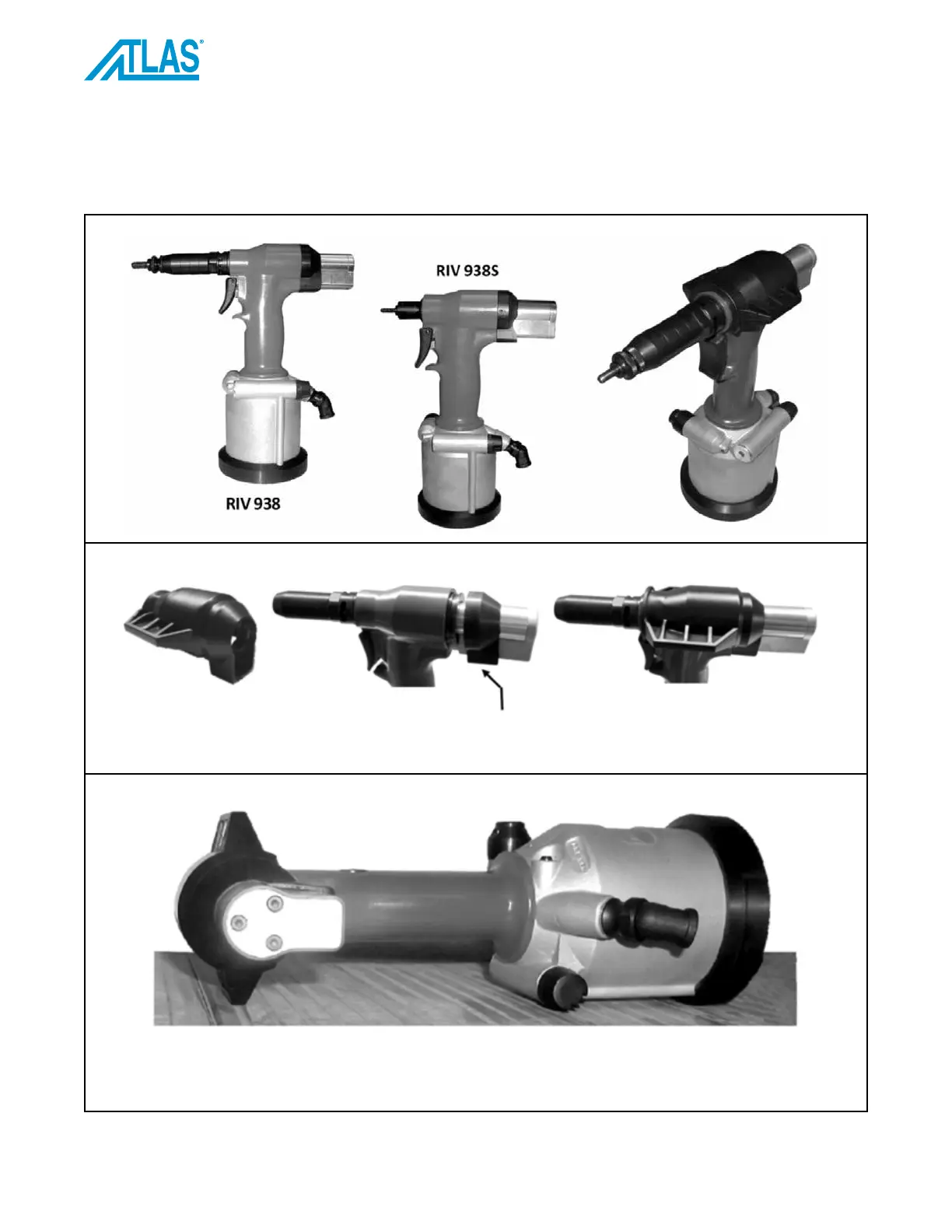

PROTECTIVE WING
(optional accessory)
Protective wing
Remove standard protection
Install the protective wing into the
standard protection housing
T
ogether with the rubber base, it creates a support for the tool, avoiding any contact of the surface with
the metal part of the tool body
.
3
5
Table of Contents
Operating Instructions
1
Protective Wing
4
General Information
5
Warranty
5
Technical Data and Features
6
Special Extended Head
7
Nose Assemblies and Standard Accessories
7
Optional Tooling
8
Nose Assembly Part Numbers
8
Head Ring Nut
8
Special Head
8
Kit for Blind Threaded Insert
9
Kit Composition
9
Nose Assembly Part Number
22
Spare Parts
32
Quick Kit Complete with Spring
34
Toothed Ring Nut Assembled on the Tool
34
Motor Unit Spare Parts
35
Complete Motor Kit View
35
Ordering Spare Parts
35
General Warnings
36
Intended Use
36
Identification/Serial Number
37
Handling
37
Storage
37
Connections
37
Operators
38
Motor Screwing Rotates Nonstop
38
Motor Unscrewing Does Not Rotate
38
Tool Preparation and Screw Replacement
39
To Unscrew the Kit Holder Quick Ring
39
Oil (Force) Pressure Regulation Settings
40
Cleaning
43
Refilling the Hydraulic Circuit with Oil
43
Parts Subject to Wear
43
Ordinary Maintenance
43
Dismantling Instructions
46
Requesting Assistance
46
