Seating of the burner and lid in the boiler
Gasification boiler with an adaptation
for a burner in the top door
D10PX, PX10, D15PX, PX15, D20PX,
PX20, D25PX, PX25 pellet boilers
D14P, P14, D15P, P15, D20P, P20, D21P,
P21, D25P, P25 pellet boilers
DxxP Compact, Pxx Compact,
Combined wood or lignite gasification
boiler in combination with a DCxxSP(X)/
(EP), CxxSP, ACxxSP pellet burner

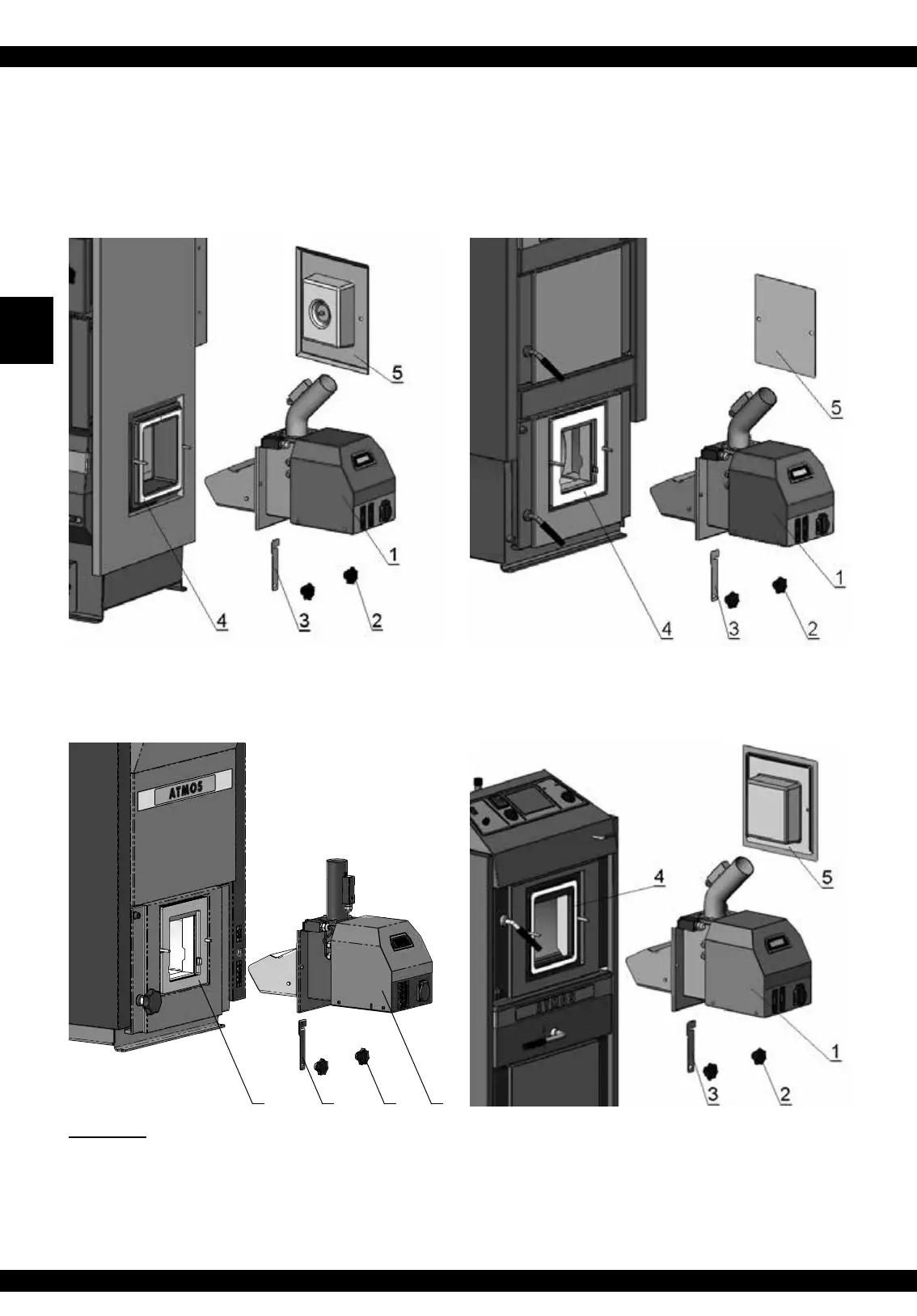

Legenda:
1. A25 burner
2. Decorative nut M8
3. End switch stop
4. Sealing
5. Lid
