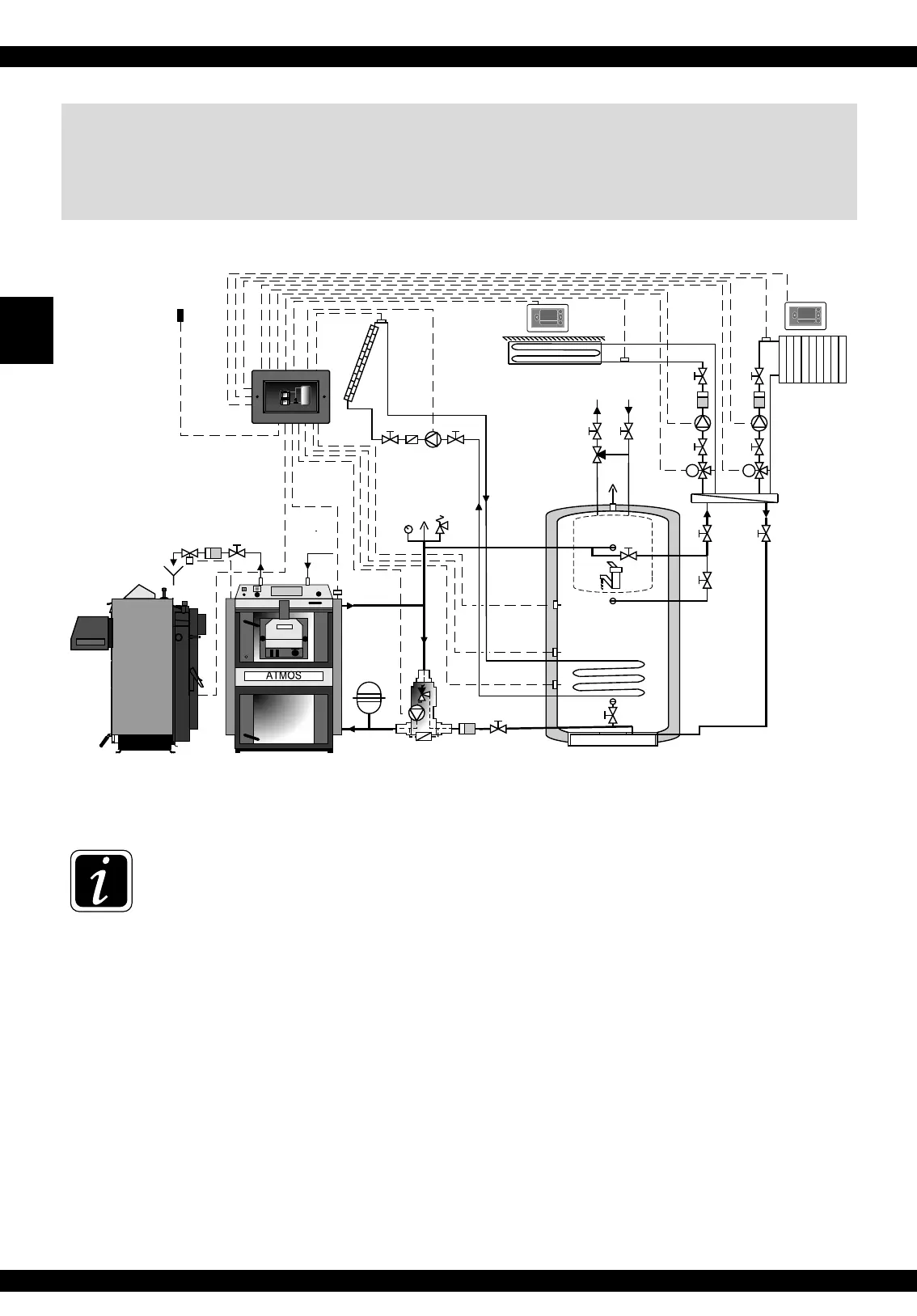

19. Connection of boilers DCxxS(X), CxxS(T), ACxxS, KCxxS,
DCxxRS with built-in burner in upper doors and with
ACD 03/04 electronic regulation
INFO - If using electronic regulation ACD 03/04, we do not connect any set or other sensors
in the boiler.
The operation of the burner, fan and solar is controlled directly from the ACD 03/04
regulation.
System configuration of parameters: S6 = 1, S14 = 0, S15 = 1
M M
MAX
60°C
AF
KVLF
WF (Tk)
AGF
(Tsv)
boční pohled
side view
PF = Tv
VF1
VF2
filtr
filter
ventil
valve
Laddomat 22
odpad
outlet
přívod
supply
2 - 6 bar
10 - 15 °C
ventil / valve
TS131 - 3/4ZA
(WATTS STS20)
tlakoměr,
přetlakový ventil,
odvzdušňovací ventil
pressure gauge,
safety valve,
deaerator
tlaková
expanzní
nádoba
pressure
expansion
vessel
A25
A25
vyrovnávací nádrž
buffer tank
500 - 1000 l
ventil
valve
ventil
valve
ventil
valve
obytné místnosti
habitable rooms
mísící ventil
mixing valve
čerpadlo
pump
ventil
valve
filtr
filter
bojler TUV
DHW boiler
ARU5/10/30
22,5
°c
ARU5/10/30
22,5
°c
KSPF
FPF = Ts
ATMOS
ACD
