Atmos A25 - Connection of Boilers DCxxS, CxxS(T), ACxxS, KCxxS, DCxxRS with Built-in Burner in Upper Doors with Buffer (Accumulation) Tank for Regulation of the Burner based on Sensors TS and TV and Control of Boiler Pump based on TK Sensor

Operation and maintenance manual - EN
EN
www.atmos.cz
EN-25

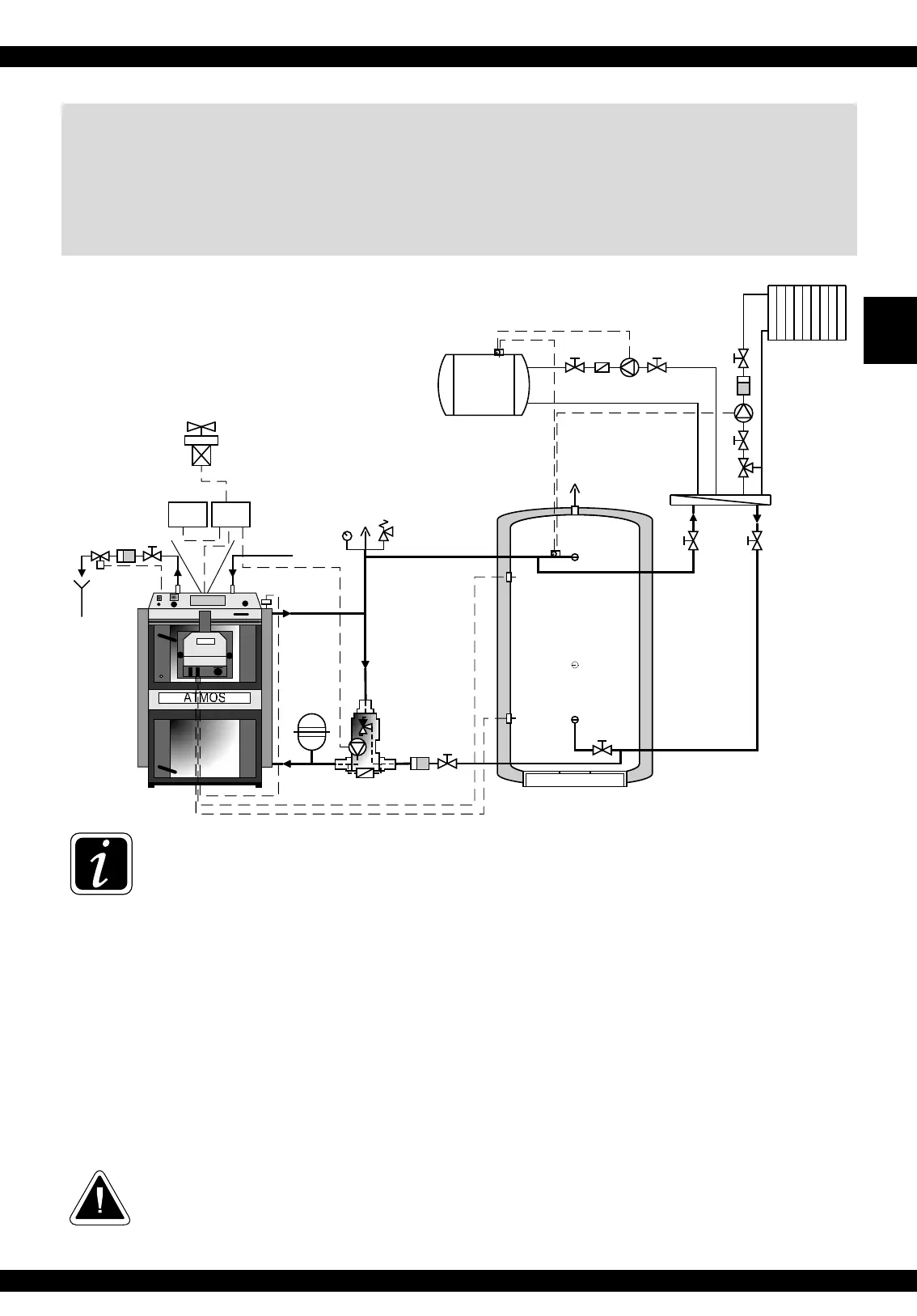

18 . Connection of boilers DCxxS, CxxS(T), ACxxS, KCxxS, DCxxRS
with built-in burner in upper doors with buffer (accumulation)
tank for regulation of the burner based on sensors TS and TV
and control of boiler pump based on TK sensor
INFO - Boilers with modification for the pellet burner are from 1st of March equiped from
the production with two AD03 modules, changeover switch (I/0/II), boiler temperature sensor
TK (KTF 20), pump thermostat - 70 °C and with the outlet for the pump in boiler circuit.
The TK sensor placed in boiler pocket (from production), sensors TV and TS (boiler
accessory from 1.3.2019) on the accumulation tank, all connected directly to the burner. The
(2x AD03) modules are inserted under the instrument hood of the boiler and is connected
to the terminal board of the boiler. Both AD03 modules control the exhaust fan of the boiler
and the pump in the boiler circuit.
Boilers version 2016 has only one module AD02 to control exhaust fan.
Required accessories (not part of the burner): nothing needs to be bought
For boilers version 2016 is necesary to buy two KTF 20 sensors (TV and TS sensores)
System configuration of parameters: S6 = 4, S14 = 13, S15 = 2
(reserve R - parameter S6 controls the boiler fan, reserve R2 - parameter S14 controls the boiler pump)
WA R N I NG – for boilers DCxxSP(X)/(EP), CxxSP, ACxxSP, KCxxSP and boilers with
a burner built in the upper doors, it is not possible to use the function of controlling solar
heating directly from the pellet burner.
odpad
outlet
Ts
Tv
Modul
AD03
termostat
thermostat
40°C - 60°C
MAX. 60°C
přívod
supply
2-6 bar
10-15°C
ventil / valve
TS131 – 3/4ZA
(WATTS STS20)
filtr
filter
mísící ventil
mixing valve
čerpadlo
pump
obytné místnosti
haritable rooms
tlakoměr, přetlakový ventil,
odvzdušňovací ventil
pressure gauge, safety
valve, deaerator
tlaková
expansní
nádoba
pressure
expansion
vessel
ventil
valve
ventil
valve
ventil
valve
filtr
filter
ventil
valve
bojler TUV
DHW boiler
ventil
valve
ventil
valve
ventil
valve
ventil
valve
vyrovnávací nádrž
buffer tank
500 - 1000 l
odvzdušňovací ventil
deaerator
odtahový ventilátor
extraction fan
Tk
A25
Laddomat 22
Modul
AD03
