EN
www.atmos.cz
38-EN
Operation and maintenance manual - EN

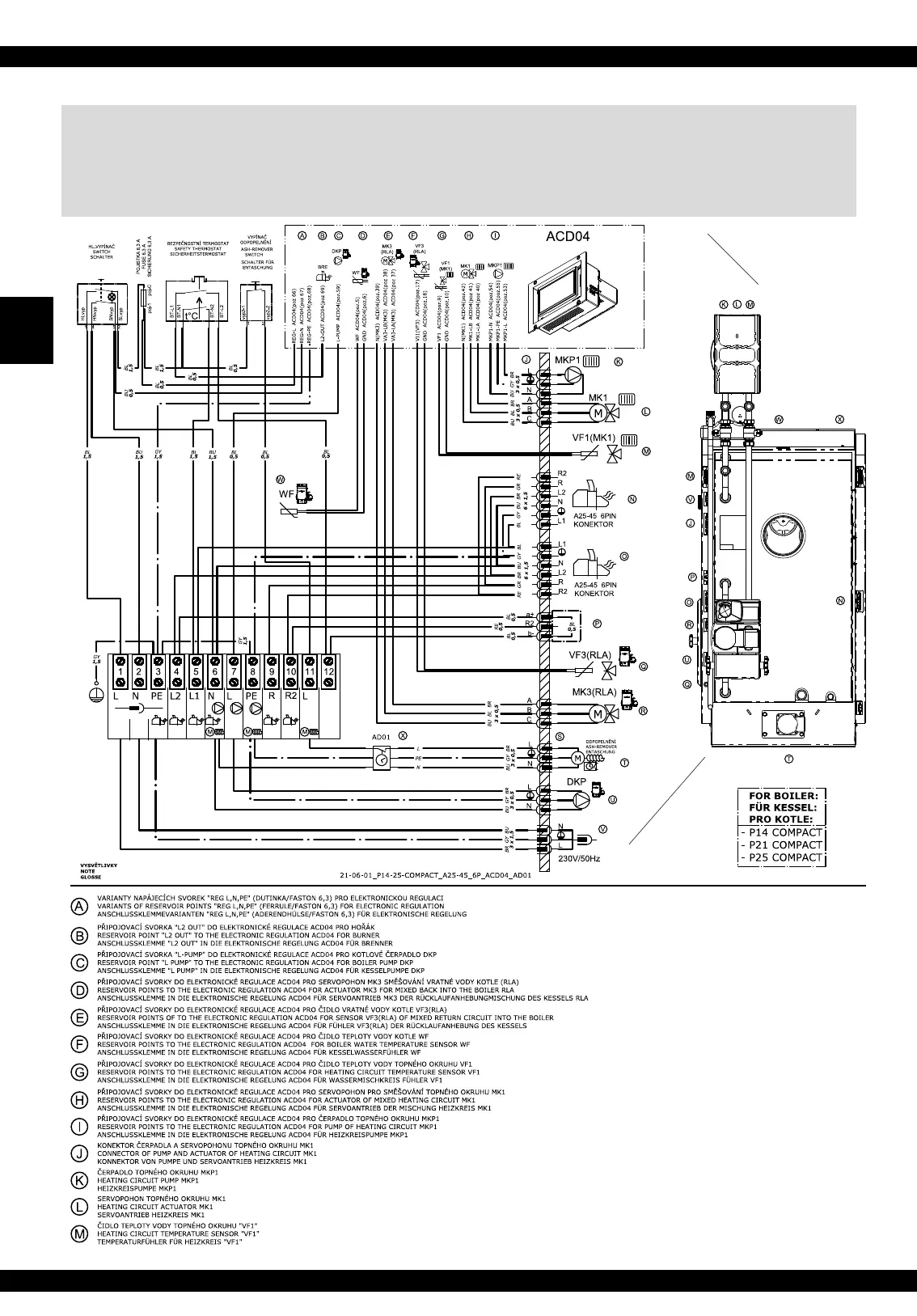

31. Electric wiring diagram of the P14 Compact, P21 Compact,
P25 Compact boilers - model with a 6-pin connector, with
ACD 04 controller and with pneumatic burner cleaning
