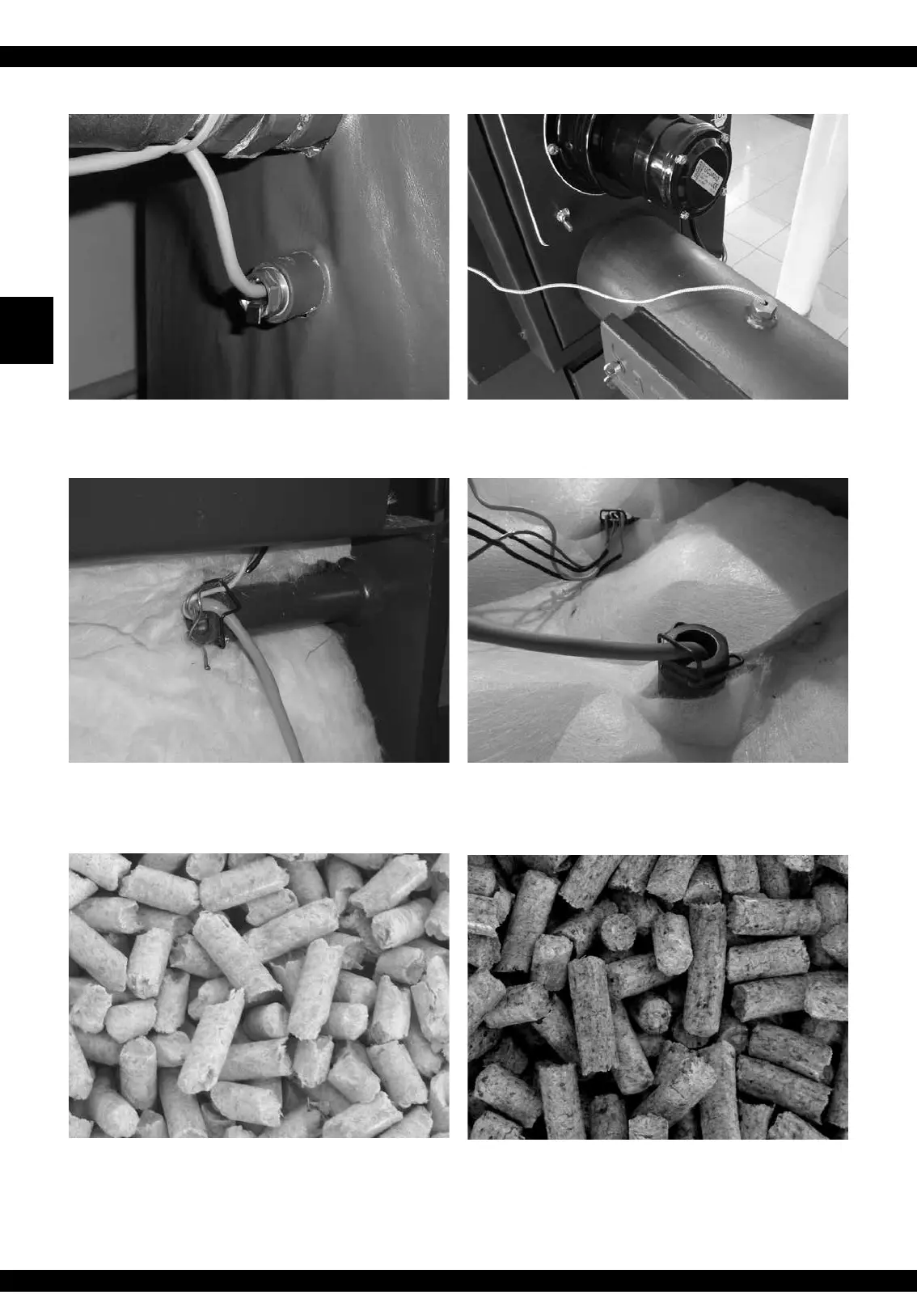

Fig. 13 – View of the water temperature sensor in
the pocket of the accumulation tank (TV and TS)
Fig. 15 – View of the water temperature sensor
TK in the boiler pocket - DCxxSP(X)/(EP),
CxxSP,
ACxxSP
or boilers with burner in the upper door
- DCxxS(X), CxxS(T), ACxxS, KCxxS, DCxxRS
Fig. 14 – View of the flue gas sensor TS or TSV in
the flue gas duct pocket
Fig. 16 – View of the water temperature sensor
TK in the boiler pocket, DxxP, Pxx types
Fig. 17 – High-quality wooden pellets – white
without black dots (bark)
Fig. 18 – Poor-quality wooden pellets – dark with
bark (with black dots)
