Atomos Ninja-2 Quick Start Guide

Tag for Favourite: Touch once to set the IN point. Touch again to set OUT point.
Tag for Reject: Touch once to set the IN point. Touch again to set OUT point.
Master Caddy Docking Station
To access and edit your recorded material:
Connect the Master Caddy Docking Station to a Mac
®
or Windows
®
editing workstation via USB 2.0 and/or USB 3.0 compatible port/s.
When using USB, you may also need to connect power to the
Docking Station using the included USB power cable and connecting it to
a USB 2.0 port. Try this if you encounter problems.
Ready to edit:
Next, eject the Master Caddy from the Ninja-2 and insert it into the Dock-
ing Station. After a short wait your recorded video will become accessible
as a standard external disk (Native ExFAT / FAT32 formatted drive/s also
supported).
Atomos Ninja 2 ~ QuickStart Guide

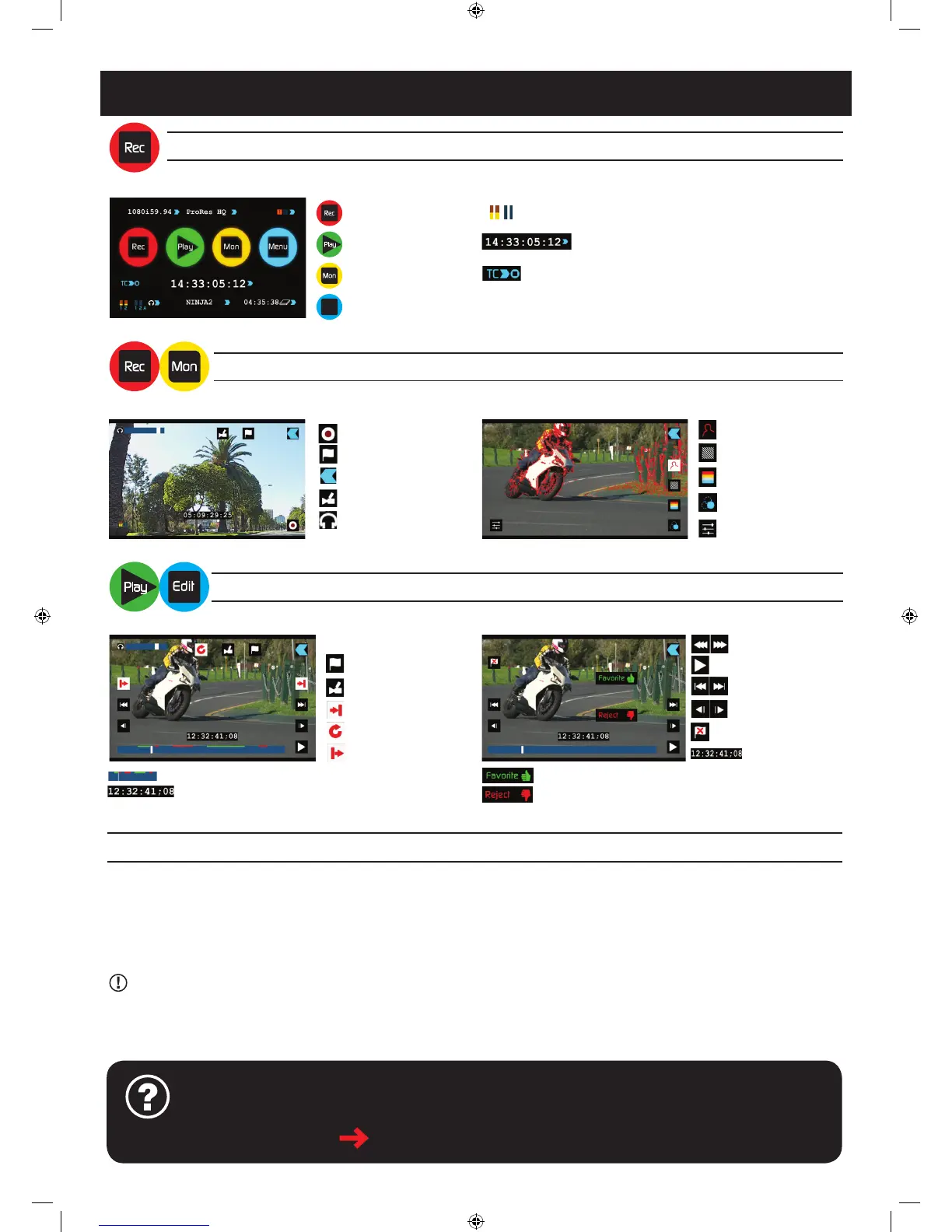

Monitor & Record while monitoring
Playback & Edit: One-touch Review
Smart Monitor Interface
Monitor & Record: Congurations
Smart Log: Tagging Interface Playback: Play, Loop & Scrub
Connect & Edit
For more detailed instructions and important up-to-date information regarding
the Ninja-2 please consult the Ninja-2 User Manual available for download from
www.atomos.com/support
Back: Takes user back to the
main control screen
Record
Main Interface:
Record while Monitoring
Press to Record in Monitor Mode
Record:
Press to start/stop recording
Timecode Display and settings
Smart Log: Smart Log Mode
Smart monitor
Tagged Clips: Areas of the video clip can be tagged & highlighted
Timecode Display
Headphones: Volume adjustment
Audio Indicator
The Audio Levels associated with the current Recording
Play: Enter playback mode
Monitor: Enter monitor mode
Menu: Device settings / options
Smart Log
Smart Monitor Mode
Loop IN Point
Loop OUT Point
Loop: Loop Playback
Timecode Display Indicator: Video clip playback information
Jump to beginning / end
Frame by Frame: RWD/FFWD
Play: Press to play clip
Exposure Assist: Zebra
False Colour Twin Mode
Focus Assist: Peaking
Blue Only: Exposure Check
Monitor Assist: Control
adjustments for individual lters
Start/stop trigger from moving timecode
Canon 5D MKIII, 1DC & C100 - select HDMI and Canon from the timecode menu (Menu > Timecode)
Sony NEX-FS100 & NEX-FS700 - select HDMI and Sony from the timecode menu (Menu > Timecode)
Atomos timecode - Rec run, Auto restart and time of day
SmartLog:
Clear all smartlog tags
Super RWD/Super FFWD
Menu
Ninja 2 QSG.indd 3 21/05/2015 4:59 pm

Atomos Ninja-2 Specifications

General

Display resolution	800 x 480 pixels
Aspect ratio	4:3, 16:9
Product color	Black
Playback resolutions supported	HD 1080i60, 1080i59.94, 1080i50, 1080p30, 1080p25, \\r 1080p24, 1080p23.98, 1080p30(60i), 1080p25(50i), \\r 1080p24(60i), 1080p23.98(60i), 720p60, 720p59.94, \\r 20p50, SD 486i59.94, 576i50
HDMI ports quantity	4
HDD size	2.5 \
HDD interface	Serial ATA
Maximum HDD capacity	1000 GB
Number of HDDs supported	1
Power consumption (max)	6.8 W
Power consumption (typical)	3.3 W

Weight and Dimensions

Weight	670 g
Dimensions (WxDxH)	115 x 87 x 41 mm
