a. RF Antenna
Connect the supplied RF antenna for AirGlu™ wireless
SYNC functionality.
b. Tally Light
Red Tally light on the rear of the unit indicates active
recording.
c. Battery Slot
Attach NP-F / L-Series type batteries to supply power
in the eld.
d. WiFi Antennas
Connect the supplied WiFi antennas in this position. Wi-Fi
6 provides a high performance wireless connection and
mobile hotspot support for connection.
e. Battery Release
Press and slide batteries away from the unit to remove them.
f. Media Slot
Compatible with Master Caddy II, III, AtomX SSDmini,
AtomX CFast Adapter.
g. DC Power Connector
Connect the supplied DC power supply to the DC jack for
mains power.
h. 12G SDI In/Out
Connectors are 12G SDI compliant and backwards
compatible.
i. 4K HDMI In/Out
The 4K HDMI input provides for recording from HDMI
sources. The 4K HDMI Output provides a live loop out or
play-out in Playback mode.
j. USB-C
For future expanded functionality.
k. RJ45 Ethernet Port
1Gbe Ethernet for a high-speed robust hardwired network
connection.
l. On/O + Screen Lock
Press to power the unit on. Hold the button for at least 4
seconds to power off. Tap to lock/unlock the screen.
m. Mic/Line In
3.5mm input Jack, used to connect Microphone or Line
audio sources
n. Headphone/Audio Out
3.5mm output jack, used for the connection of
headphones. Can also be used for analogue audio out.
o. Remote Control/LANC and Calibration
Allows for remote camera control of supported cameras
with the optional USB-C to serial cable (ATOMCAB018)
and LANC control with a Y cable. The Calibrite
ColorChecker Display Pro /Display Plus can also be
connected for display calibration with the optional USB to
serial cable serial cable (ATOMCAB004).
Physical features
IN 12G OUT 12G IN 4K OUT 4K USB
6.2-16.8V
45W
REMOTE
MIC/LINE
SHOGUN

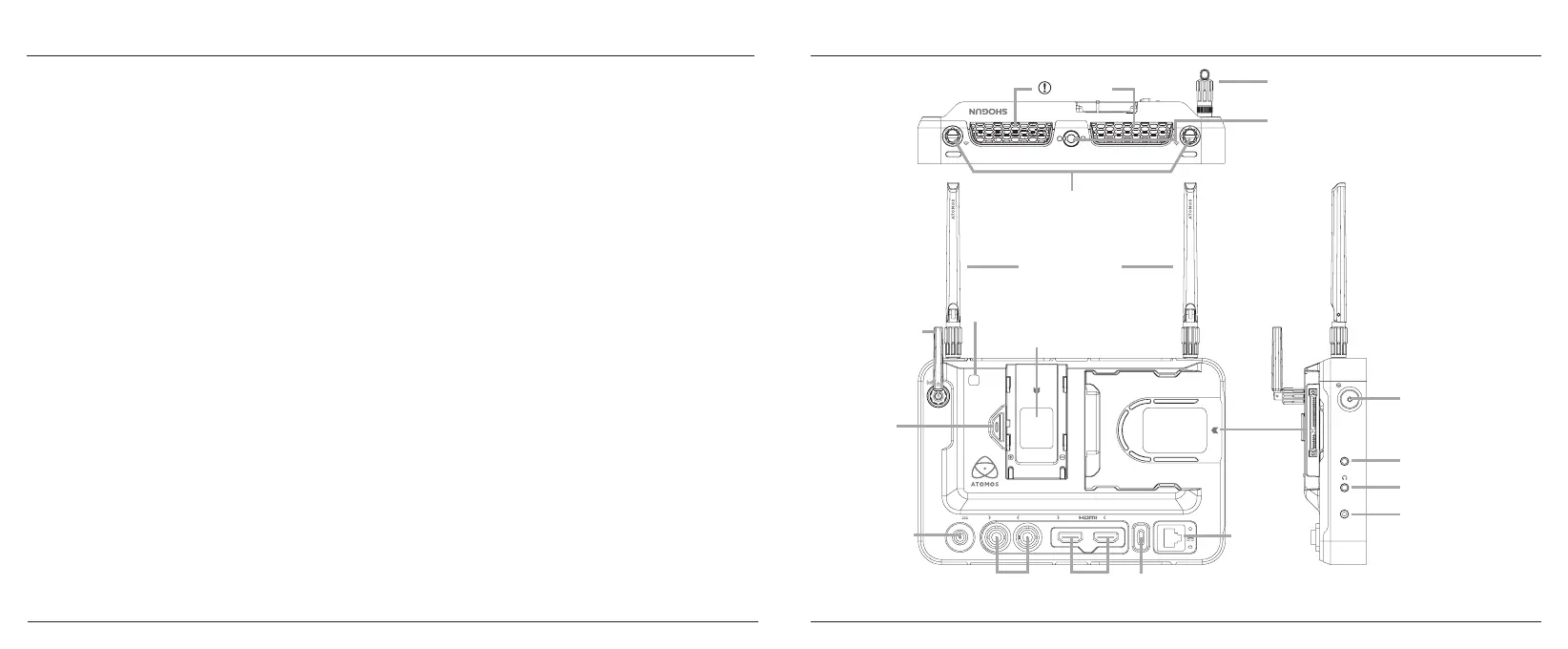

Physical features
h. 12G SDI
In/Out
i. 4K HDMI
In/Out
k. RJ45
Ethernet
Port
j. USB-C
l. On/Off +
Screen lock
m. 3.5mm Mic/Line in
n. 3.5mm Headphone/
Audio out
o. Remote/LANC
Calibration Port
f. Media Slot
e. Battery
release
g. DC Power
Connector
a. RF Antenna
d. WiFi Antennas
c. Battery Slot
b. Tally light
WiFi Antenna
mounting points
RF Antenna
3/8” screw mount
point with 1/4” adapter
(top and bottom)
Ventilation
TOP
BACK SIDE
