1.2 Physical description
This section describes the physical construction of Theta. The figure below illustrates the hardware of
Theta.

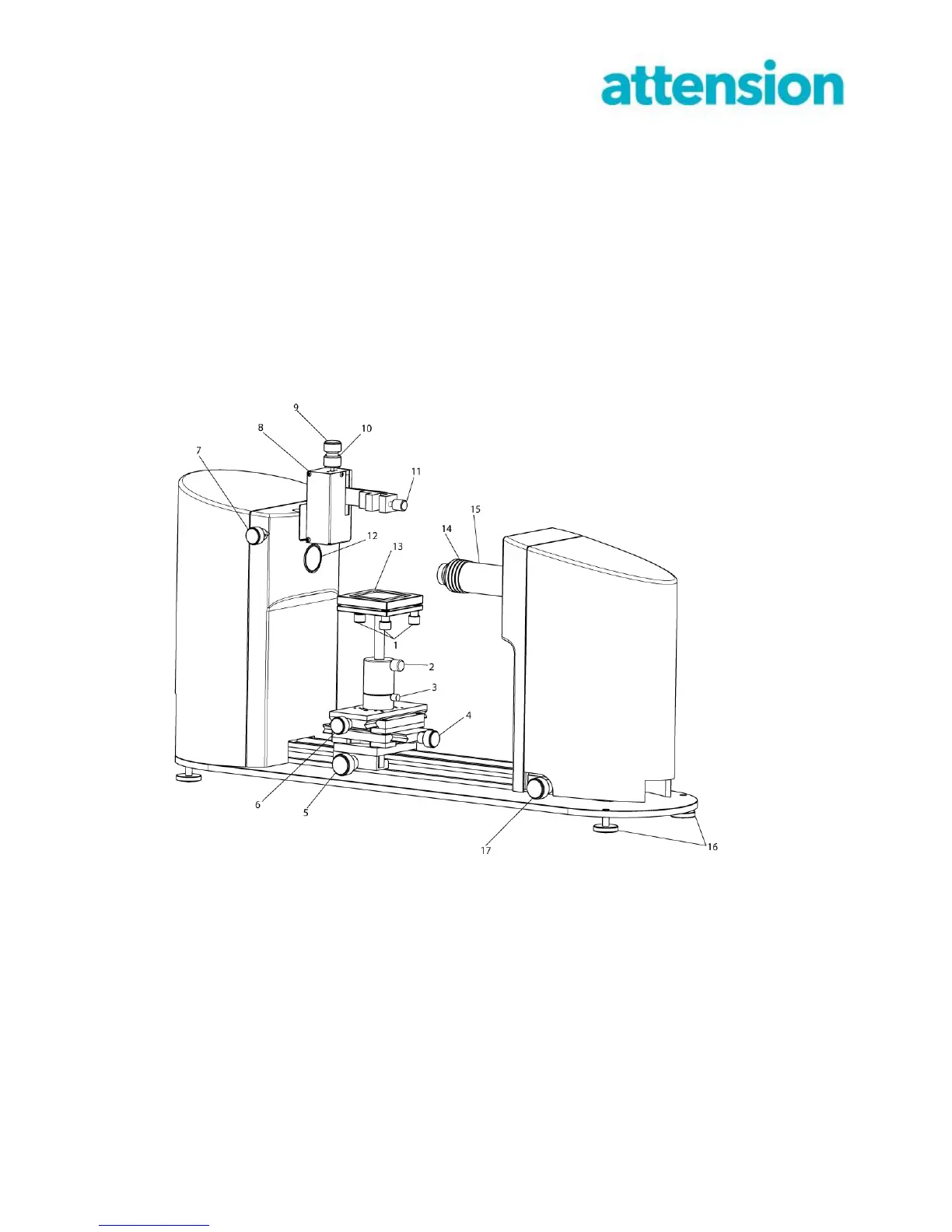

Figure 1.1. Theta physical features.
1) Stage level adjustment
10) Manual dispenser adjustment
2) Stage height adjustment
11) Syringe clamp
3) Stage height lock
12) LED light source
4) Stage linear adjustment
13) Sample stage
5) Stage rail lock
14) Camera lens focus adjustment
6) Stage lateral adjustment
15) Camera lens zoom adjustment
