Chapter 2
Overview BMP40
The BMP40 is a SourceCon™ compatible module featuring an (internal) board-edge
connector which carries all signals for getting it connected to any supporting main unit.
All external in & output connections shall be made using the available connectors on
the panel.

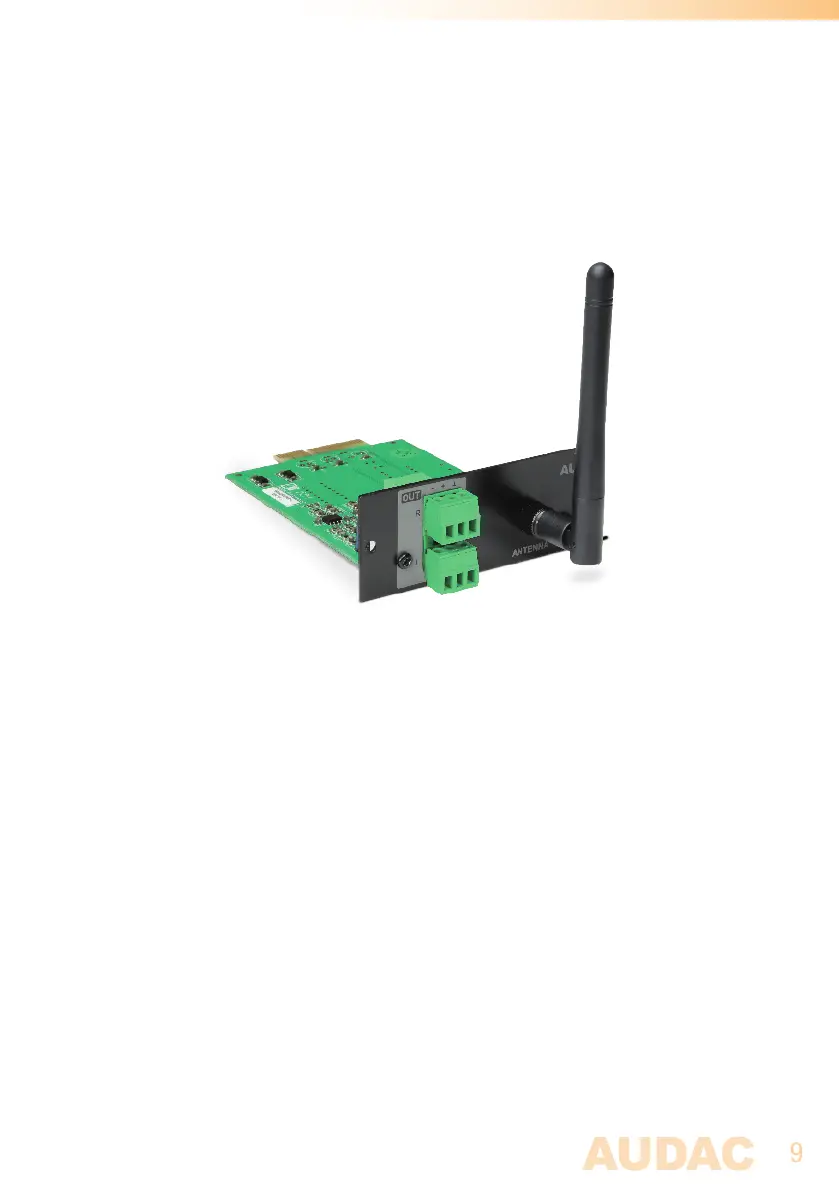

1) Balanced stereo line output:
The balanced stereo line output is implemented using two 3-pin terminal block
connectors. The audio output available on this connector allows it to be fed to any
amplifier or pre-amplifier.
2) SMA-type antenna connection:
The antenna (input) connection is implemented using an SMA-type (male) connector
whereto the supplied antenna should get connected. Depending of the installation
conditions (e.g. when installed in a closed / shielded cabinet), it can be extended using
optional available accessories for optimal reception conditions.
