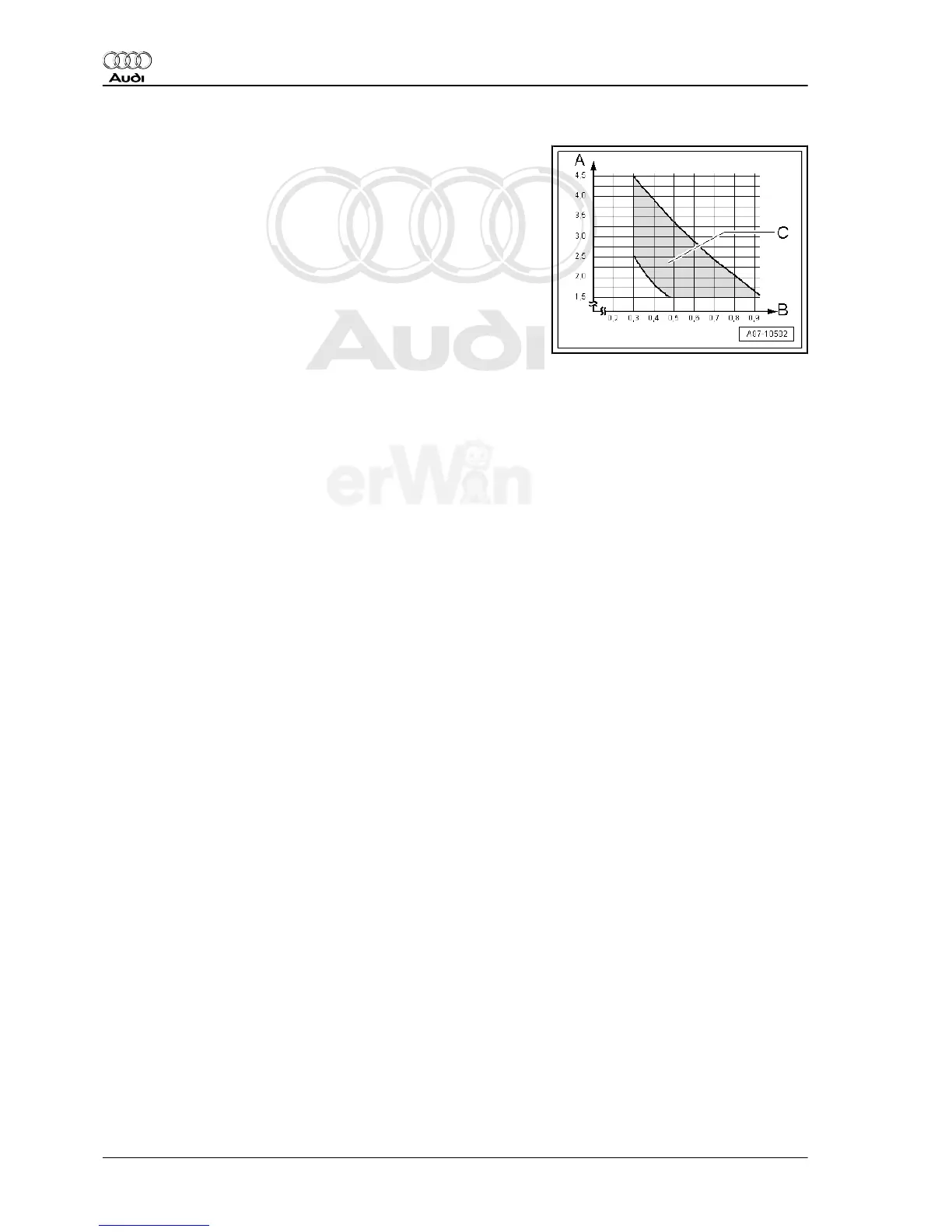

Low-pressure side
Decreasing from initial pressure (when connecting pressure
gauges) to the value in the graph.
A - Low pressure (measured at service connection) in bar abso‐
lute
B - Control current for A/C compressor regulator valve -N280- in
amps
C - Permissible tolerance range
Audi 100 1991 ➤ , Audi 80 1992 ➤ , Audi A1 2011 ➤ , Audi A2 2001 ➤ , A ...
Refrigerant R134a Servicing - Edition 01.2011
172 Rep. Gr.00 - General, Technical Data
