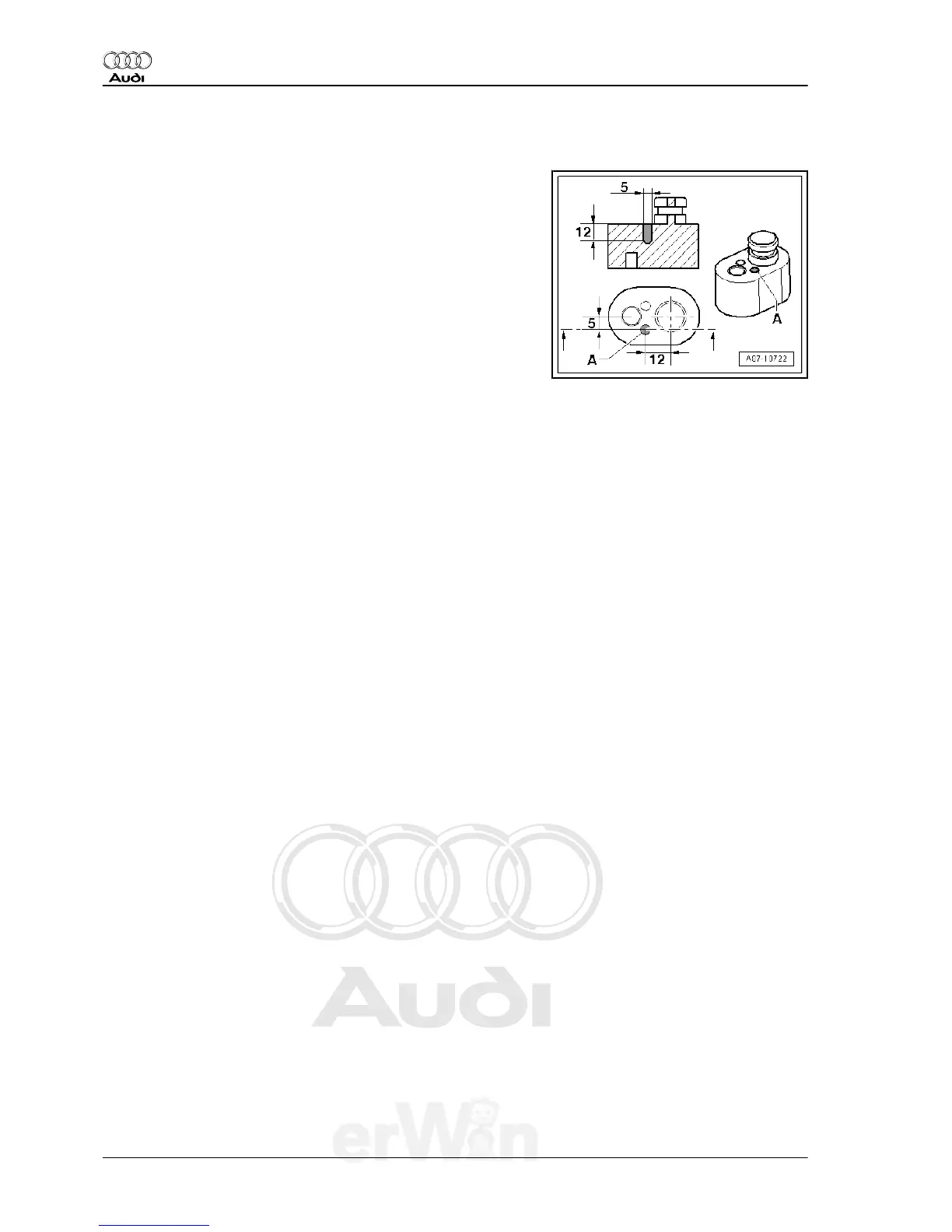

Drill an additional hole in the Adapters -VAS 6338/5- and -VAS
6338/11- .
– Drill a hole -A- (the dimensions in the illustration are given in
mm).
Rework the Adapter -VAS 6338/3- .
Audi 100 1991 ➤ , Audi 80 1992 ➤ , Audi A1 2011 ➤ , Audi A2 2001 ➤ , A ...
Refrigerant R134a Servicing - Edition 01.2011
54 Rep. Gr.00 - General, Technical Data
