Rear suspension
The rear suspension is an advancement on the trapezoidal-link suspension familiar from the Audi A4 `04.
In particular the bearing set-ups have been modified. Several bearing elements from the Audi A6 `04 are used.
Suspension alignment/setting
The alignment and setting procedures, as well as the setting positions on the vehicle, are unchanged from the
previous model.
Common part from A6 model year 2004/2005
Common part from previous model
Spring
Wheel carrier
Subframe
Anti-roll bar
Upper track control
arm
Damper bearing
Shock absorber
Wheel bearing /
wheel hub
Trapez oid al link
Inner front trapezoidal
link bearing

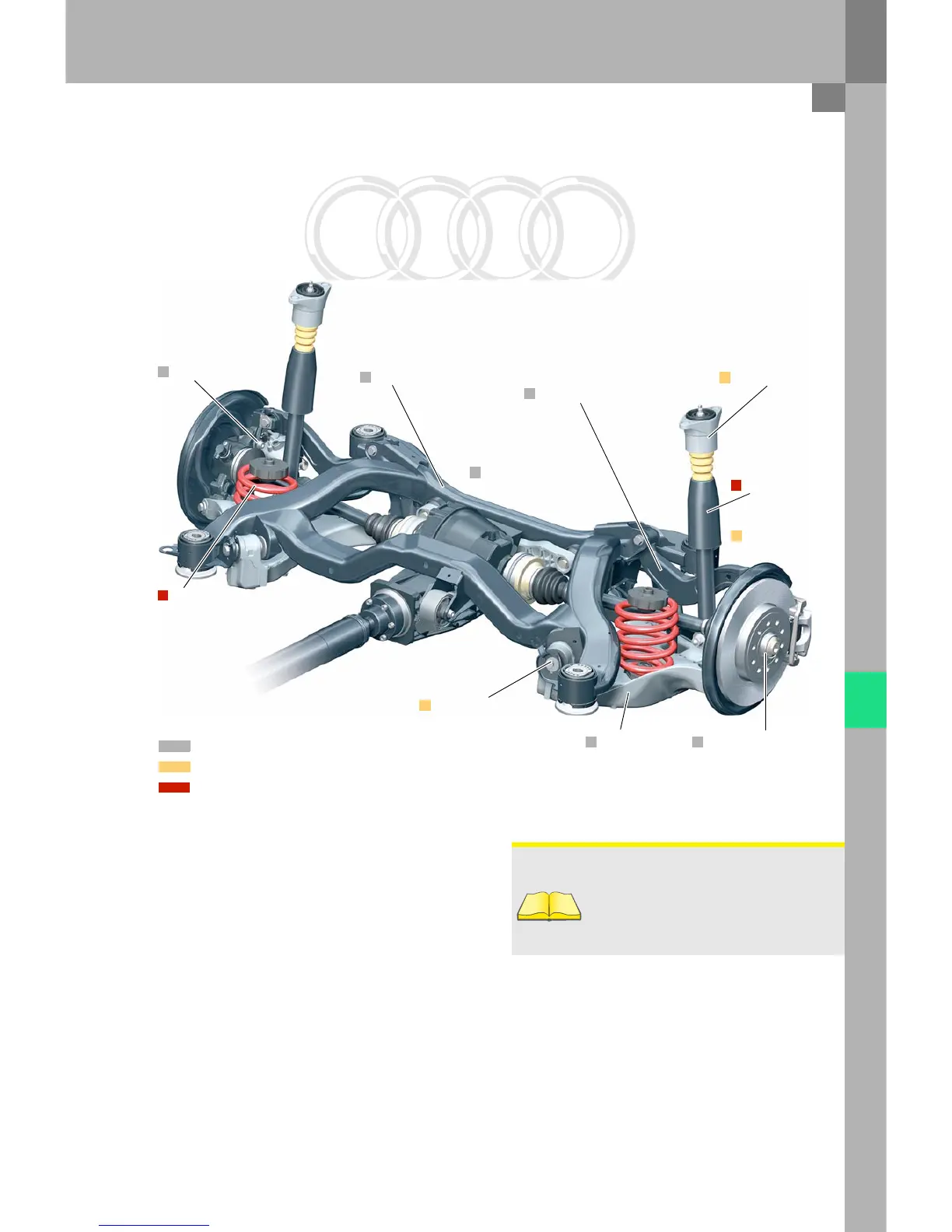

343_013
Reference
For information on design and function,
refer to Self-Study Programme 161.
New part
Outer rear
trapezoidal link
bearing
