11
Versions of the dash panel insert
Depending on vehicle type and the country in which
the vehicle is registered, the following differences
exist between the individual dash panel inserts:
– Petrol engine / diesel engine
– Distance to destination display in kilometres,
miles (UK) or miles (USA)
– Analog display of coolant temperature in ºC or ºF
– Midline dash panel insert (DOT matrix) or High-
line dash panel insert (colour TFT display)
– Highline dash panel insert with or without speed-
ometer ring display for ACC

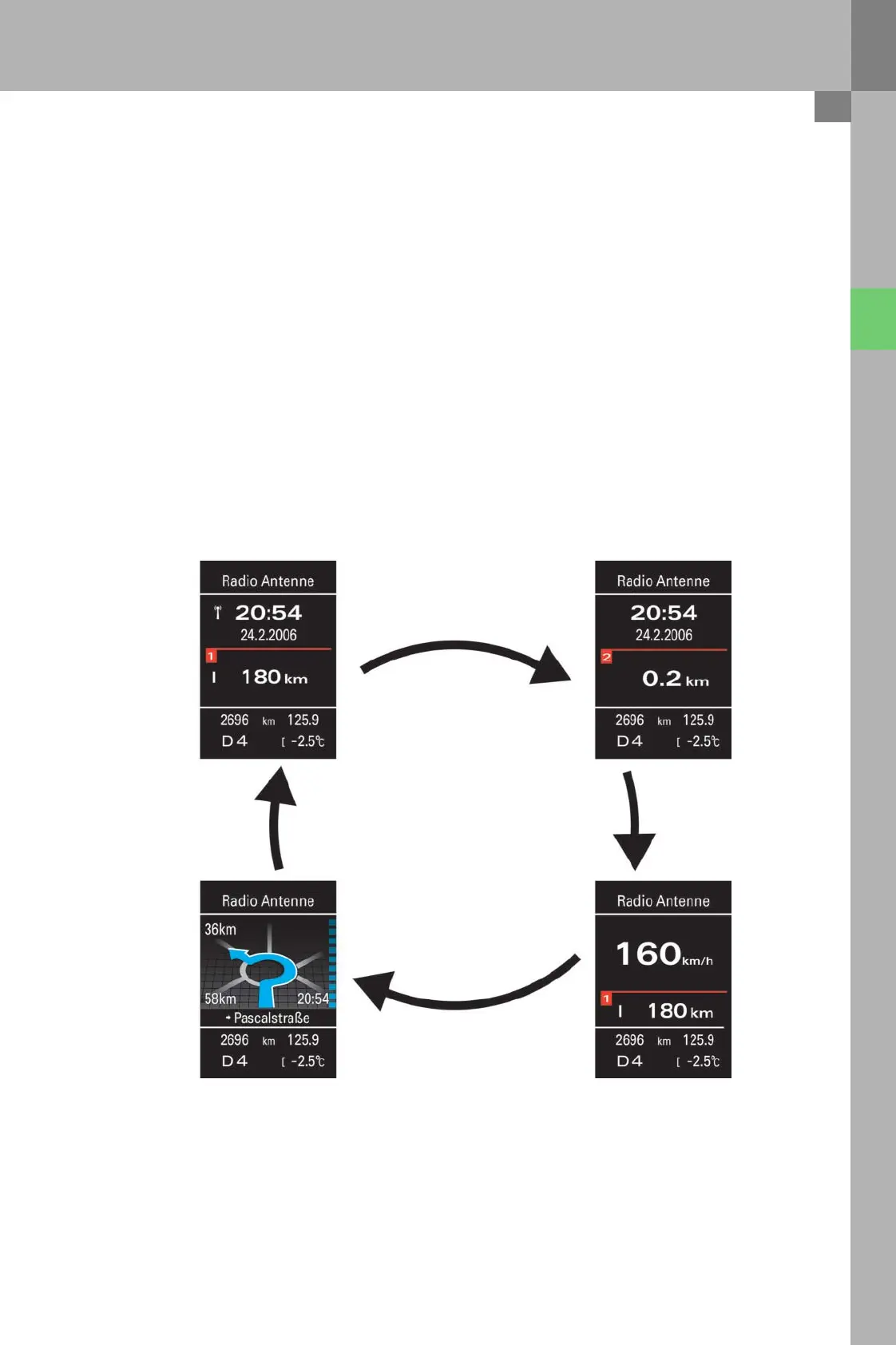

Information shown on the centre display of the
dash panel insert
The user can scroll through the individual display
levels in the dash panel insert by pressing Reset
button on the onboard computer in the windscreen
wiper stalk. The displays in an Audi A5 are shown
below with the optional dash panel insert with col-
our display and navigation system.
393_002
