Self-levelling suspension, A6
The pressure limiting function protects the
system against inadmissible high pressure
e.g. when the compressor fails to switch off
due to a defective relay contact or defective
control unit.
242_035
242_017

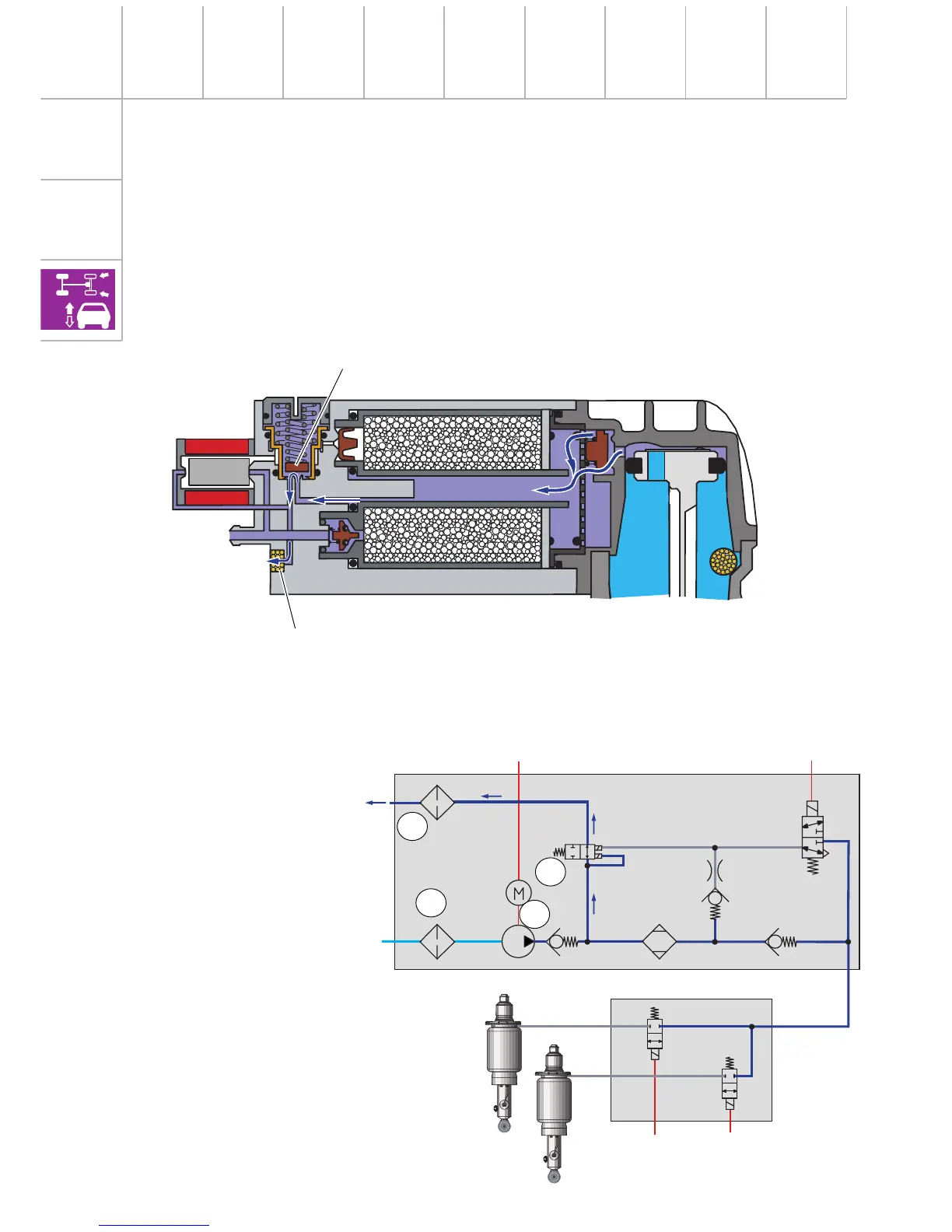

Diagram of pneumatic system, pressure limiting function
1
2
9
8
1 Suction filter
2 Compressor
8 Discharge filter
9 Pneumatic discharge
valve
from relay J 403
In such cases, the pressure limiting valve
opens against the resilience from approx.
13.5 bar upwards, and the pressure is
discharged via the discharge filter.
Pressure limiting valve
Discharge filter
from control unit J197
from control unit J197
