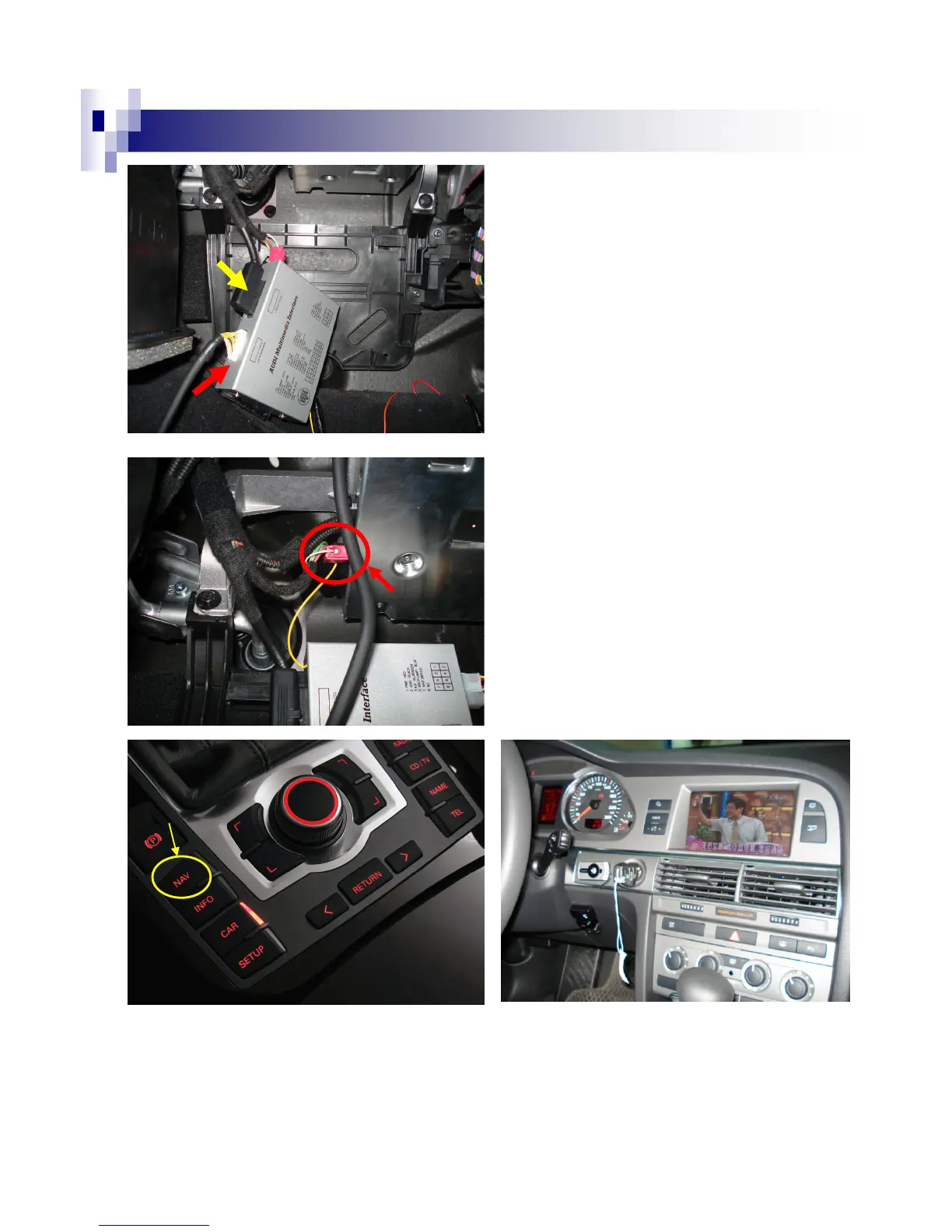

Audi A8 - Final Connections and Operation; LVDS Cable to MMI Module; Power Cable Reconnection; Source Switching Operation

LVDS In cable
A
Warning!!
You must complete the installation for
interface, and then the LAST STEP is
to re-plug the MMI power cable (B
connector) to the MMI control module.
B
connector
Plug A connector to interface
“LVDS Out”
Use LVDS In cable (comes with
our interface) to connect interface
“LVDS In” and MMI control
module
factory NAV button
After completing the installation, simply press the factory NAV button, then you can switch
through the A/V sources you connected and indulge yourself in the hi-fidelity multimedia world!
