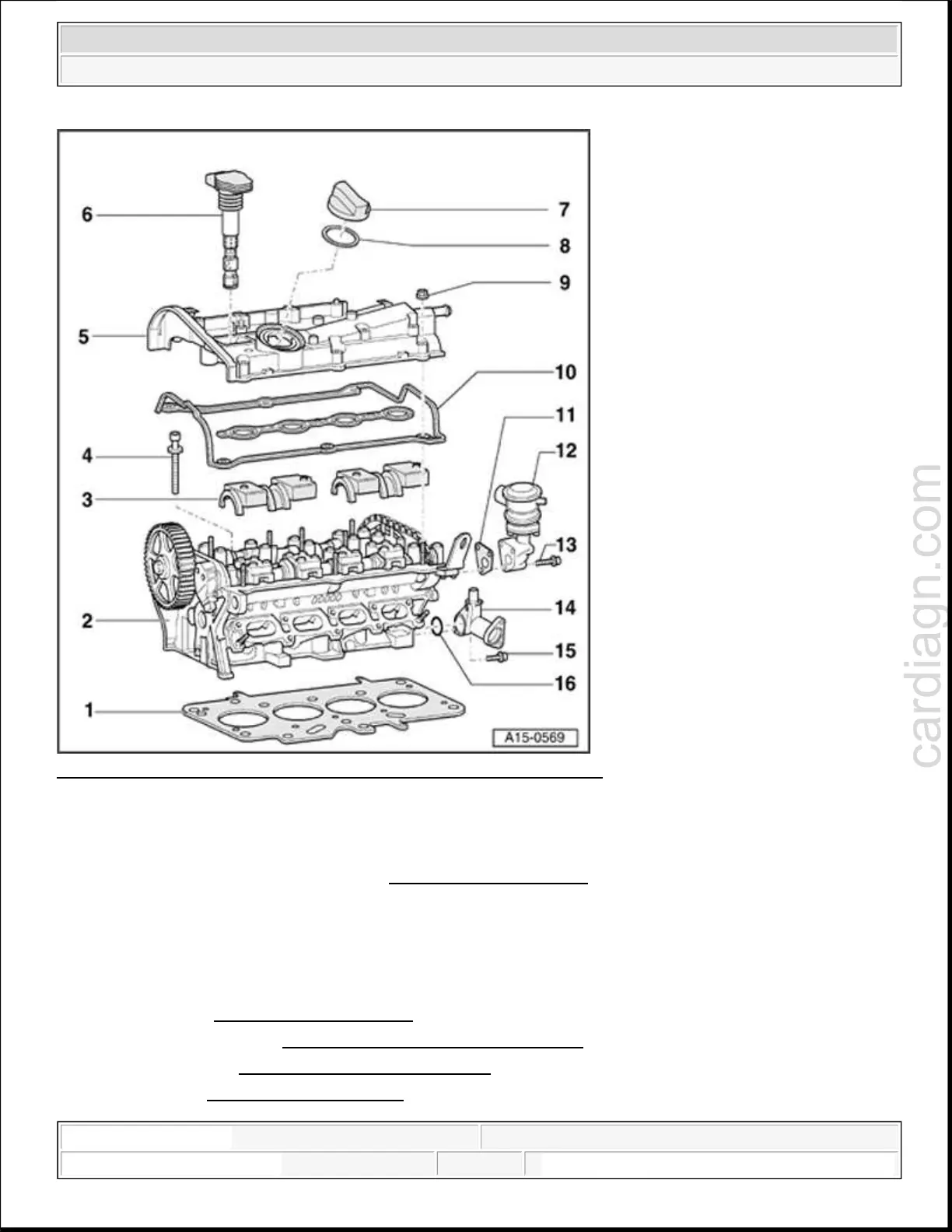

Fig. 142: Cylinder Head, Removing And Installing Overview - Part I
Courtesy of VOLKSWAGEN UNITED STATES, INC.
1 - Cylinder head gasket
Replace Removing cylinder head, --> Cylinder head, removing
Installation position: Part No. toward cylinder head
After replacing, fill with fresh coolant
2 - Cylinder head
Removing --> Cylinder head, removing
Checking for distortion Checking cylinder head for distortion
Resurfacing limit Cylinder head resurfacing limit
Installing --> Cylinder head, installing
2005 Audi A4 Quattro
ENGINE 1.8 Liter 4-Cyl. 5V Turbo Engine Mechanical, Engine Code(s): AMB
