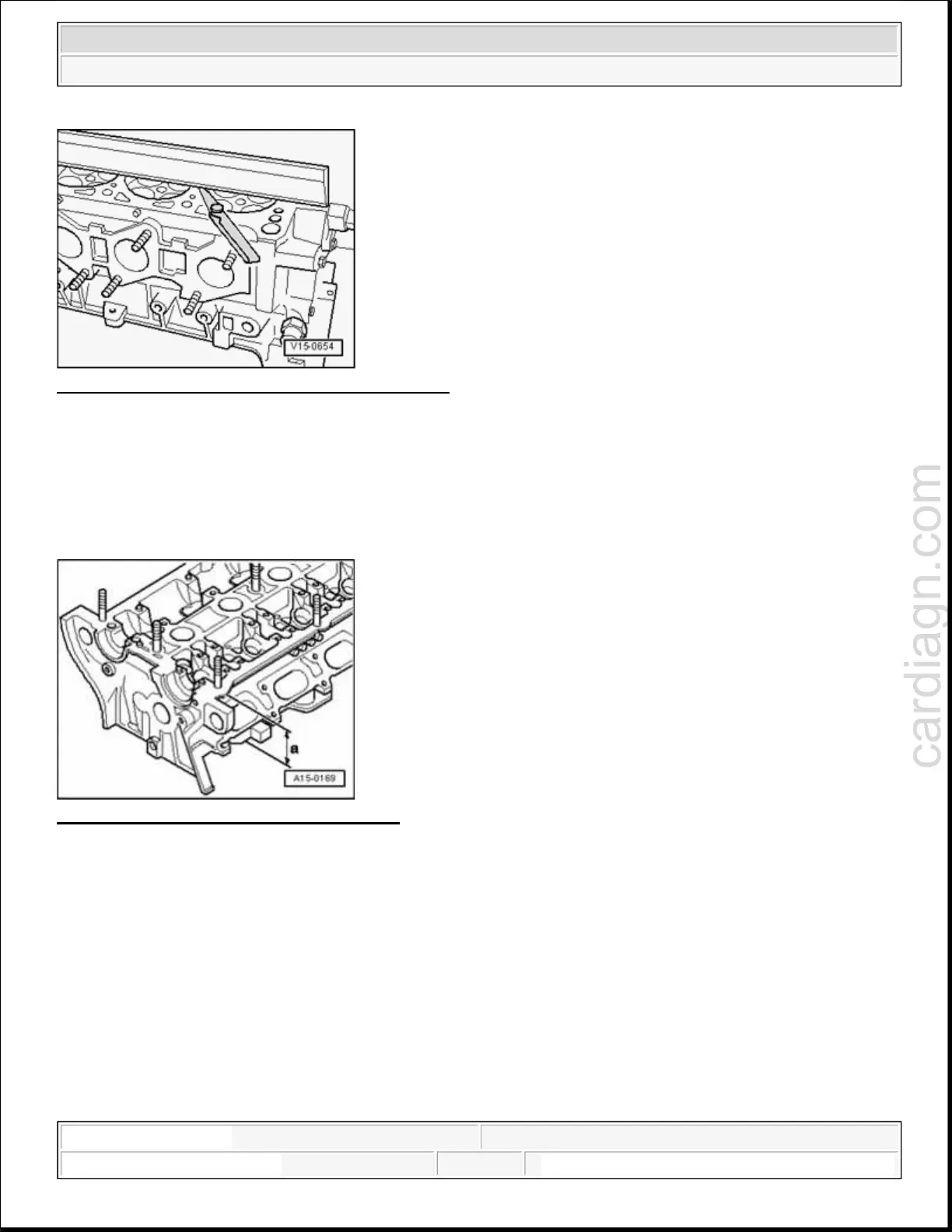

Fig. 144: Checking Cylinder Head For Distortion
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Check cylinder head for distortion at several points using knife-edge straightedge and feeler gauge.
Max. permissible distortion: 0.1 mm
Cylinder head resurfacing limit
Fig. 145: Cylinder Head Resurfacing Limit
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Resurfacing the cylinder head (skimming) is only permitted down to minimum dimension - a -.
Minimum dimension: - a - = 139.20 mm
Sealing transition points between double bearing cap and cylinder head (2 points):
