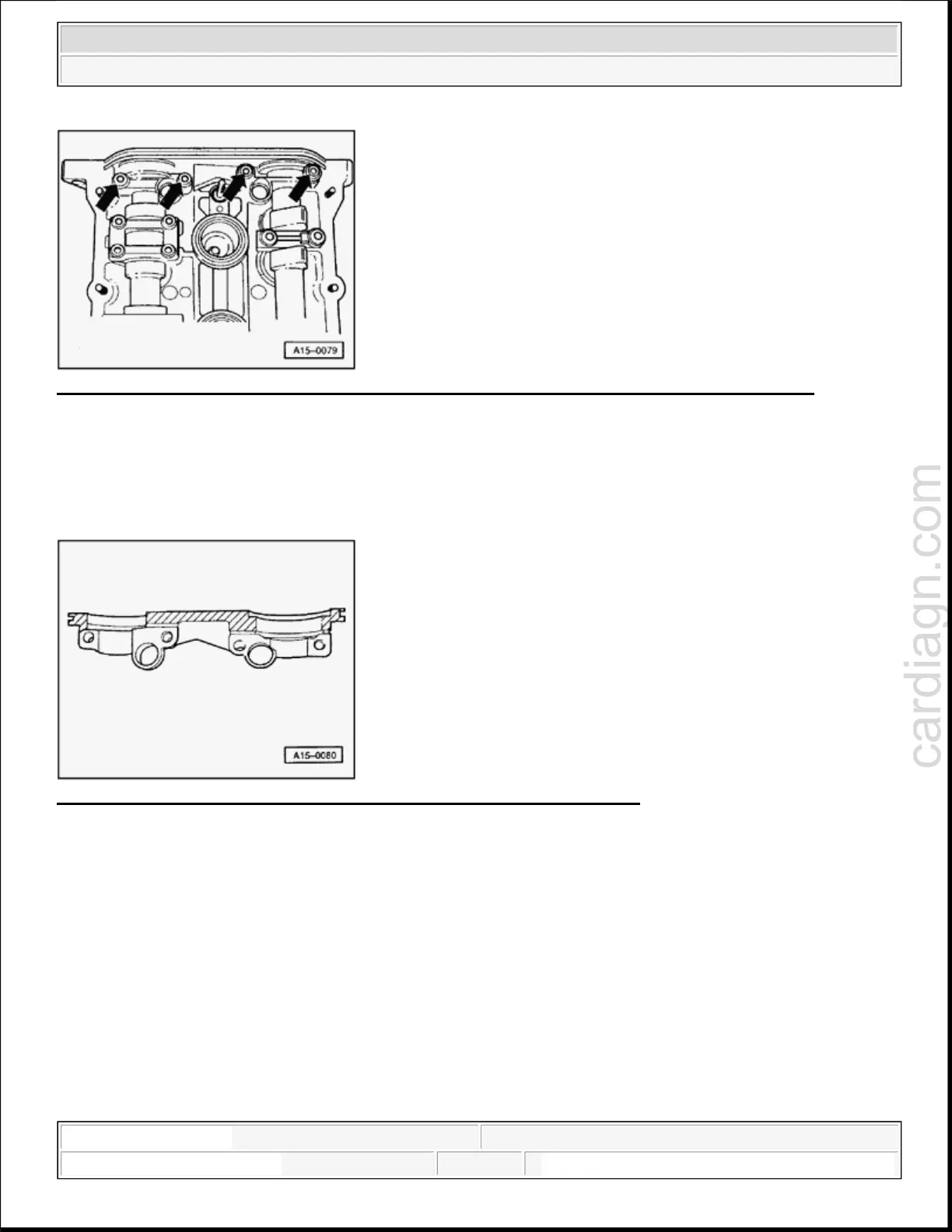

Fig. 146: Sealing Transition Points Between Double Bearing Cap And Cylinder Head (2 Points)
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Apply a small quantity of sealant Part No: AMV 174 004 01 to sides of joints - arrows - on upper sealing
surface of cylinder head.
Sealing camshaft adjuster/cylinder head transition (4 points)
Fig. 147: Sealing Camshaft Adjuster/Cylinder Head Transition (4 Points)
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Apply a small quantity of sealant Part No: AMV 174 004 01 to sides of joints - arrows - on upper sealing
surface of cylinder head.
Loosening and tightening union nut for fuel supply line in vehicles as of 07.03
