Remove engine cover - arrows -.

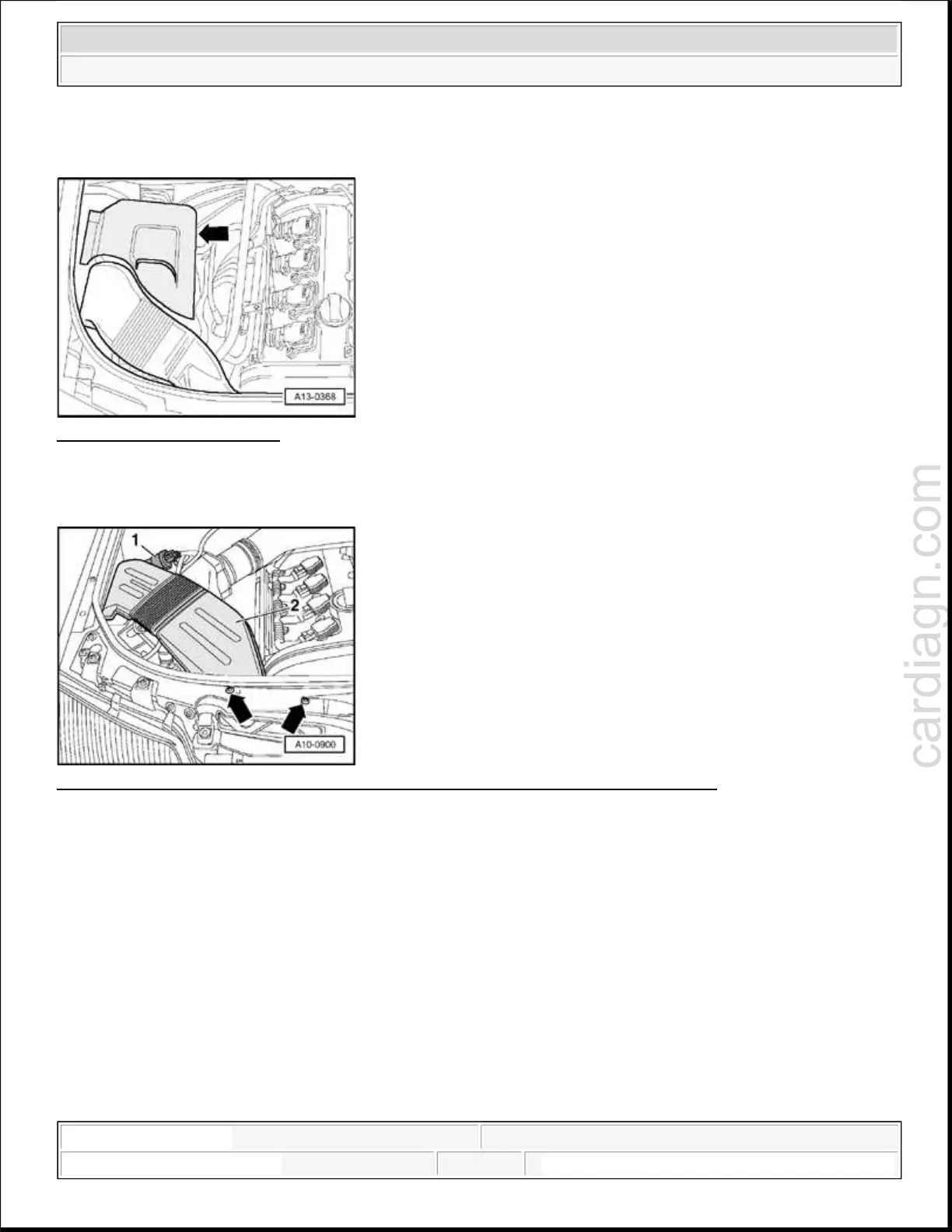

Fig. 150: Air Cleaner Cover
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Remove air cleaner cover - arrow -.
Fig. 151: Evaporative Emission Canister Purge Regulator Valve N80 And Air Duct
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Remove bolts - arrows -.
Disengage EVAP canister purge regulator valve N80 - 1 - from air duct - 2 -.
Remove both screws - arrows - for air duct - 2 -.
