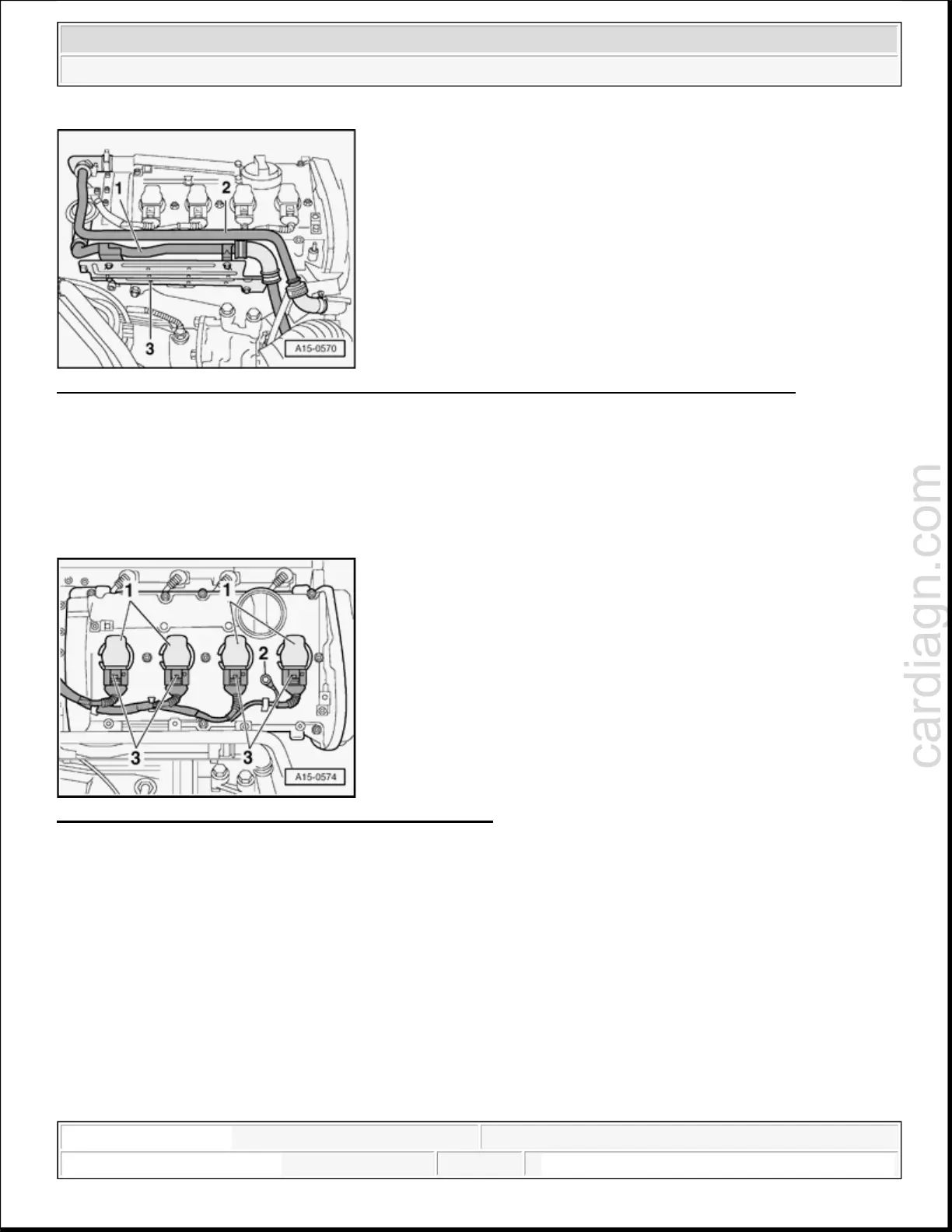

Fig. 152: Crankcase Breather Line, Secondary Air Combination Valve Line And Heat Shield
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Remove crankcase breather line - 2 -.
Remove crankcase breather hose at cylinder head cover.
Remove line - 1 - on secondary air combination valve on cylinder head cover and heat shield - 3 -.
Move secondary air line slightly to one side.
Fig. 153: Ignition Coils, Ground Wire And Connectors
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Remove Ground wire - 2 -.
Disconnect connectors - 3 -.
Move wiring clear.
Pull out ignition coils - 1 -.
Release 2 retainin
clips for top section of toothed belt
uard.
