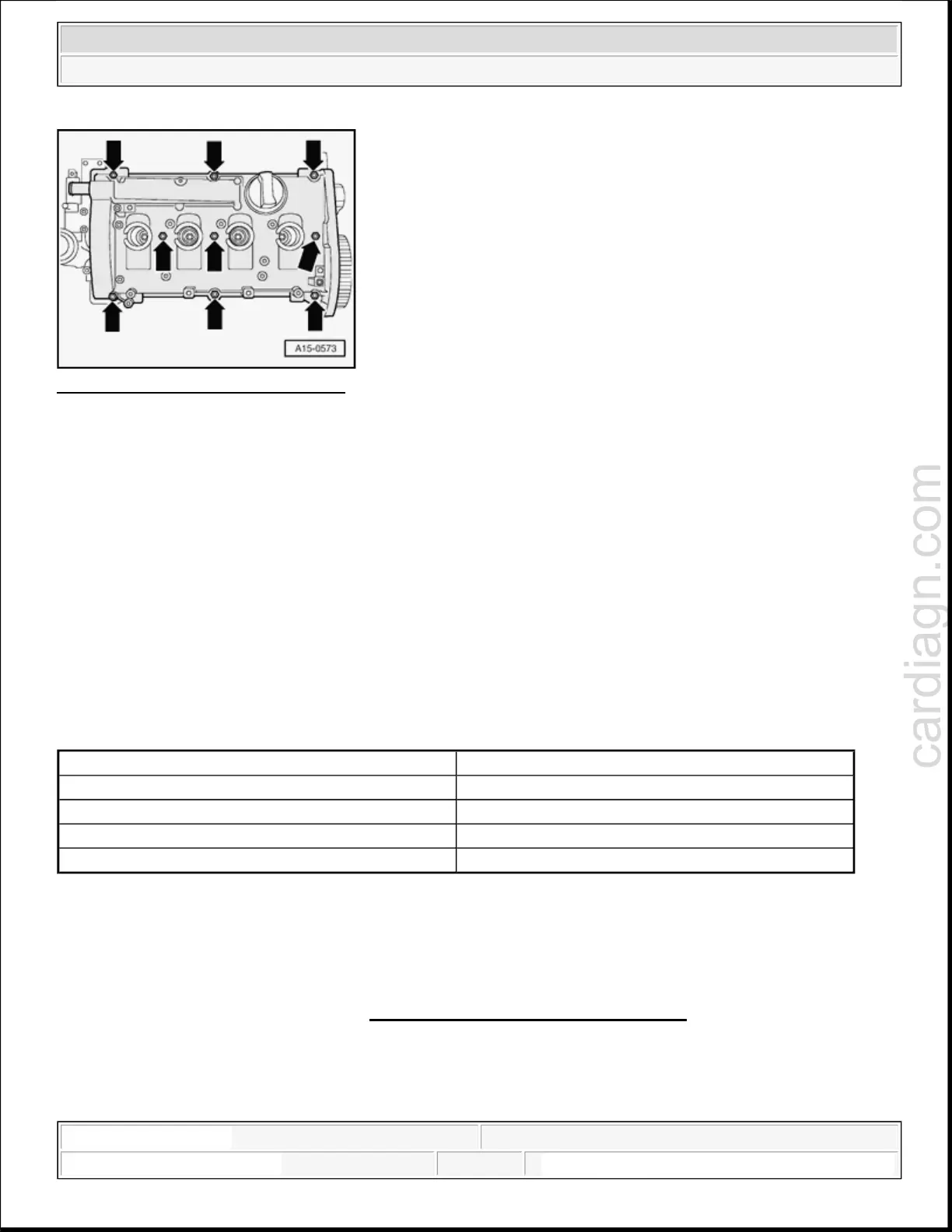

Fig. 154: Cylinder Head Cover Nuts
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Loosen nuts - arrows - on cylinder head cover and remove cylinder head cover.
Installing
Install in reverse order, paying attention to the following:
First tighten inner nuts for cylinder head cover, then tighten outer nuts in diagonal sequence.
Ensure that top section of toothed belt guard is seated correctly.
Tightening torques
Cylinder head, removing
Conditions
Engine in vehicle.
Lock carrier in service position --> Lock carrier, moving to service position.
NOTE:
Replace gaskets and sealing rings.
Replace cylinder head cover gaskets if damaged.
Component Nm
Cylinder head cover to cylinder head 10
Crankcase breather line to cylinder head cover 10
Secondary air line to cylinder head cover 10
Hose clamps 2
NOTE:
All cable ties unfastened or cut open on removal are to be re-attached in
same position on installation.
2005 Audi A4 Quattro
ENGINE 1.8 Liter 4-Cyl. 5V Turbo Engine Mechanical, Engine Code(s): AMB
