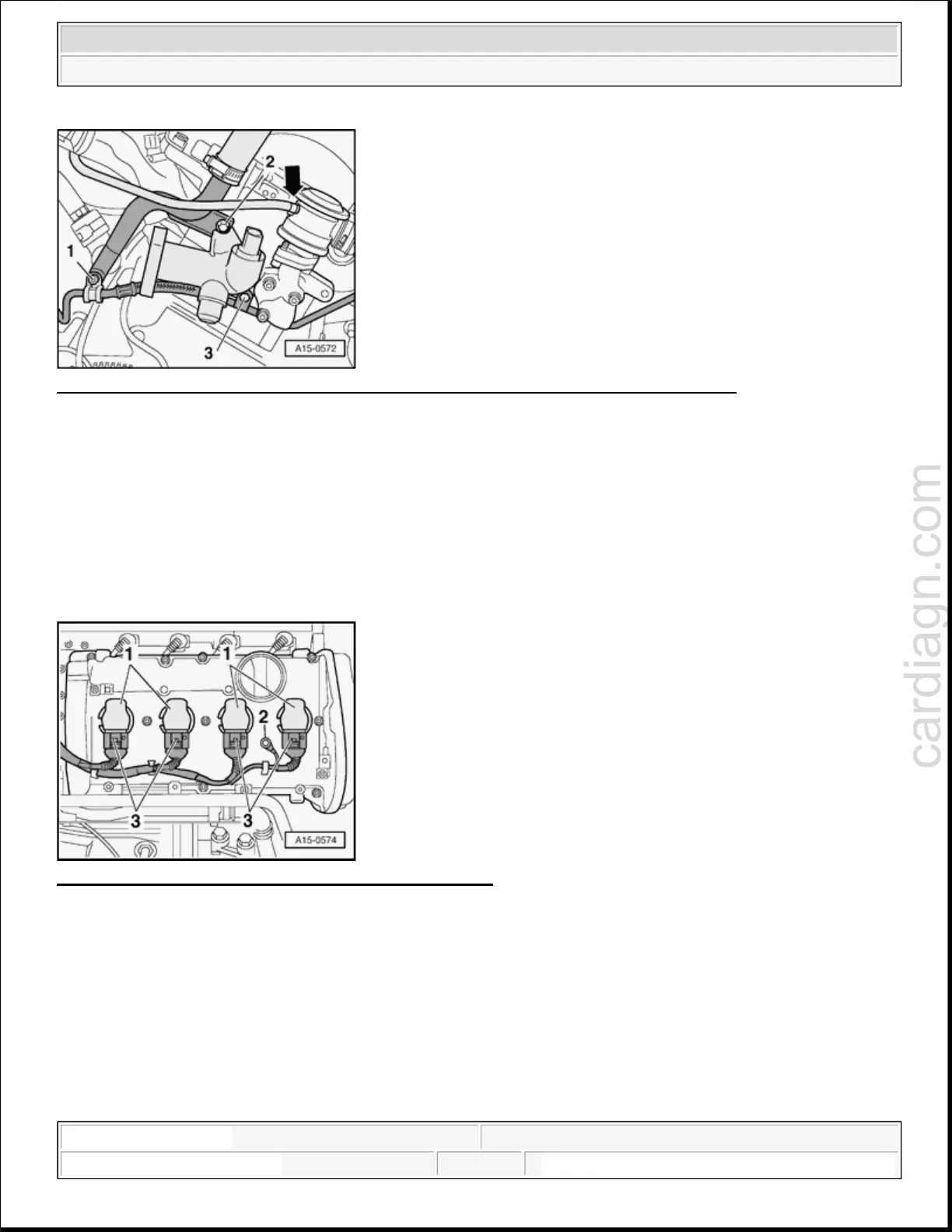

Fig. 161: Identifying Vacuum Hose, Oil Supply Line Bracket, Coolant Flange & Bolts
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Disconnect vacuum hose - arrow - at combination valve.
Remove coolant flange, bolts - 2 - and - 3 -.
Remove bracket - 1 - for oil supply line.
Unclip all wiring on cylinder head and move it clear.
Pull off coolant hose to heater unit heat exchanger at rear of cylinder head. To do so, first release retainers
on connecting flange.
Fig. 162: Ignition Coils, Ground Wire And Connectors
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Remove Ground wire - 2 -.
Disconnect connectors - 3 -.
Move wiring clear.
Pull out i
nition coils - 1 -.
2005 Audi A4 Quattro
ENGINE 1.8 Liter 4-Cyl. 5V Turbo Engine Mechanical, Engine Code(s): AMB
