Audi AMB - Page 122

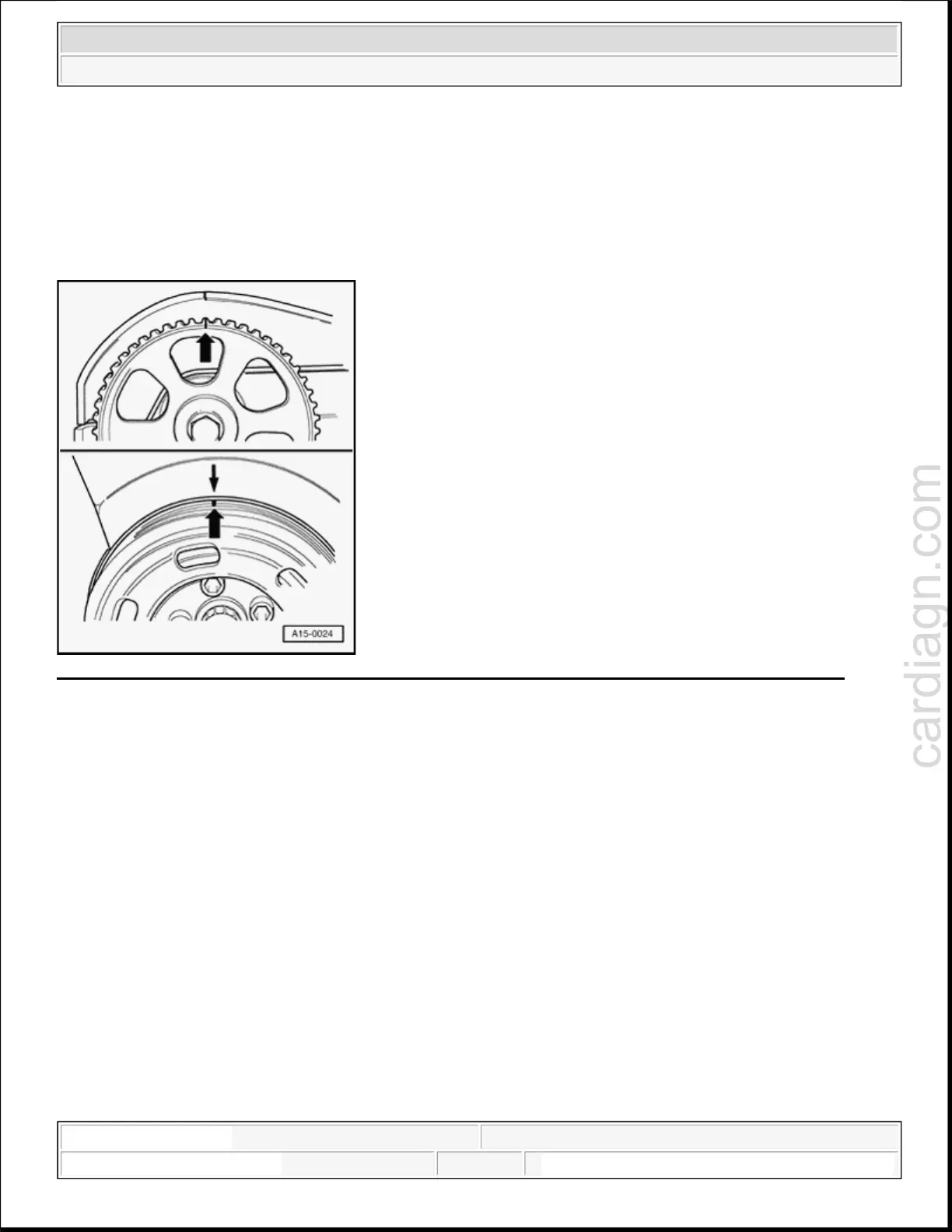

Fig. 165: Identifying Marking On Camshaft Gear Aligned With Marking On Cylinder Head Cover
Courtesy of VOLKSWAGEN UNITED STATES, INC.
 Before positionin
g
c
y
linder head, set crankshaft and camshaft to TDC No. 1 c
y
linder.
 Remove new cylinder head gasket from packaging just before installation.
 Handle gasket extremely carefully. Damaging the silicone layer or indented
area will lead to leaks.
 No oil or coolant must be allowed to remain in blind holes for cylinder
head bolts in cylinder block.
