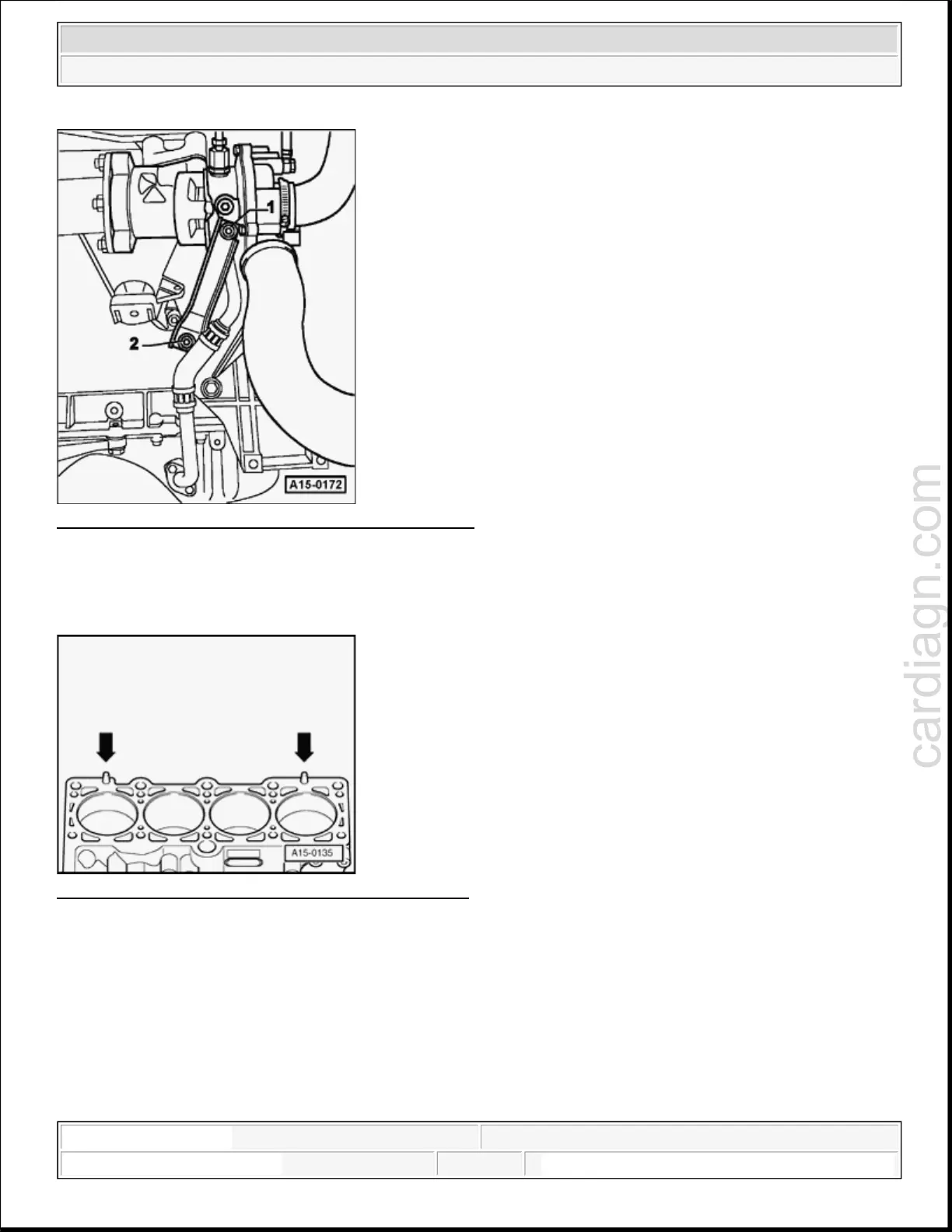

Fig. 166: Loosening Bolts On Turbocharger Bracket
Courtesy of VOLKSWAGEN UNITED STATES, INC.
 Loosen bolts - 1 - and - 2 - on turbocharger bracket approx. 2 turns to avoid setting up stresses when
installing cylinder head.
Fig. 167: Identifying Cylinder Block Centering Pins
Courtesy of VOLKSWAGEN UNITED STATES, INC.
 Place cylinder head gasket in position.
 Note position of centering pins in cylinder block - arrows -.
 Check installed position of cylinder head gasket: Part No. should be visible from intake side.
 Position cylinder head.
 Insert c
y
linder head bolts and han
d
-ti
g
hten.
2005 Audi A4 Quattro
ENGINE 1.8 Liter 4-Cyl. 5V Turbo Engine Mechanical, Engine Code(s): AMB
1:01:02 AM Page 111
