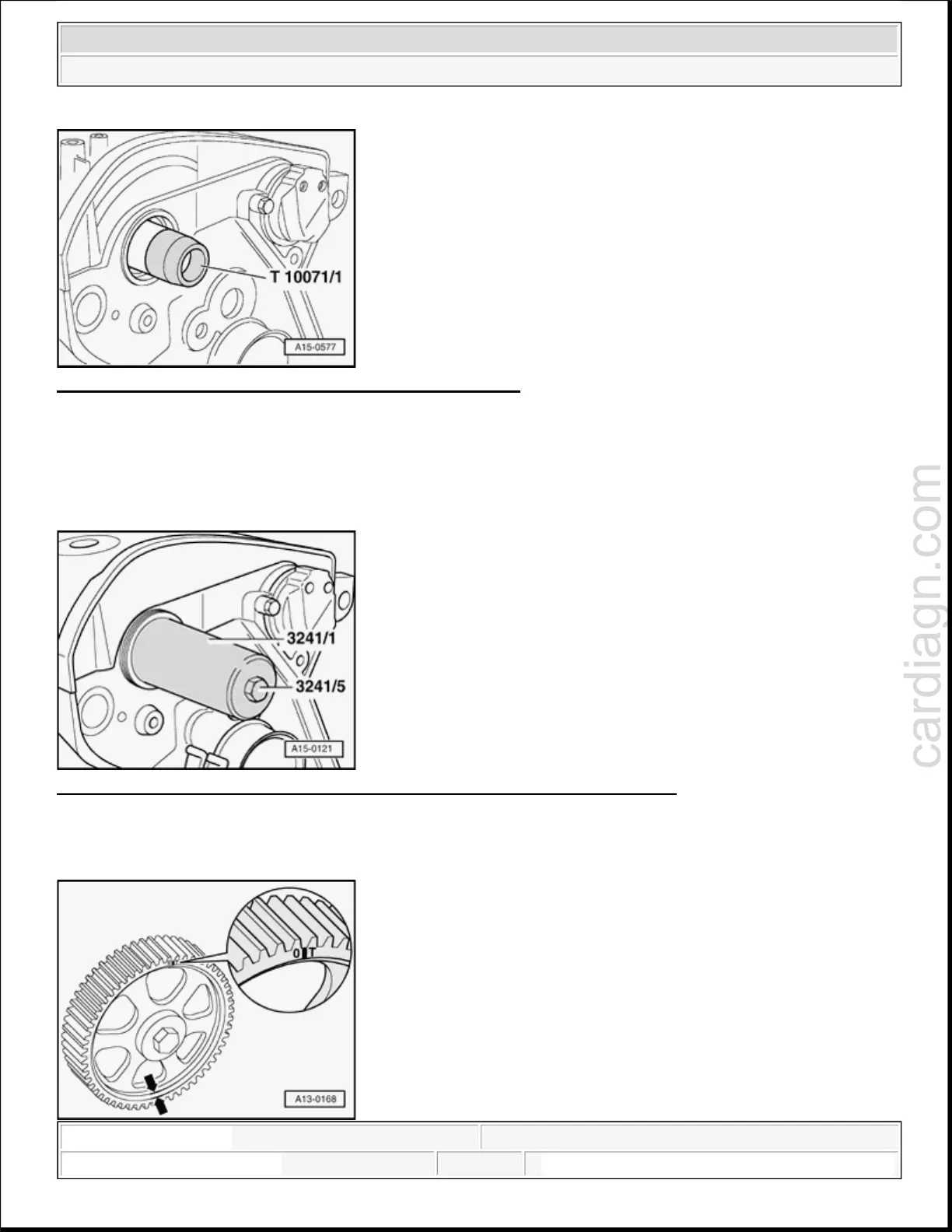

Fig. 182: Placing Guide Sleeve T10071/1 On Camshaft Pin
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Install guide sleeve T10071/1 onto camshaft journal.
Slide oil seal over guide sleeve onto shaft journal.
Remove guide sleeve.
Fig. 183: Pushing In Oil Seal As Far As It Will Go Using Thrust Sleeve 3241/1
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Push in oil seal as far as it will go using thrust sleeve 3241/1. To do so, use bolt 3241/5.
2005 Audi A4 Quattro
ENGINE 1.8 Liter 4-Cyl. 5V Turbo Engine Mechanical, Engine Code(s): AMB
1:01:04 AM Page 126
