Fi
g
. 184: Identif
y
in
g
Camshaft Gear Thin Rib Toward Outside And TDC Markin
g
Visible
Courtesy of VOLKSWAGEN UNITED STATES, INC.
 Install camshaft sprocket.
 Note installed position:
N
arrow web of camshaft sprocket must face outward - arrows - and marking for TDC No. 1 cylinder must be
visible from front.
 Install securing bolts for camshaft sprocket (use counterhold 3036 ).

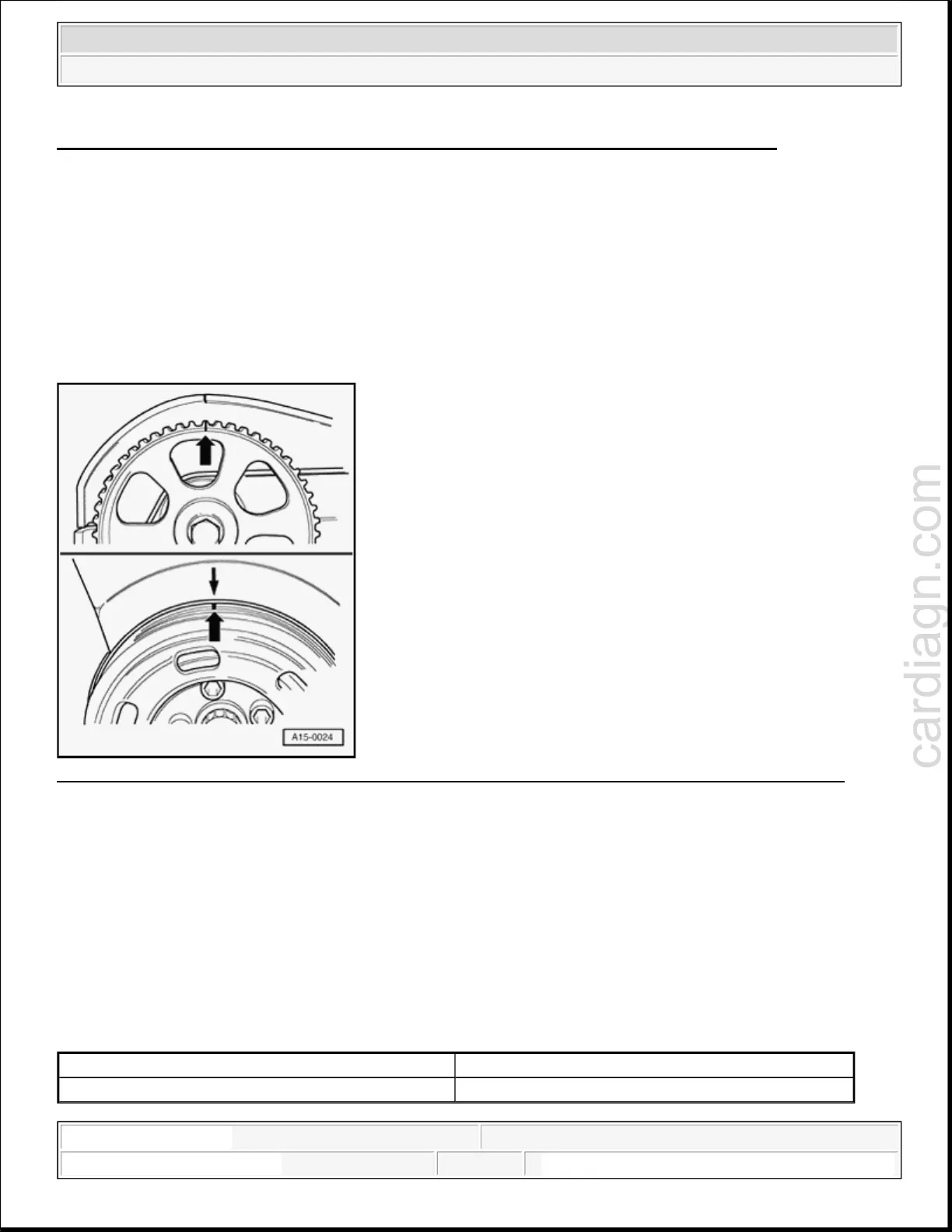

Fig. 185: Identifying Marking On Camshaft Gear Aligned With Marking On Cylinder Head Cover
Courtesy of VOLKSWAGEN UNITED STATES, INC.
 Align marking on camshaft sprocket with marking on cylinder head cover.
 Align marking on vibration damper with marking on lower section of toothed belt guard.
 Install toothed belt (adjust valve timing).
Tightening torque
NOTE:
 If a piston is at TDC, valves could strike piston when camshaft is turned.
Pistons must not, therefore, be set to TDC.
Component Nm
Camshaft sprocket to camshaft 65
2005 Audi A4 Quattro
ENGINE 1.8 Liter 4-Cyl. 5V Turbo Engine Mechanical, Engine Code(s): AMB
1:01:04 AM Page 127
