Audi AMB - Page 144

Installin
g
oil seal with rin
g
sprin
g

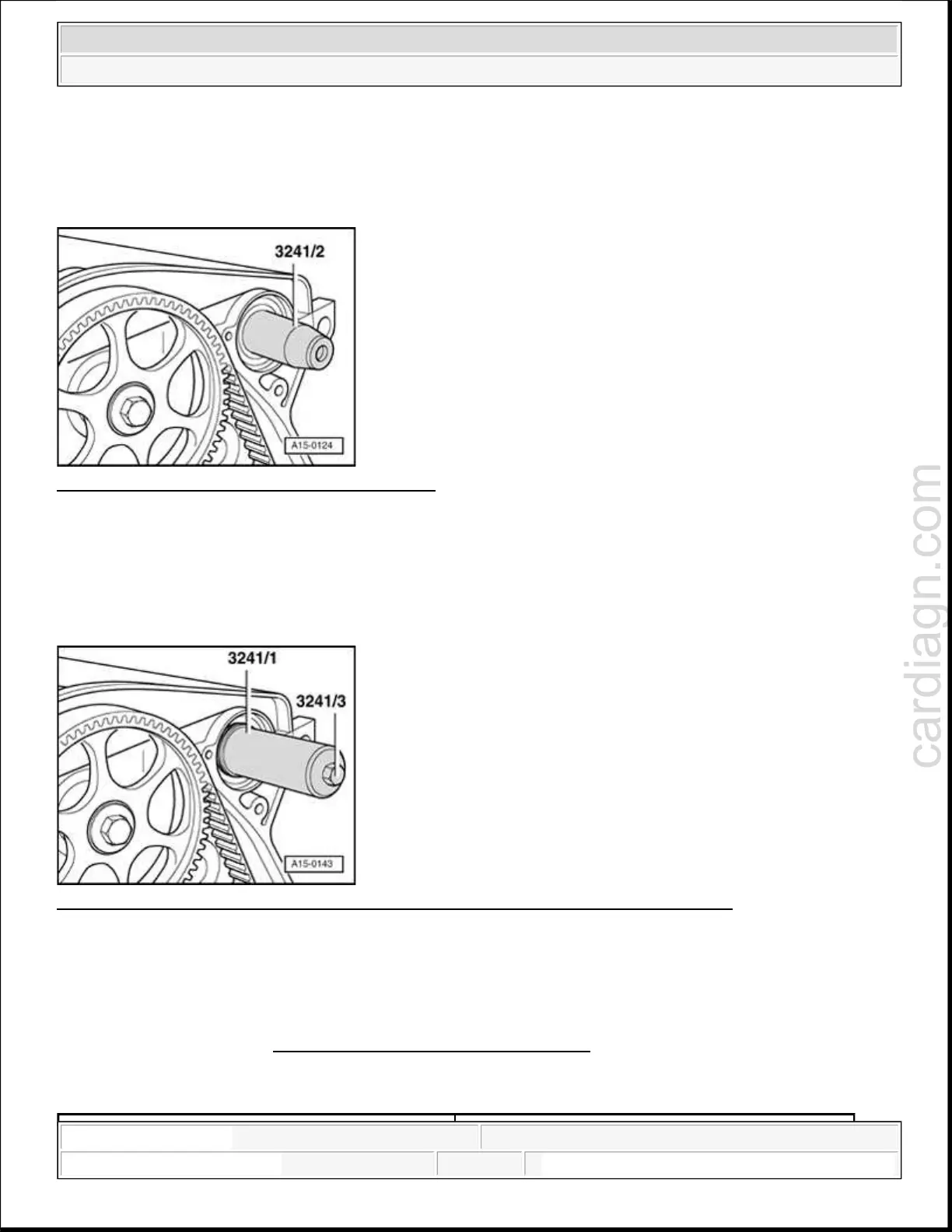

Fig. 194: Guide Sleeve 3241/2 On Camshaft Pin
Courtesy of VOLKSWAGEN UNITED STATES, INC.
 Install guide sleeve 3241/2 onto camshaft journal.
 Slide oil seal over guide sleeve.
All models
Fig. 195: Pressing In Gasket Up To Stop Using Thrust Sleeve 3241/1 And Bolt 3241/3
Courtesy of VOLKSWAGEN UNITED STATES, INC.
 Push in oil seal as far as it will go using thrust sleeve 3241/1. To do so, use bolt 3241/3.
 Install CMP sensor.
 Install top section of toothed belt guard.
 Install lock carrier --> Lock carrier, moving to service position.
Tightening torques
NOTE:
 Do not oil sealing lip of oil seal.
2005 Audi A4 Quattro
ENGINE 1.8 Liter 4-Cyl. 5V Turbo Engine Mechanical, Engine Code(s): AMB
1:01:04 AM Page 132
