Camshafts and camshaft adjuster, removing and installing
Special tools, testers and auxiliary items required
Counterhold 3036
Chain tensioner holder 3366
Removing
Cylinder head installed
Lock carrier in service position --> Lock carrier, moving to service position.
Remove toothed belt from camshaft sprocket --> Toothed drive belt, removing, installing and
tensioning.

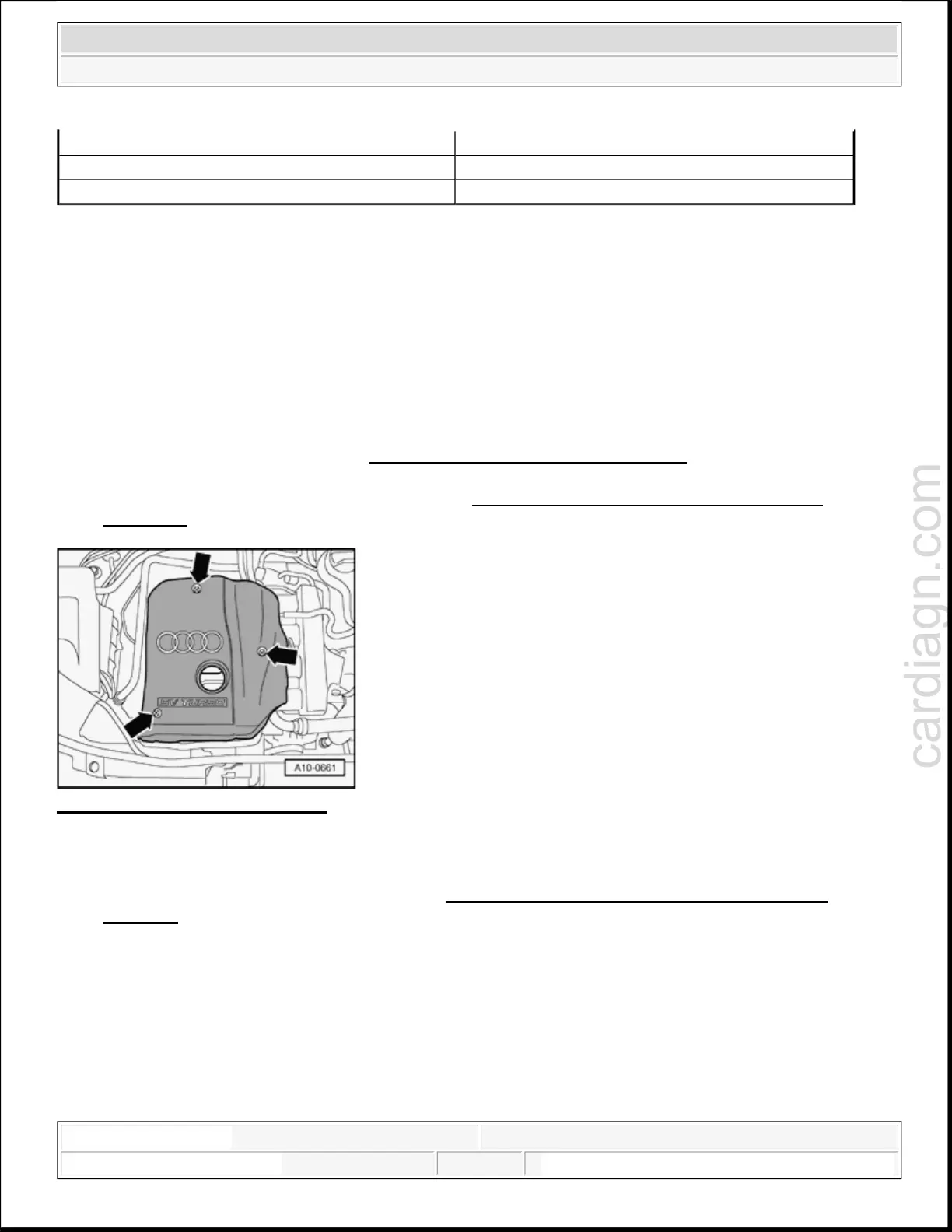

Fig. 196: Removing Engine Cover
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Remove engine cover - arrows -.
Remove secondary air combination valve --> Secondary air combination valve, removing and
installing.
Component Nm
CMP sensor rotor ring to camshaft 25
CMP sensor housing to cylinder head 10
2005 Audi A4 Quattro
ENGINE 1.8 Liter 4-Cyl. 5V Turbo Engine Mechanical, Engine Code(s): AMB
