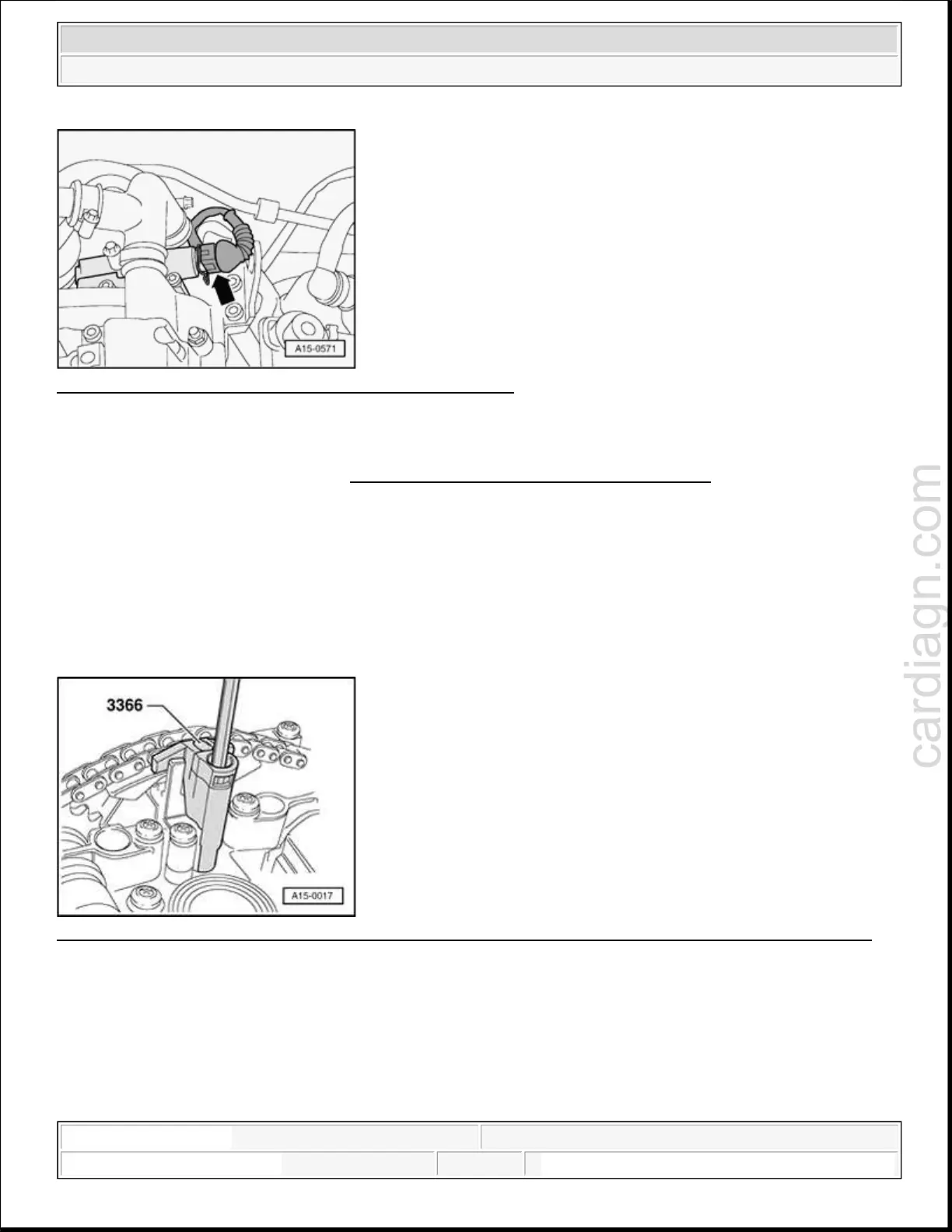

Fig. 197: Disconnecting Connector At Camshaft Adjuster
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Disconnect connector - arrow - at camshaft adjuster.
Remove cylinder head cover --> Cylinder head cover, removing and installing.
Loosen camshaft sprocket (counterhold with 3036 ).
Pull off camshaft sprocket.
Remove entire camshaft position sensor.
Fig. 198: Securing Camshaft Adjuster Or Chain Tensioner Using Bracket For Chain Adjustment 3366
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Secure camshaft ad
uster with chain tensioner holder 3366.
NOTE:
Excessive tightening of chain tensioner holder can damage camshaft
adjuster.
2005 Audi A4 Quattro
ENGINE 1.8 Liter 4-Cyl. 5V Turbo Engine Mechanical, Engine Code(s): AMB
1:01:05 AM Page 134
