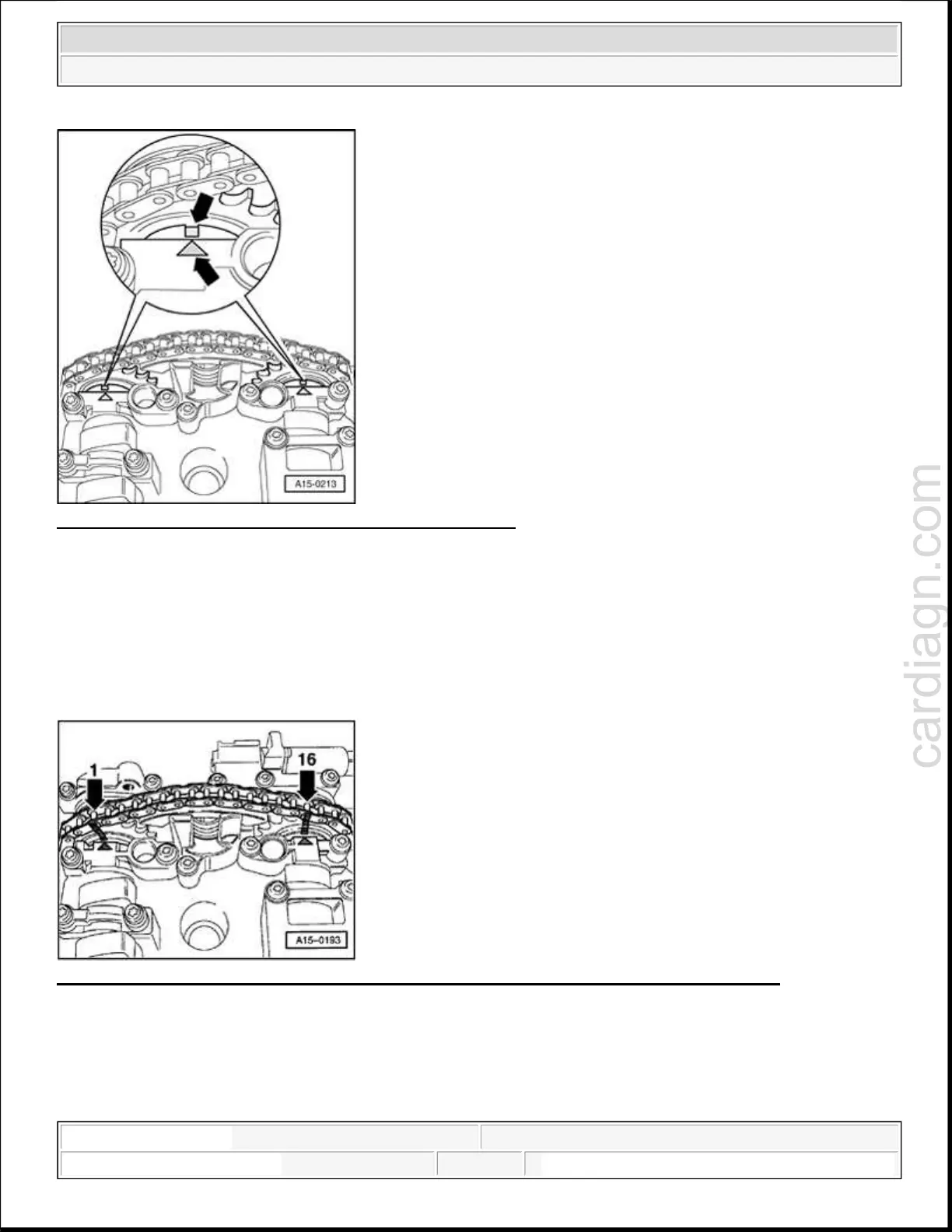

Fig. 199: Checking Position Of Camshafts To Each Other
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Re-check TDC position of camshafts:
Mark on two camshafts must be in line with - arrows - on bearing caps.
Clean chain and camshaft sprockets opposite two - arrows - on bearing caps and mark installed position
using colored markings.
Fig. 200: Checking Distance Between Markings Consists Of 16 Rollers Of The Drive Chain
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Eistance between two - arrows - or between colored markings is 16 rollers on drive chain.
Notch on exhaust camshaft is offset slightly toward inside in relation to chain roller - 1 -.
NOTE:
2005 Audi A4 Quattro
ENGINE 1.8 Liter 4-Cyl. 5V Turbo Engine Mechanical, Engine Code(s): AMB
