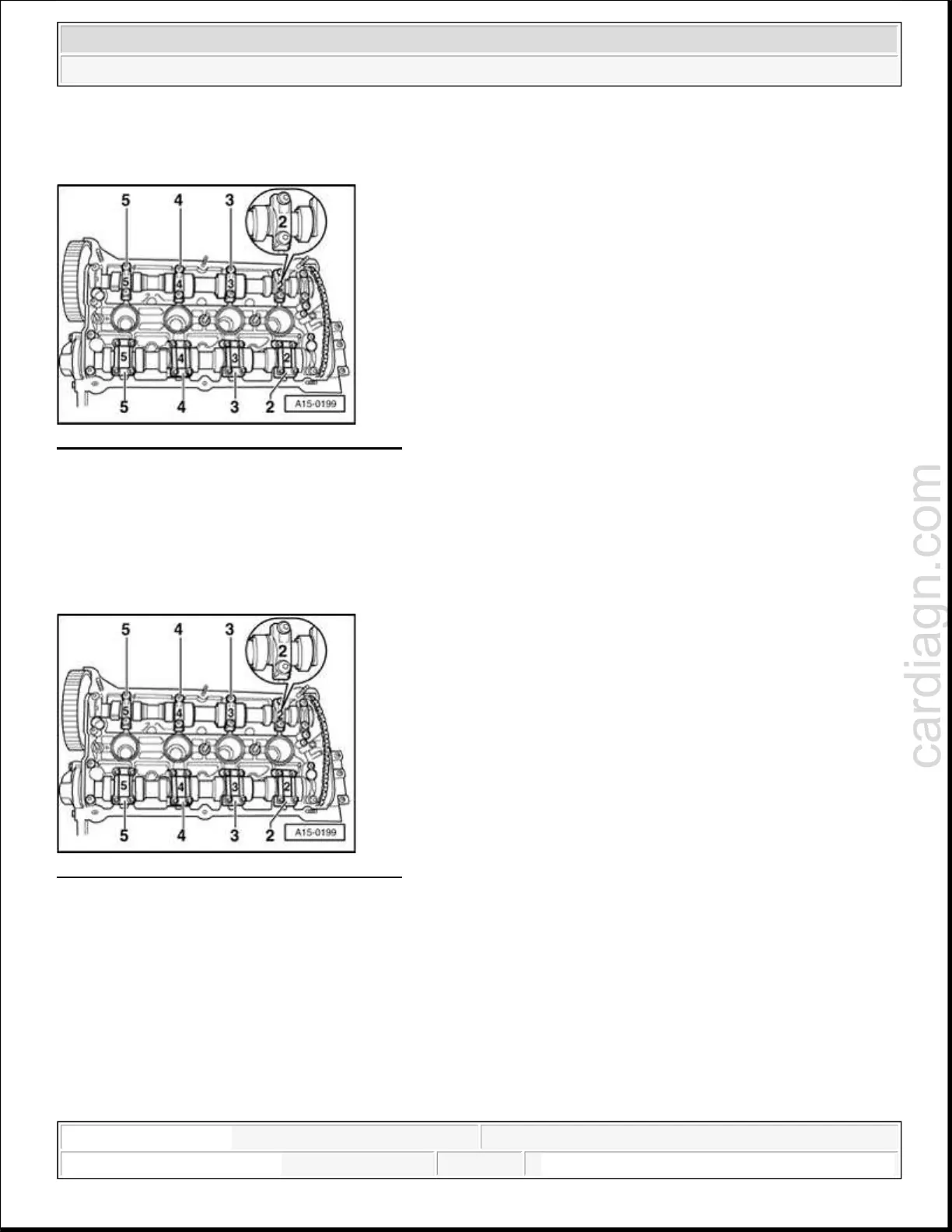

Fig. 201: Identifying Bearing Cap Positions
Courtesy of VOLKSWAGEN UNITED STATES, INC.
First remove bearing caps 3 and 5 on intake and exhaust camshafts.
Remove double bearing cap.
Remove both bearing caps on intake and exhaust camshaft chain sprockets.
Remove bolts securing camshaft adjuster.
Fig. 202: Identifying Bearing Cap Positions
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Loosen bearing caps 2 and 4 of intake and exhaust camshafts alternately in diagonal sequence and
remove.
Remove intake and exhaust camshafts together with camshaft adjuster.
Installing
Do not mark chain with a center punch or by making a notch, etc.
