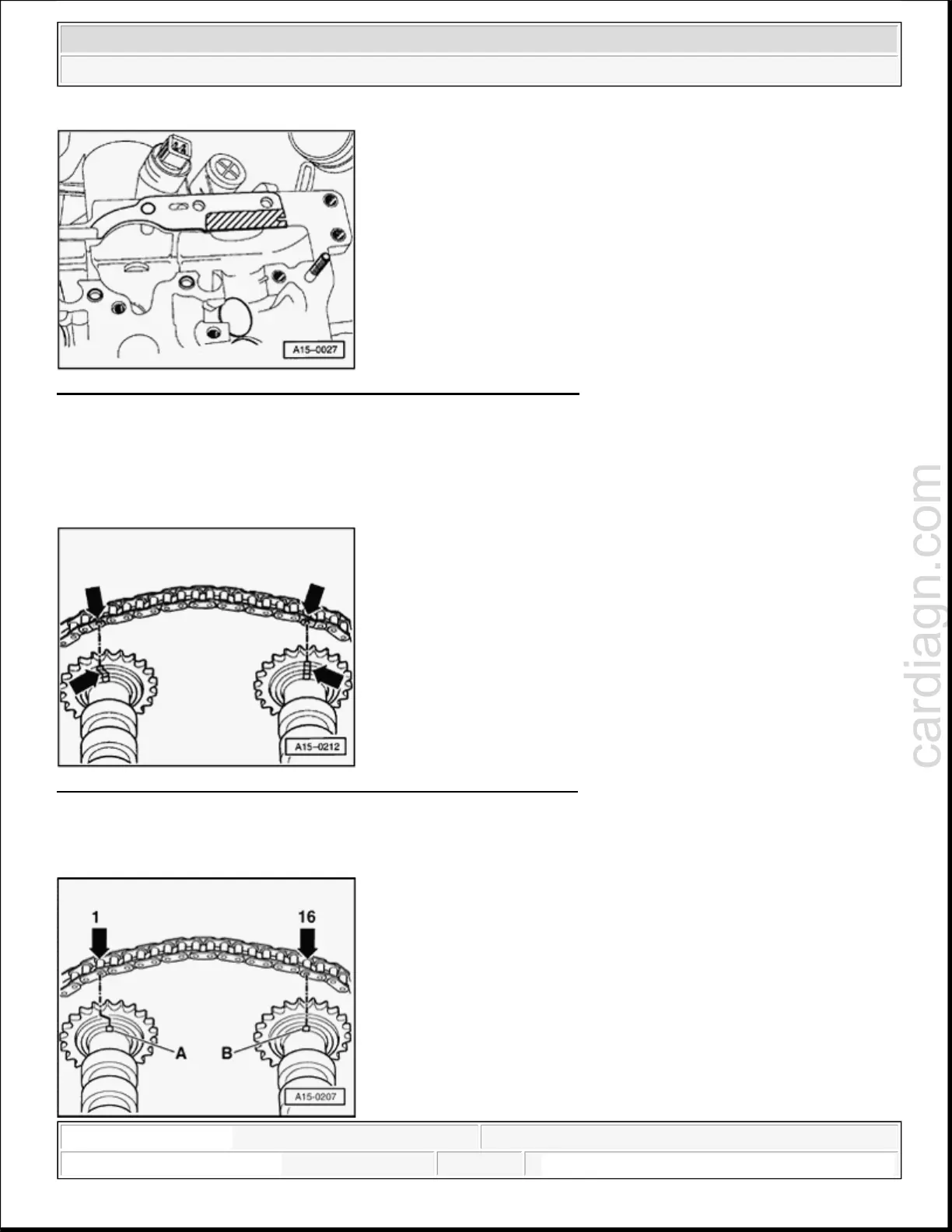

Fig. 203: Sealant Application Area Identified By Hatched Surface
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Replace rubber/metal gasket for camshaft adjuster and apply a thin coat of sealant AMV 188 001 02 to
shaded areas.
Install drive chain on camshaft sprockets as follows:
Fig. 204: Installing Chain So That Colored Markings Are In Line
Courtesy of VOLKSWAGEN UNITED STATES, INC.
If old chain is re-installed, install chain so that colored markings are in line - arrows -.
2005 Audi A4 Quattro
ENGINE 1.8 Liter 4-Cyl. 5V Turbo Engine Mechanical, Engine Code(s): AMB
1:01:05 AM Page 137
