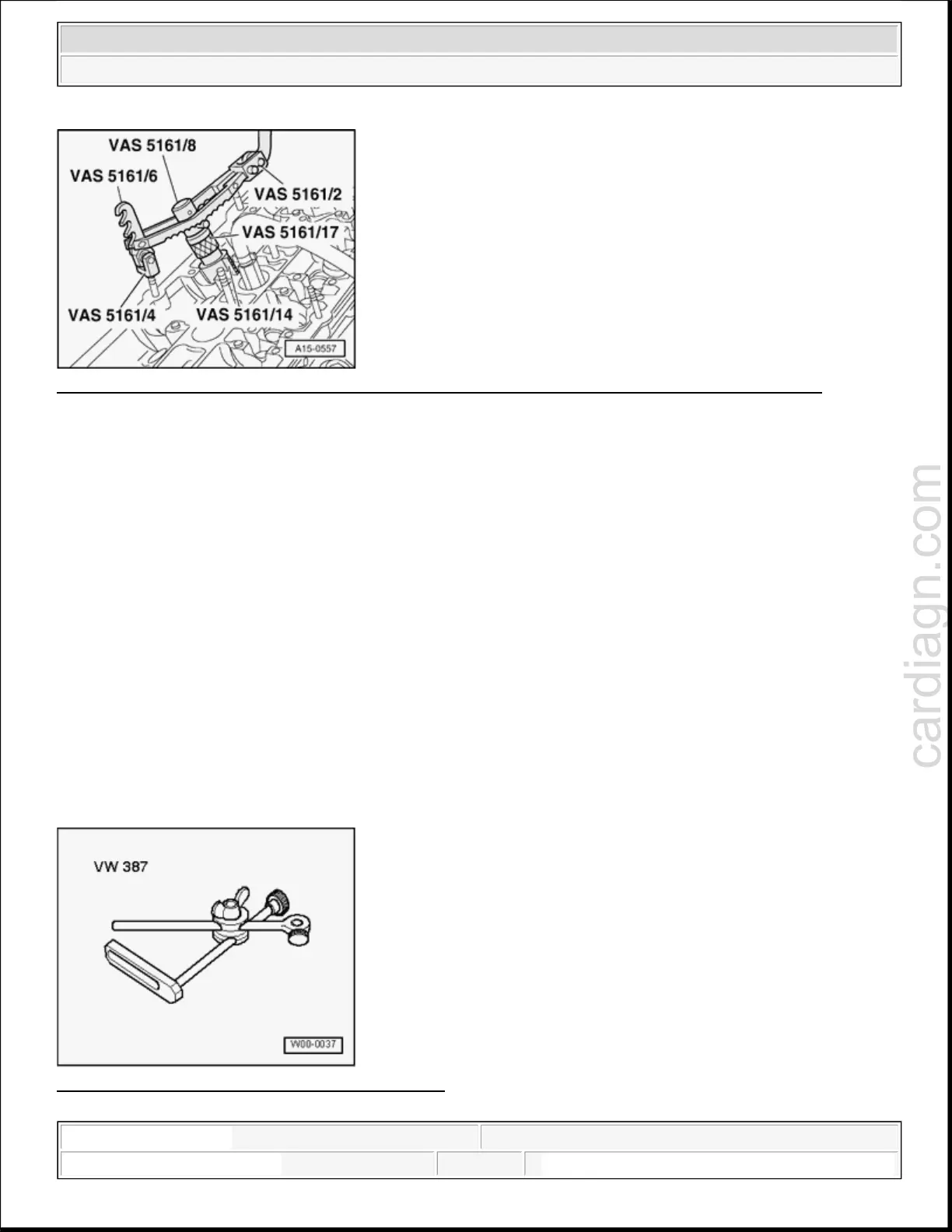

Fig. 222: Inserting Cartridge VAS5161/8 Back Into Guide Bushing VAS5161/13 Or VAS5161/14
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Insert cartridge VAS5161/8 back into guide bushing VAS5161/13 or VAS5161/14.
Push down pressure fork and pull knurled screw up turning left and right - this inserts valve keepers.
Release pressure fork with knurled screw still pulled upward.
Insert valve lifters.
Install camshafts and camshaft adjuster.
Valve guides, checking
Special tools, testers and auxiliary items required
Fig. 223: Identifying Dial Gauge Holder VW 387
Courtesy of VOLKSWAGEN UNITED STATES, INC.
NOTE:
After installing camshafts, engine must not be started for approx. 30
minutes. Hydraulic valve compensation elements have to settle (otherwise
valves will strike pistons).
After working on valve gear, turn engine carefully at least 2 rotations to
ensure that none of the valves make contact when starter is operated.
