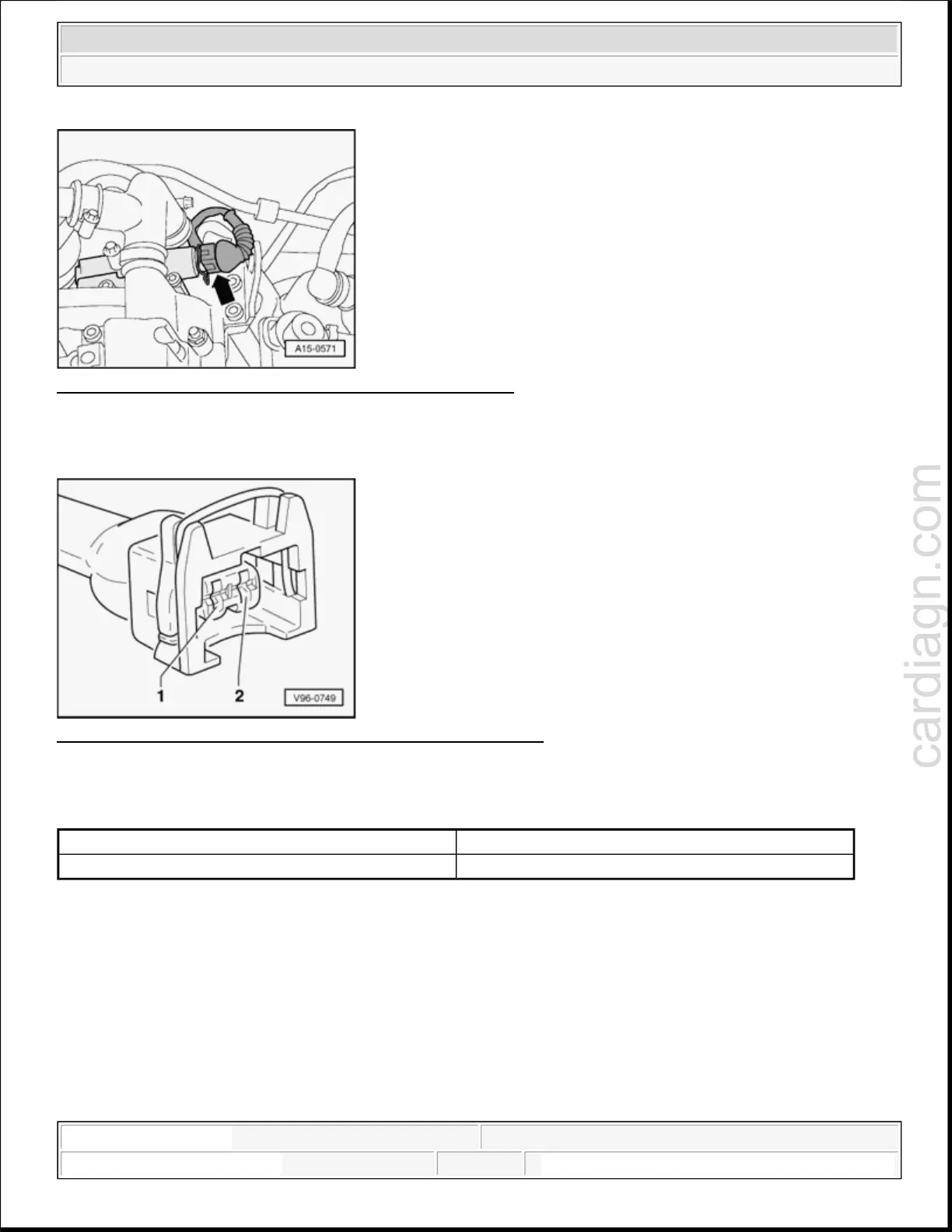

Fig. 230: Disconnecting Connector At Camshaft Adjuster
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Disconnect connector - arrow - at camshaft adjuster.
Fig. 231: Identifying 2-Pin Electrical Connector & Terminals
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Connect voltage tester VAG 1527B as follows:
Briefly operate starter.
LED must light up
If LED does not light up:
Check for open circuit in wiring from contact 1 of connector through fuse to fuel pump relay. -->
Electrical Wiring Diagrams, Troubleshooting and Component Locations
If necessar
, eliminate open circuit.
Connector contact Measure to
1 Engine Ground
2005 Audi A4 Quattro
ENGINE 1.8 Liter 4-Cyl. 5V Turbo Engine Mechanical, Engine Code(s): AMB
1:01:07 AM Page 156
