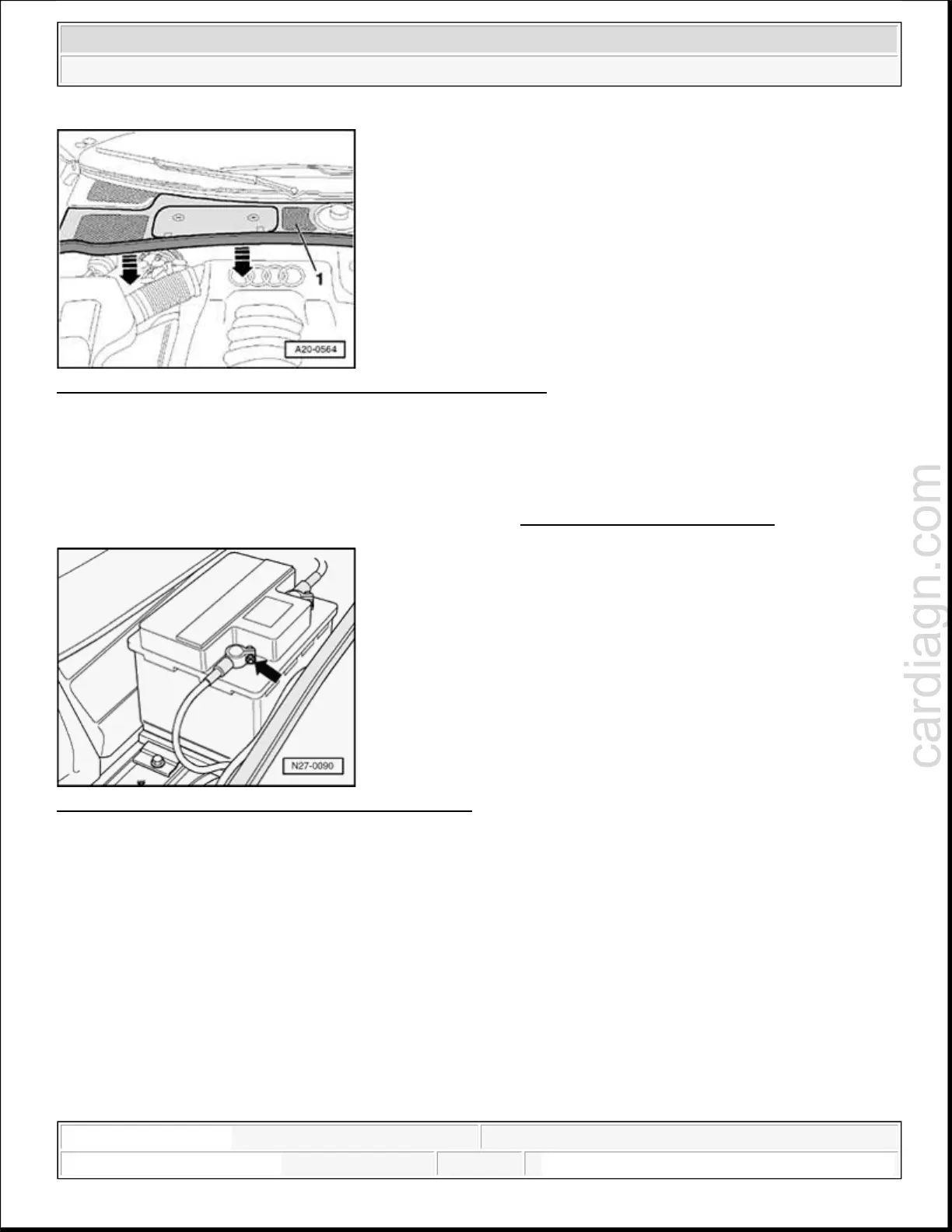

Fig. 4: Removing Rubber Seal From Plenum Chamber Cover
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Remove rubber seal from plenum chamber cover in direction of - arrow -.
Pull plenum chamber cover - 1 - toward front and remove.
See Caution before beginning repairs on electrical system --> Engine, removing and installing
Fig. 5: Identifying Battery Ground (GND) Terminal
Courtesy of VOLKSWAGEN UNITED STATES, INC.
With ignition switched off, disconnect battery Ground strap - arrow -.
Use screwdriver to pry off caps - 3 - from wiper arms.
2005 Audi A4 Quattro
ENGINE 1.8 Liter 4-Cyl. 5V Turbo Engine Mechanical, Engine Code(s): AMB
