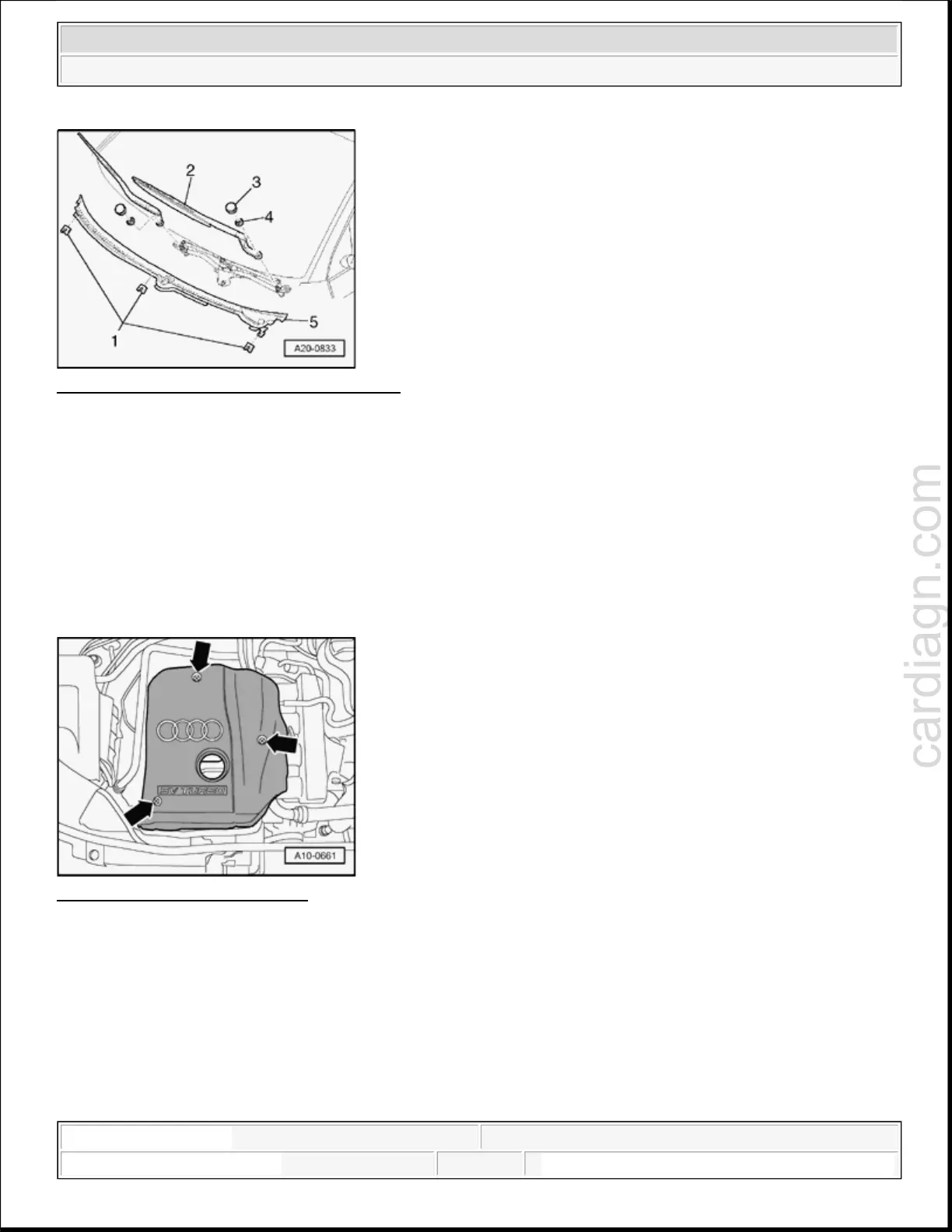

Fig. 6: Removing Securing Clips And Cowl
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Loosen hex nuts - 4 - by a few turns.
Tilt wiper arm - 2 - slightly to remove it from wiper shaft.
Remove hex nuts completely and remove wiper arms.
Pull off securing clips - 1 - and remove panel trim.
Fig. 7: Removing Engine Cover
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Remove engine cover - arrows -.
CAUTION: Hot steam can escape when cap on expansion tank is opened. Cover cap
with cloth and open carefully.
